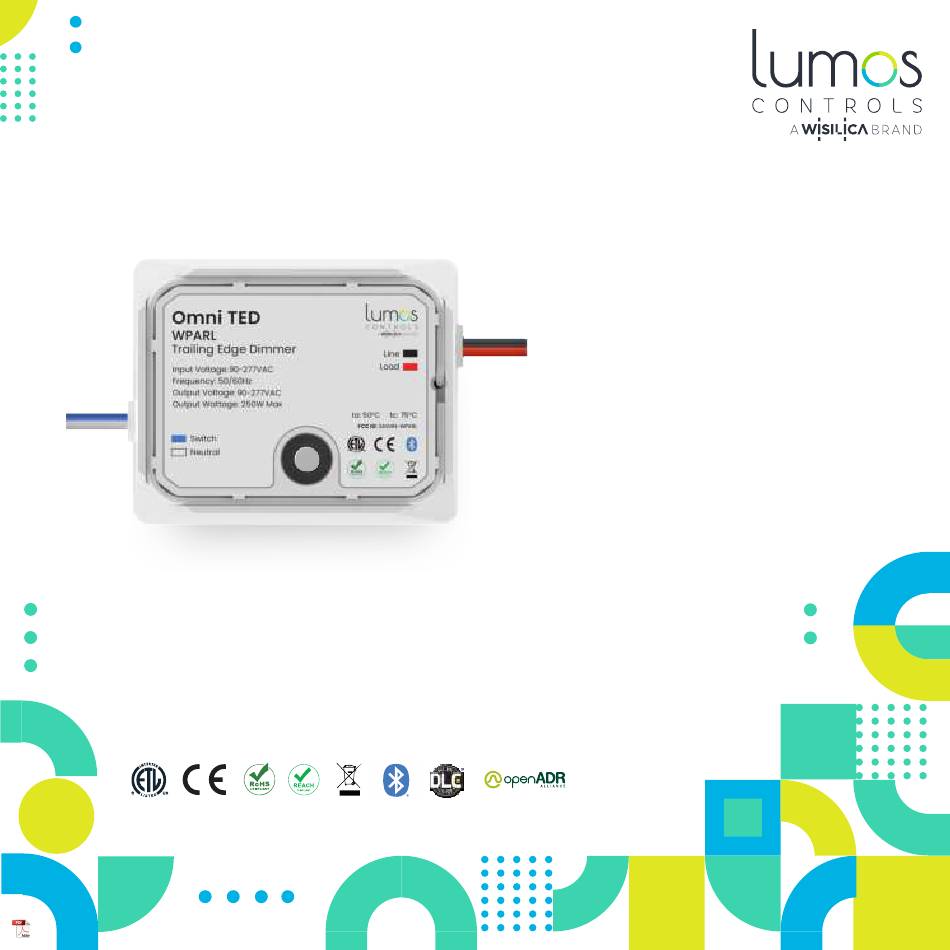

- Page 1 www.lumoscontrols.com Omni TED Trailing edge dimmer...
- Page 2 PRODUCT OVERVIEW FEATURES BLE5.2 based non-flooding intelligent communication Omni TED is a BLE5.2 controllable, trailing edge dimmer. It operates on 90-277VAC input voltage range and can work 1 channel output, up to 250W with single LED loads of up to 250W and has output to connect Supports resistive and capacitive loads a switch.
- Page 3 PRODUCT DIMENSIONS Omni TED top view: 45.1 x 35.1 x 20.2mm (1.7 x 1.4 x 0.8 in) (L x W x H) Case material: V0 flammability rated ABS plastic 0.8in (20.2mm) 1.4in(35.1mm) 1.7in(45.1mm) 9.8in(250mm) 9.8in(250mm) 0.39in(10mm) 0.39in(10mm)
- Page 4 Size comparison with a standard credit card 3.77in (85.6mm) 1.7in(45.1mm) 2.125in 1.4in (53.98mm) (35.1mm) WIRE DESCRIPTION Name Color Gauge Rating Description 18AWG To connect switch control Switch Blue 600V (0.75mm 18AWG Common neutral Neutral 600V White (0.75mm Load 18AWG 600V For load (0.75mm Line...
- Page 5 WIRING 1. Controlling Omni Ted using Lumos Controls app 90-277VAC Note Total number of Drivers that can be used will Line depend on the input Omni TED rating of the Driver Load Switch Neutral TRIAC Driver Line LED + Neutral LED - TRIAC Driver Line...
- Page 6 SMART Omni TED Control Device ECOSYSTEM Internet Connectivity Sensor Mesh Network Gateway Switch 45m(147.6ft) is the device to device communication distance ideally with clear LoS Certifications Details (in progress) Article 3, RED 2014/53/EU EMC test standards Safety test standard Radio test standard Health test standard RoHS Directive (EU) 2015/863 amending Annex II to Directive 2011/65/EU RoHS 2.0...
- Page 7 Up to 250W The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by WiSilica Inc. is under license. Other trademarks and trade names are those of their respective owners.
- Page 8 FCC Caut i on: Thi s devi ce com pl i es wi t h par t 15 of t he FCC Rul es. Oper at i on i s subj ect t o t he f ol l owi ng t wo condi t i ons: ( 1) t hi s devi ce m ay not cause har m f ul i nt er f er ence, and ( 2) t hi s devi ce m ust accept any i nt er f er ence r ecei ved, i ncl udi ng i nt er f er ence t hat m ay cause undesi r ed oper at i on.
