NTRIP-X

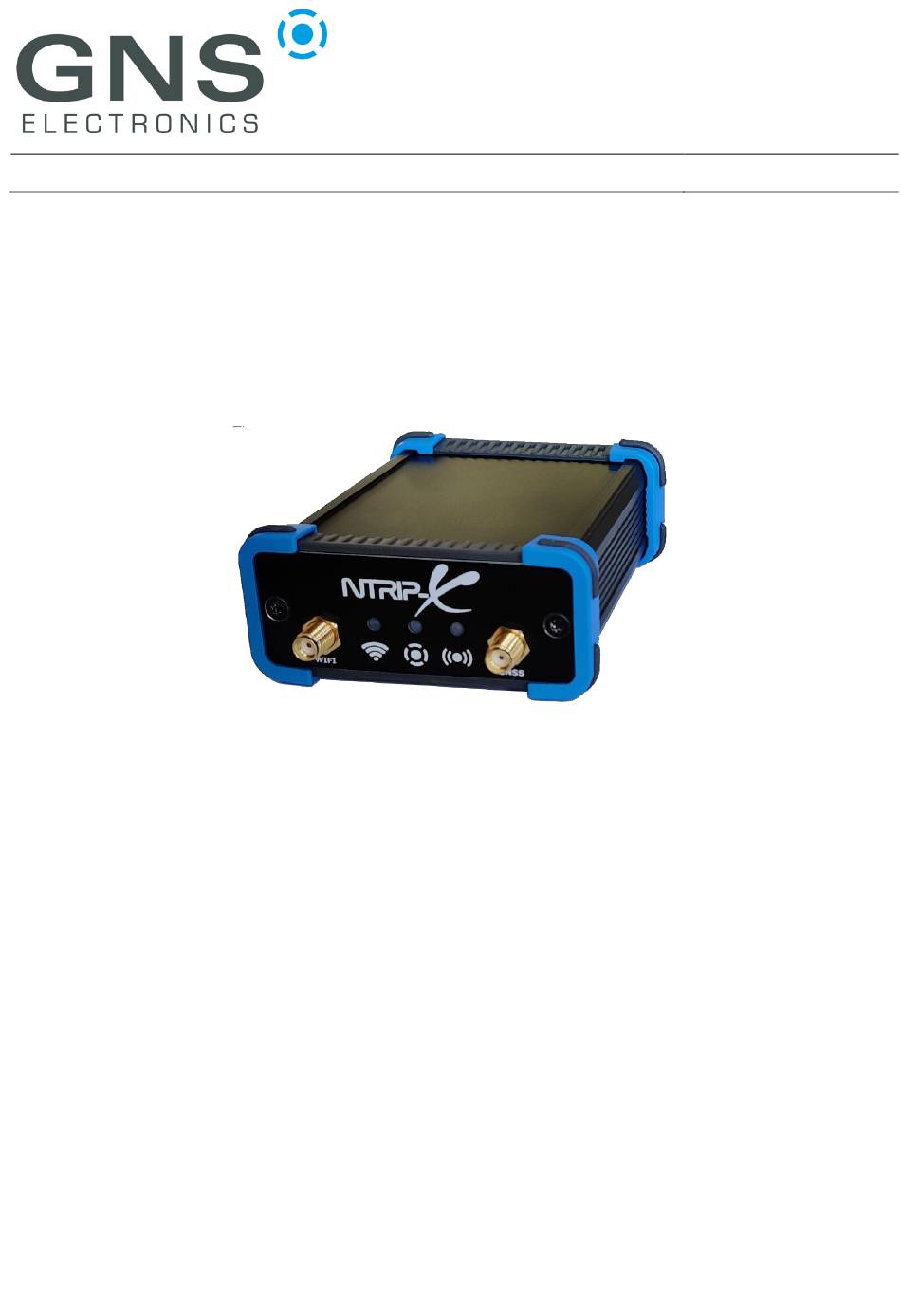

NTRIP-X is a multi-band, multi-constellation GNSS RTK base-station with built-in NTRIP Client and
Wi-Fi connectivity. The base station supports GPS L1/2/5, GLONASS L1/2, Galileo E1/5a/5b and
BDS
B1I/2I/3I simultaneously.
This quick guide provides a brief overview of the user interface and helps setting up the device for
the first time.
NTRIP-X Features
• Ultra high precision GNSS RTK engine
• GPS L1 + L2 + L5
•
GLONASS L1 + L2
•
Galileo E1 + E5a + E5b
• BeiDou (BDS) B1I +
• All constellations and all bands simultaneously
• NTRIP client using NTRIP protocol v1 & v2 (auto select)
• RTCM protocol v3
• Wi-Fi Station and Access Point 2.4 GHz with WPS
INTRODUCTION
NTRIP-X GNSS RTK Base-Station
B2I + B3I
Quick guide
V 1.0, 2023-03-21
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GNS NTRIP-X
Summary of Contents for GNS NTRIP-X
- Page 1 NTRIP-X Quick guide INTRODUCTION NTRIP-X is a multi-band, multi-constellation GNSS RTK base-station with built-in NTRIP Client and Wi-Fi connectivity. The base station supports GPS L1/2/5, GLONASS L1/2, Galileo E1/5a/5b and B1I/2I/3I simultaneously. NTRIP-X GNSS RTK Base-Station This quick guide provides a brief overview of the user interface and helps setting up the device for the first time.
- Page 2 2 Setting up the device ......................4 Using alternative antennas .................... 4 3 Configuration ........................5 Factory Reset ......................5 Connecting the NTRIP-X to a Wi-Fi network ..............5 3.2.1 Using WPS to connect to a Wi-Fi network ..............5 3.2.2 Using the internal Wi-Fi Access Point to connect to a Wi-Fi network ......
- Page 3 (RGB) Wi-Fi LED (green) The Wi-Fi LED lights up whenever the NTRIP-X device is connected to an access point. Its intensity varies with the reception quality and can be used to find the optimum position for the Wi-Fi antenna, just place it where the LED shines brightest.
- Page 4 Several blink codes white/red 2 Setting up the device The delivery includes the NTRIP-X device, a 2.4 GHz Wi-Fi antenna, and a multi-band GNSS antenna with 5m antenna cable. An additional USB-C power supply with at least 2 A current rating is needed.
- Page 5 Wi-Fi access point (AP) or router. Factory Reset When the NTRIP-X has never been configured, the Status LED will blink white every 2 seconds. If any other colors are displayed in the blink cycle, the device should be factory reset before connecting it to a new network.
- Page 6 3.2.2 Using the internal Wi-Fi Access Point to connect to a Wi-Fi network Make sure that the NTRIP-X is not yet configured (status LED blinks slowly only white). Otherwise execute a factory reset as described in §2.1. Using a smartphone, tablet or notebook, scan for available Wi-Fi networks and connect to the one named NTRIP-XXXX (where XXXX is a unique number).
- Page 7 AP will remain active to allow re-configuration in case the supplied SSID/password is wrong. To disable the AP, log into the NTRIP-X under its new IP address and disable the module by clicking on the switch located in the upper right corner of the WiFi hotspot configuration: The ‘Submit’...
- Page 8 Initial creation V1.0 2023-03-21 C. Diehl Release © GNS ELECTRONICS G H 2023 THE INFORMATION IN THIS DOCUMENTATION DOES NOT FORM ANY QUOTATION OR CONTRACT TECHNICAL DATA ARE DUE TO BE CHANGED WITHOUT NOTICE TECHNICAL RECOMMENDATIONS ARE JUST FOR REFERENCE...
