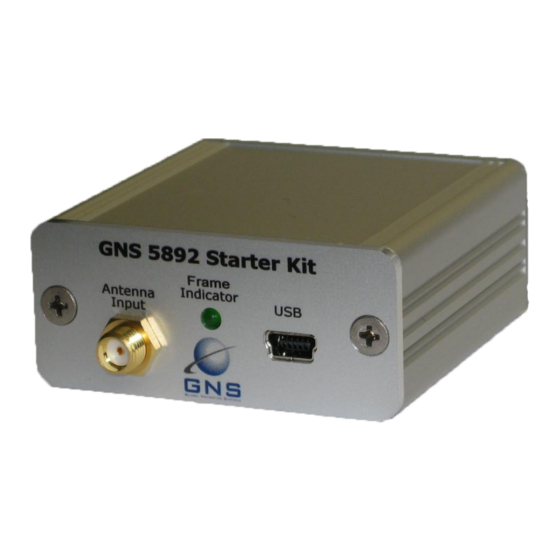

The GNS 5892 Starter Kit has been designed to support developers during
design-in of the GNS 5892 ADS-B receiver solution.
The examples are shown as block diagrams to explain the approaches.
GNS Global Navigation Systems GmbH
Adenauerstrasse 18
D – 52146 Würselen
Germany
www.gns-gmbh.com
info@gns-gmbh.com
1
© GNS-GmbH 2012
V 0.10, Feb. 28
th
2013
Arrow.com.
Downloaded from
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GNS 5892 StarterKit
Summary of Contents for GNS 5892 StarterKit
- Page 1 The GNS 5892 Starter Kit has been designed to support developers during design-in of the GNS 5892 ADS-B receiver solution. The examples are shown as block diagrams to explain the approaches. GNS Global Navigation Systems GmbH Adenauerstrasse 18 D –...
-
Page 2: Introduction
Introduction This manual shows, how to connect the GNS 5892 Starter Kit to a PC in order to verify GNS 5892 module performance and test supported features. For technical specification, please refer to the GNS 5892 datasheet. -
Page 3: Table Of Contents
Index Introduction ..........................2 1 Description of the GNS 5892 StarterKit Hardware ..............4 2 GNS 5892 StarterKit Board Layout ..................5 3 GNS 5892 StarterKit Board Block Diagram ................7 Getting started …......................7 4 GNS 5892 StarterKit Hardware ................... 11 Assembly Drawing Top Side .................. -
Page 4: Description Of The Gns 5892 Starterkit Hardware
1 Description of the GNS 5892 StarterKit Hardware FEATURES Small evaluation board designed for verification of GNS 5892 module ADS-B performance Small evaluation board designed for easy implementation to MCU controlled applications ADS-B frame LED indicator PC connection via USB... -
Page 5: Gns 5892 Starterkit Board Layout
GNS 5892 StarterKit manual confidential information manual 2 GNS 5892 StarterKit Board Layout Jumper1 UART H/W handshake jumper Multi-pin connector alternatively allows direct connection with a host MCU. (USB to serial interface disabled) Jumper2 disables USB interface USB to serial... - Page 6 Notes Because of the high data rate hardware handshake is needed to prevent data overflow. GNS 5892 signals the host with its CTS signal that he is ready to receive data. GNS 5892 examines the receptivity of the host with RTS If hardware handshake is not supported by the host the RTS signal must be activated externally.
-
Page 7: Gns 5892 Starterkit Board Block Diagram
3. Copy the two files from the \Driver folder to a PC folder of your choice. 4. GNS 5892 StarterKit will be connected to the PC via a virtual COM-Port with USB. This conversion is performed by an onboard chip. - Page 8 GNS 5892 StarterKit manual confidential information manual 8. Assign the virtual COM-Port number by executing “Windows Start Button” and select “Control panel”. 9. Select “system”. © GNS-GmbH 2012 V 0.10, Feb. 28 2013 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
- Page 9 GNS 5892 StarterKit manual confidential information manual 10. Choose “Hardware” tab and select “Device Manager”. 11. Select “Ports (COM&LPT)” and notice the “USB Serial Port” number. © GNS-GmbH 2012 V 0.10, Feb. 28 2013 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
- Page 10 12. Start your preferred ADS-B-Viewer software (for example: adsbscope, free ADS-B tool, Link: http://www.sprut.de ) to visualize the ADS-B-protocol data and connect COM-Port using the default data rate of the GNS 5892 module of “921600 Baud”. 13. Select Com-Port (see pt.11) and connect.
-
Page 11: Gns 5892 Starterkit Hardware
GNS 5892 StarterKit manual confidential information manual 4 GNS 5892 StarterKit Hardware Assembly Drawing Top Side © GNS-GmbH 2012 V 0.10, Feb. 28 2013 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from... -
Page 12: Gns 5892 Starterkit Schematic
GNS 5892 StarterKit manual confidential information manual GNS 5892 StarterKit Schematic © GNS-GmbH 2012 V 0.10, Feb. 28 2013 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from... -
Page 13: Gns 5892 Starterkit Bill Of Material
GNS 5892 StarterKit manual confidential information manual GNS 5892 StarterKit Bill Of Material device value, type board reference Connector/Jumper PINHD-1X8 Connector/Jumper PINHD-1X2 MiniUSB connector MiniUSB connector CON1 SMA connector SMA connector CON2 Resistor Resistor R1, R2 Resistor Resistor Resistor R5, R6... -
Page 14: Pcb Layout Top/Bottom Layer
GNS 5892 StarterKit manual confidential information manual PCB Layout TOP/BOTTOM Layer TOP Layer BOTTOM Layer © GNS-GmbH 2012 V 0.10, Feb. 28 2013 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from... -
Page 15: Ordering Information
This product is free of environmental hazardous substances and complies to 2002/95/EC. (RoHS directive). 7 RELATED DOCUMENTS Type description Available from GNS 5892 data sheet Data sheet for GNS 5892 receiver http://www.forum.gns-gmbh.com 8 DOCUMENT REVISION HISTORY V0.09 12/05/2012 M.Heinzel initial document V0.1...
