Summary of Contents for KAKA Industrial F1.2X710

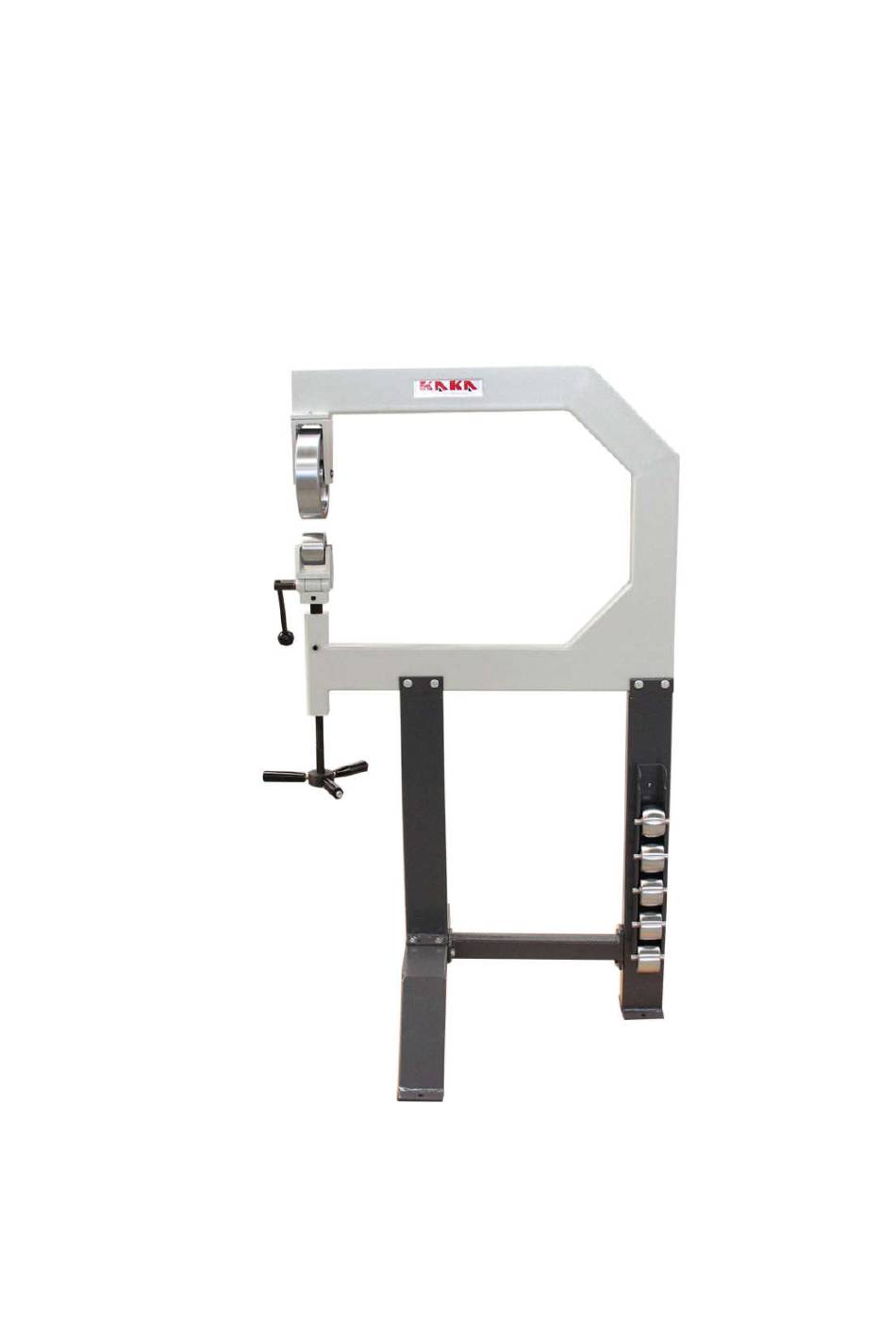

- Page 1 ENGLISH WHEEL Model：F1.2X710 Assembly and Operating Instructions...
- Page 2 DESCRIPTION English Wheel is hand operated and will form sheet metal up to 1.2mm thickness mile steel (or equivalent). The English wheel is constructed of cast iron and steel ensuring minimum deflection of the workpiece during forming operations. SAVE THIS MANUAL You will need this manual for the safety instructions, operating procedures.
- Page 3 10.REPLACEMENT PARTS AND ACCESSORIES. When servicing, use only identical replacement parts. Only use accessories intended for use with this tool. 11.DO NOT OPERATE TOOL IF UNDER THE INFLUENCE OF ALCOHOL OR DRUGS. Read warning labels on prescriptions to determine if your judgment or reflexes are impaired while taking drugs.
- Page 4 5. The shaft 16# are put into the upper frame 1 # from the upper hole and then fixed by guilding bolt 31# and nuts 32# to make the shaft 16# can not be rotary but can sliding up and down. Inserted adjustable threaded shaft 17 # to the upper frame 1# from the lower hole and connected with the flat key 19# and handle seat , then fixed by washer 20# and bolt 21#.
- Page 5 ASSEMBLY DRAWING - 5 -...
- Page 6 PARTS LIST Part No. Description Remark Main frame Upper wheel shaft Bracket for upper wheel Cover Upper wheel Bearing Washer Flat washer Hex. Bolt 2” Lower wheel Oil cup Lower wheel bearing Bracket for lower wheel Handle Handle ball Adjustable shaft Adjustable threaded shaft Handle Flat key...
