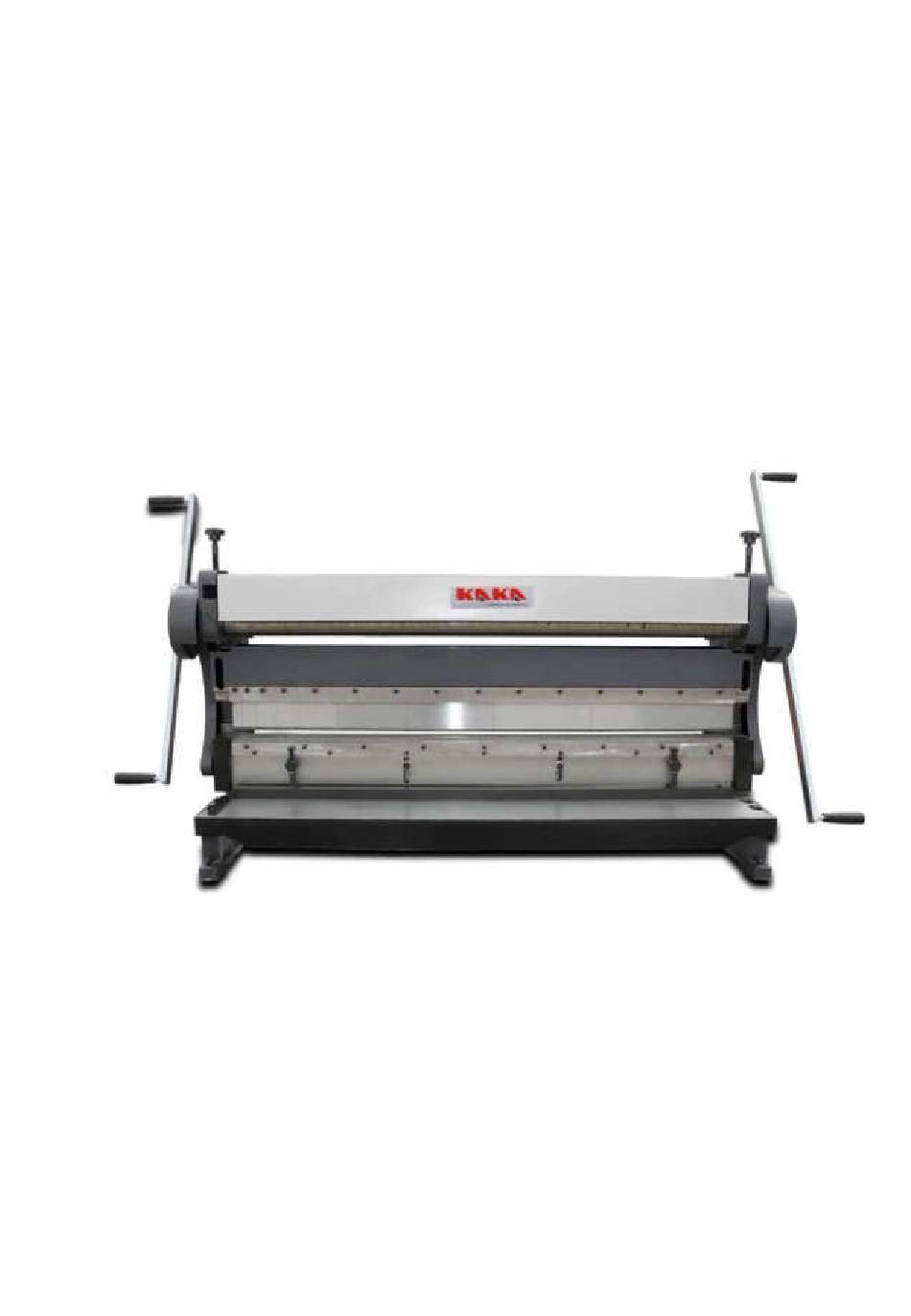

- Page 1 SHEARER/PRESS BRAKE/ SLIP ROLL Model: 3-IN-1/5216 (3-IN-1/1320x1.5、3-IN-1/1067x1.5) OPERATION MANUAL...
- Page 2 1. USES This machine is used for shearing and bending low carbon plate (mild steel) or the other metal materials which have the same intensity as the low carbon plate, but the maximum thickness is 1.5 mm. It can also be used for rolling the low carbon plate (mild steel) or the other metal materials which has the same intensity as the low carbon plate, its maximum thickness is 1.5 mm.
- Page 3 plate, screw a 2-M12 nut into the positioning plate, then follow the bar which is fixed by the nut in the end. In these two kinds of position, the circular adjustable knob is installed at the back of angle iron. 2.6 Adjustment of the braking installation 2.6.1 Adjustment of the upper die: Loosen the screw bolt, the upper die will come off the machine.
- Page 4 should adjust the central screw that behind the positioning plate. If the adjustment was not suitable, the metal plate will be folded in the middle of the two cutters when shearing is executed. If the lower cutter and upper cutter still press close together after the adjustment, two parts must be examined: First, fasten screw of the lower cutter, to guarantee you can fully tighten the cutter up, then loosen the screw about 1/8 circle.
- Page 5 4. 3-in-1/5216 (1320x1.5) TECHNICAL SPECIFICATIONS Ordinal Function parameter 3-in-1/5216 combination of shear, number brake and roll Effective width 1320mm Maximum shearing thickness 1.5mm low carbon plate Maximum braking thickness 1.5mm low carbon plate Maximum rolling thickness 1.5mm low carbon plate Minimum internal diameter of the roll ф60mm...
- Page 6 Copper Sheath Long Handle Protect Cover Small Gear Wheel Transmission Shaft Bolt Shaft 3 Bolt Shaft 2 Handle Bolt Shaft 1 Hexagon screws Connect Pipe Hexagon screws Sheath Flat key Press Shaft Flat key Limiting Bar Flat key Shaft Bolt Spring Bolt Long Screw...
- Page 7 ASSEMBLY DIAGRAM Note: This manual is only for your reference. Owing to continuous improvement of the machines, Changes may be made at any time without obligation on notice.
