Summary of Contents for DIAQUIP QHS-350

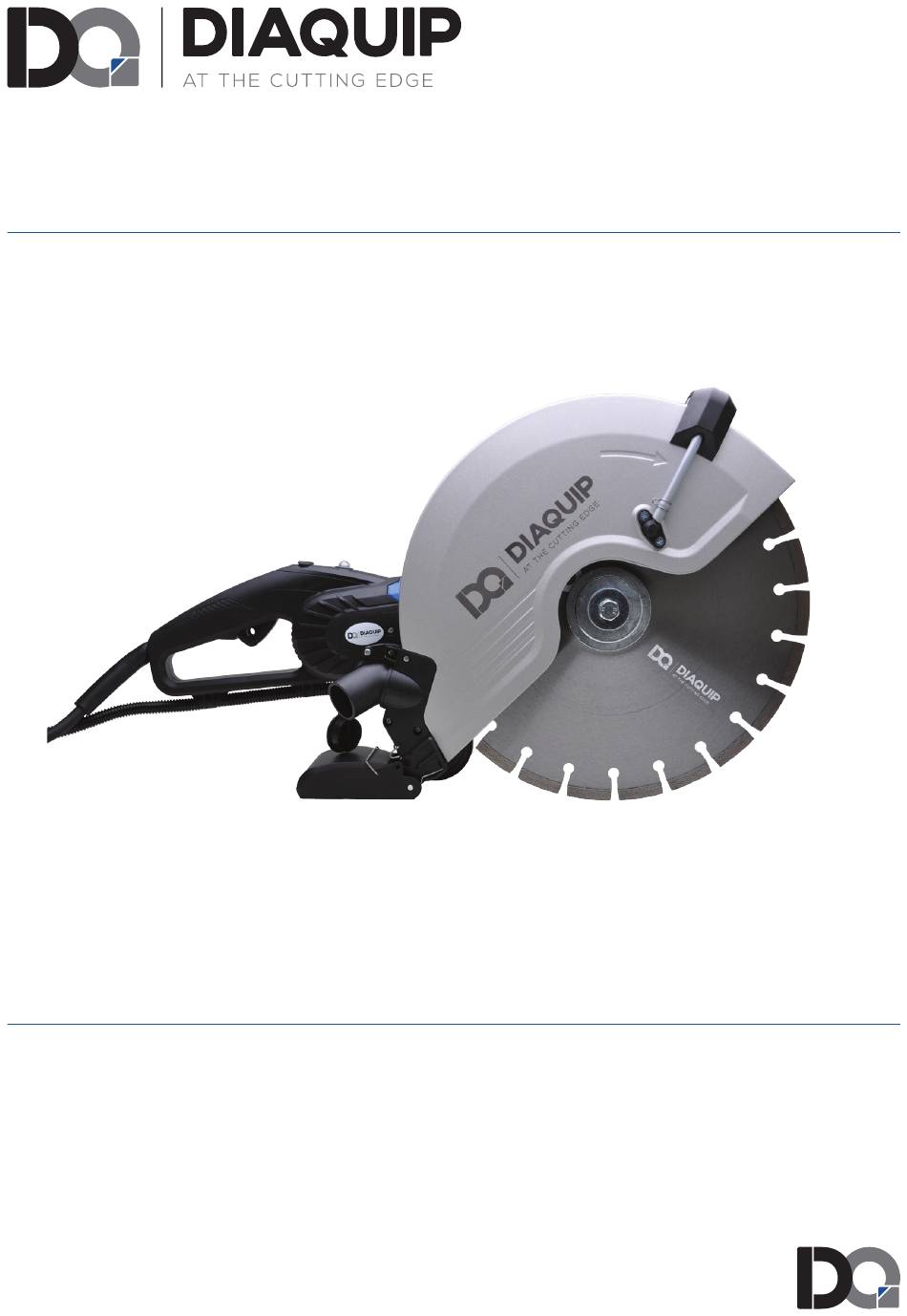

- Page 1 OPERATORS MANUAL QHS-350 ELECTRIC HANDSAW...
-
Page 2: Technical Data
Release Button Main Handle Water Feed Valve Trigger Switch Arbor Lock Button Brush Cover Side Handle Butterfly Bolt Guide Roller Assembly Arbor Bolt Blade Guard Female Clip Vacuum Port Male Clip Blade Guard Brush Diamond Blade Outer Flange Splash Guard WWW.DIAQUIP.CO.UK... -
Page 3: General Safety Instructions
Use of a cord suitable for outdoor use reduces the risk of electric shock. f. If operating a power tool in a damp location is unavoidable, use a PRCD or ground fault circuit interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of electric shock. WWW.DIAQUIP.CO.UK... - Page 4 Loose clothes, jewellery or long hair can be caught in moving parts. g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. WWW.DIAQUIP.CO.UK...
- Page 5 Use the power tool, accessories and tool bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. WWW.DIAQUIP.CO.UK...
- Page 6 ..Always wear eye protection ..Always wear a dust mask..Always wear hearing protection ..Wear safety-approved hard hat ..DANGER! Keep hands away from cutting area and the blade. Do not dispose of electric tools, accessories and packaging together with household waste material WWW.DIAQUIP.CO.UK...
- Page 7 After inspecting and installing the wheel, position yourself and bystanders away from the plane of the rotating wheel and run the power tool at maximum no load speed for one minute. Damaged wheels will normally break apart during this test time. WWW.DIAQUIP.CO.UK...
- Page 8 Regularly clean the power tool’s air vents. The motor’s fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards. p. Do not operate the power tool near flammable materials. Sparks could ignite these materials. WWW.DIAQUIP.CO.UK...
- Page 9 Do not “jam” the wheel or apply excessive pressure. Do not attempt to make an excessive depth of cut. Overstressing the wheel increases the loading and susceptibility to twisting or binding of the wheel in the cut and the possibility of kickback or wheel breakage. WWW.DIAQUIP.CO.UK...
- Page 10 Supports must be placed under the workpiece near the line of cut and near the edge of the workpiece on both sides of the wheel. j. Use extra caution when making a “pocket cut” into existing walls or other blind areas. The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback. WWW.DIAQUIP.CO.UK...
- Page 11 TABL E A – REQ UI R ED G AU G ES FO R E XT EN SIO N CO R D S Volts Total length of cord in feet Ampere Rating 110-120 25(8m) 50(15m) 100(30m) 150(50m) 220-240 50(15m) 100(30m) 150(50m) 300(100m) More Than Not More Than Minimum gauge for cord (AWG) 14(2.5mm 12(4.0mm Not Recommended WWW.DIAQUIP.CO.UK...
-
Page 12: Grounding Instructions
Use only 3-wire extension cords that have 3-prong grounding plugs and 3 pole receptacles that accept the tool’s plug. Repair or replace damaged or worn cord immediately. WWW.DIAQUIP.CO.UK... - Page 13 Grounding Pin Pin Socket Diaquip Standard 110V Plug and extension socket with integrated grounding pin Note: In Canada, the use of a temporary adapter is not permitted by the Canadian Electrical Code. WWW.DIAQUIP.CO.UK...
-
Page 14: Electrical Connection
It has an integrated water feed system as required for diamond cutting. It must only be used with a diamond blade. It is intended for cutting masonry, stone, concrete, reinforced concrete and similar materials. All other uses are prohibited. WWW.DIAQUIP.CO.UK... - Page 15 Mount the blade. ( See below “Mounting the Blade”) Mount the Guide Roller Assembly if desired ( See below “Guide Roller Assembly”) Mount the blade guard brush (See below “Blade Guard Brush” for assembly instructions) Mount the splash guard (See below “Splash Guard” for assembly instructions) WWW.DIAQUIP.CO.UK...
-
Page 16: Diamond Blades
A damaged blade can cause irregular conditions, this can cause imbalance and result in a hazard. Always inspect new blades for storage or transport damage. WWW.DIAQUIP.CO.UK... - Page 17 (the diamonds not exposed) and the blade becomes dull (diamond segments polish smooth). This is called glazing and luckily the blade can be de-glazed (sharpened). If the blade seems to refuse to cut anymore, you know that it is glazed. WWW.DIAQUIP.CO.UK...
-
Page 18: Sharpening A Glazed Blade
“glazed”. Once the diamond segments are glazed, the blade’s cutting performance will degrade and the segments will overheat. To resharpen the blade, turn down the water feed and make a few cuts in a very soft, abrasive material such as brick. WWW.DIAQUIP.CO.UK... -
Page 19: Mounting The Blade
Add the arbor bolt and tighten to 15-25 Nm. WARNING: Do not attempt to mount a blade which does not match the mounting hardware. It will lead to eccentric running and vibration which will be uncontrollable. WWW.DIAQUIP.CO.UK... -
Page 20: Adjusting The Blade Guard
If the splash guard is not needed, such as when cutting dry, it may be clipped up out of the way. Simply engage the male clip on the flap with the female clip on the mount. Unclip to release. WWW.DIAQUIP.CO.UK... -
Page 21: Water Connection
Note that roller assembly is offset to one side to avoid contacting the blade, so it may only be installed in one orientation. If it is not needed, the guide roller assembly may be removed and set aside. WWW.DIAQUIP.CO.UK... -
Page 22: Overload Protection, Overheat Protection
CAUTION: The motor will be damaged if it is repeatedly overloaded or overheated. Always cool the motor by running at no load for a few minutes whenever it stops from either overheat or overload. WWW.DIAQUIP.CO.UK... -
Page 23: Operation
For straight cutting, a wood plank is also useful in guiding the machine to make a straight cut. Ensure that all bystanders are at a safe distance. Ensure that the equipment is grounded. Ensure that all safety equipment is in place. WWW.DIAQUIP.CO.UK... -
Page 24: Cutting Technique
Do not try to cut too much depth in one pass. Never exceed about 50mm (2”) per pass. It is better to cut in multiple passes to minimize the cutting contact area of the blade and keep the blade spinning fast. Release Button Trigger Switch WWW.DIAQUIP.CO.UK... - Page 25 Stopping Release the trigger to stop the machine. After the trigger is released, the blade will continue spinning for a time. WARNING: Do not set the machine down until the blade has stopped turning. WWW.DIAQUIP.CO.UK...
-
Page 26: Maintenance And Cleaning
Daily Maintenance Keep the machine clean Check to ensure that the power supply cable is in good condition. Ensure all screws are tight. Check the condition of all safety equipment such as the blade guard Check the blade for damage. WWW.DIAQUIP.CO.UK... -
Page 27: Carbon Brushes
Do not throw electric power tools into the household waste! In accordance with the European Directive 2002/96/EG on Waste Electrical and Electronic Equipment and transposition into national law, used electric power tools must be collected separately and recycled in an environmentally friendly manner. WWW.DIAQUIP.CO.UK... - Page 28 WIRING WWW.DIAQUIP.CO.UK...
- Page 29 NOTES WWW.DIAQUIP.CO.UK...
- Page 30 NOTES WWW.DIAQUIP.CO.UK...
- Page 31 NOTES WWW.DIAQUIP.CO.UK...
- Page 32 APPROVED SERVICE CENTRE; DIAQUIP HEAD OFFICE | MANCHESTER, UK 0161 406 0609 SALES@DIAQUIP.CO.UK WWW.DIAQUIP.CO.UK...
