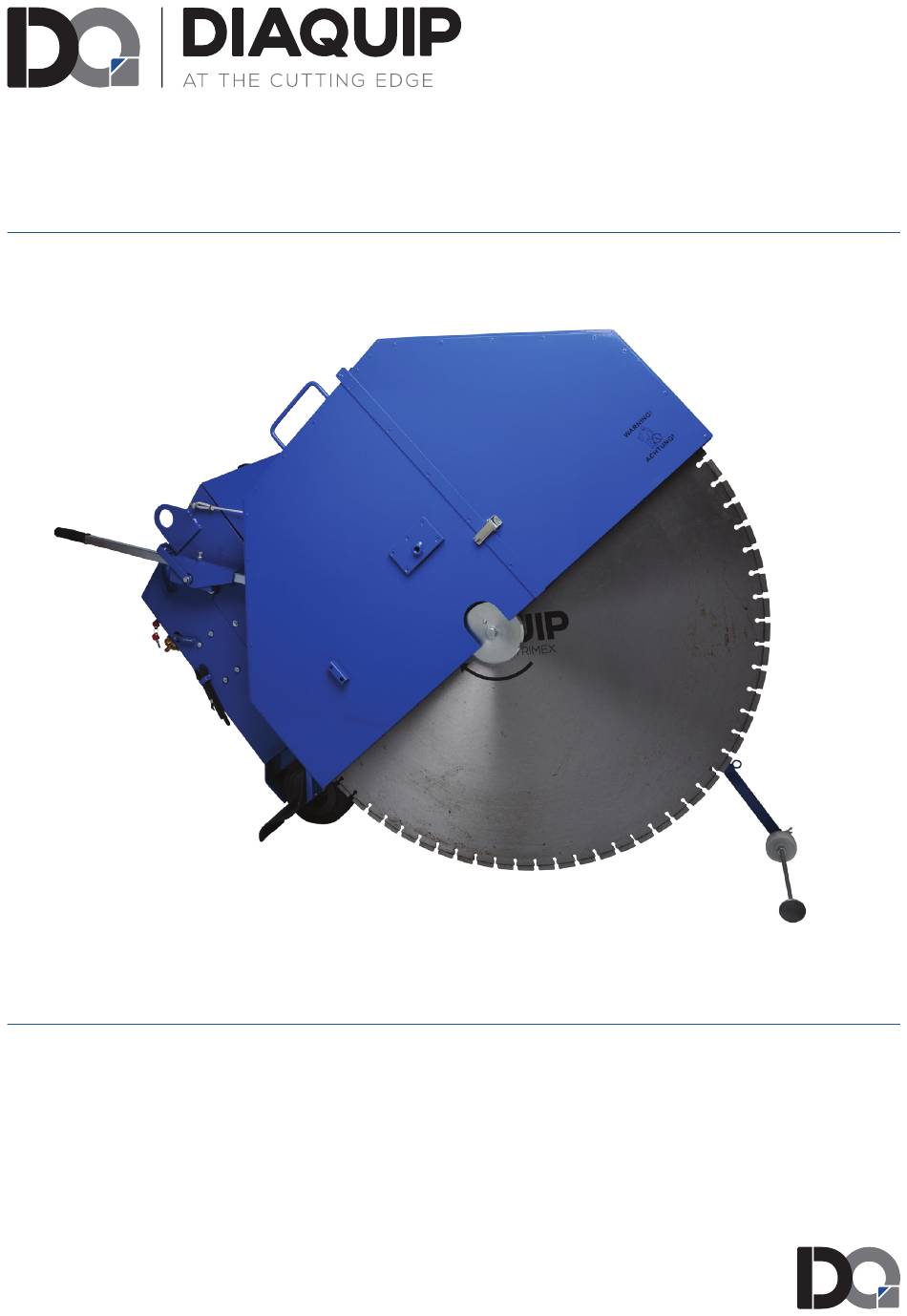

- Page 1 OPERATORS MANUAL QFS-1200 ELECTRIC FLOOR SAW...
-
Page 2: Technical Data
GENERAL With the QFS-1200 a floor saw has been developed convincing by its compact size and low weight. The working feed is effected by an electronically adjustable working feed drive. Blade admission left and right side. Blade lowering by crank mechanism. The machine has been specially designed to cut floor joints or floor separating cuts on civil or building engineering. -
Page 3: Putting Into Service
Check that the cover hood is firmly mounted and that it the saw not toots touch the cover hood. At not right assembly of the diamond saw blade very danger! You start the engine first after all assembly work is completed completely Danger and the protective hood still is placed correctly! WWW.DIAQUIP.CO.UK... - Page 4 The appropriate prescriptions of the VDE/SEV and the electricity works have to be observed at connection of the engine. The connection network has to be checked. To protect the engine and persons from damage, whether the being device is grounded net-sided unobjectionable has to be checked. WWW.DIAQUIP.CO.UK...
- Page 5 The other flange 12 with water channels, has to be used always with the saw blade. Please note that too little cooling water or only single-sided water supply has an important influence of the life time and cutting characteristics of the diamond saw blade! Danger WWW.DIAQUIP.CO.UK...
-
Page 6: Cutting Operation
A adjustable depth display on the left side on the machine shows the respective cutting depth. According to the saw blade diameter lower the saw by using the hand crank 05 so that the saw blade touching the ground. Now putting the cutting the indicator on the scale on zero. WWW.DIAQUIP.CO.UK... - Page 7 A adjustable depth display on the left side on the machine shows the respective cutting depth. According to the saw blade diameter lower the saw blade by the motorized depth adjusting unit so that the saw blade touching the ground. Now putting the cutting the indicator on the scale on zero. WWW.DIAQUIP.CO.UK...
- Page 8 10 to 12cm depth an till you reach the full cutting depth. Always drive at multiple slices in the same direction. Don’t pull the machine back with an the saw blade still cutting since it is so possible that the diamond sheet of high stroke can get. WWW.DIAQUIP.CO.UK...
-
Page 9: Maintenance And Transportation
3. Relax the drive-belts by the clamp bolt 4. Push the motor backward 5. Assemble the new drive-belts 6. Stretch the drive-belts with the clamp bolt, (V-belt should allow to be pressed down approx. 1 cm) 7. Assemble the V-belt protection cover with the 2 screws WWW.DIAQUIP.CO.UK... - Page 10 The engine is transported without assembled diamonds sawing blade. Through this injuries and damages are avoided. Loaded the engine using to the central. At the transport, check always that the machine never is hangs free suspendedly over persons. Always fix the machine with belts on the transport surfaces. Danger WWW.DIAQUIP.CO.UK...
- Page 11 NOTES WWW.DIAQUIP.CO.UK...
- Page 12 APPROVED SERVICE CENTRE; DIAQUIP HEAD OFFICE | MANCHESTER, UK 0161 406 0609 SALES@DIAQUIP.CO.UK WWW.DIAQUIP.CO.UK...
