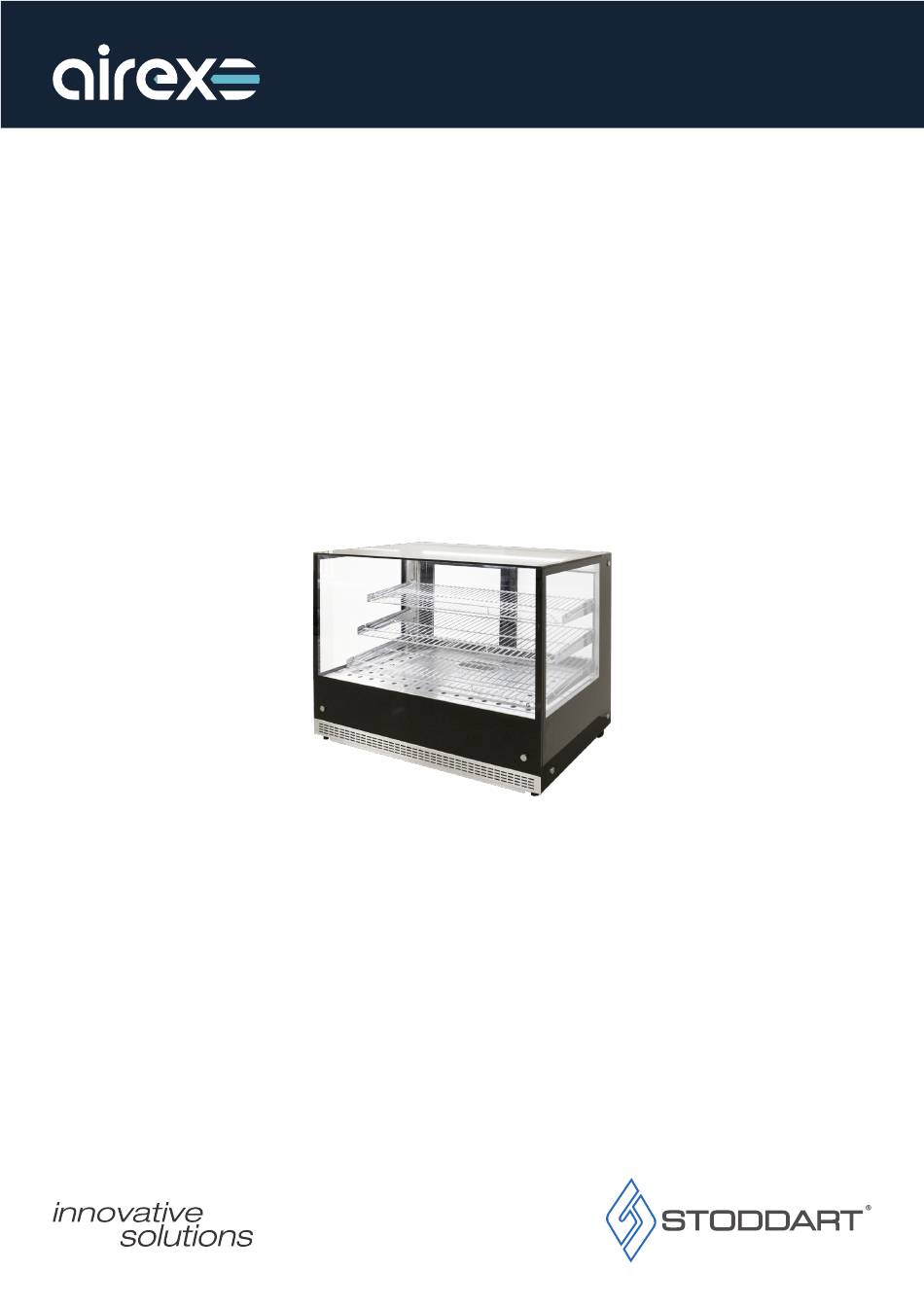

- Page 1 Heated Food Display Countertop - Square SPECIFICATION, INSTALLATION AND OPERATION MANUAL READ ALL INSTRUCTIONS BEFORE USE Model: AXH.FDCTSQ.09 Revision: 01 - 14/07/2020 - A...
- Page 2 Page Intentionally Left Blank Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 1...
- Page 3 Specification General Drawing ......9 AXH.FDCTSQ.09 Operation Initial Start-up & Operation ....10...
- Page 4 Airex product in accordance with these instructions, will provide many years of reliable service. Stoddart is a wholly Australian owned company, which manufactures and/or distributes a comprehensive range of food service equipment for kitchens, food preparation and presentation. Stoddart products are manufactured and/or engineered in Australia to provide excellent results whilst offering value-for-money, ease-of-use and reliability.
-
Page 5: Warranty And Registration
The manufacturer declines any liability for damages to persons and/or things due to an improper/wrong and/or unreasonable use of the machine • Only specifi cally trained/qualifi ed Technicians (Stoddart, one of our service agents, or a similarly qualifi ed persons) should carry out any and all repairs, maintenance and services Due to continuous product research and development, the information contained herein is subject to change without notice. -
Page 6: Product Overview
CAUTION This unit heated components. Hot surfaces can burn DO NOT touch these surfaces Display Shelves Air Vents Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 5... - Page 7 Please consult national and local standards to ensure that your unit is positioned in accordance with any existing requirement Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 6...
-
Page 8: Electrical Connection
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualifi ed persons in order to avoid a hazard. Please contact Stoddart for parts and we will advise how to do this in order to avoid any electrical hazard •... -
Page 9: Adjustable Shelves
Swing the door IN and drop the door DOWN into the door rail Slide door across Repeat for the second door. Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 8... -
Page 10: Specification
Specification General Drawing AXH.FDCTSQ.09 Specifications Model AXH.FDCTSQ.09 W x D x H (mm) 905 x 575 x 700 Weight 57kg Operation 60°C - 80°C Power 220 - 240V 10A plug & lead FRONT VIEW SIDE VIEW Due to continuous product research and development, the information contained herein is subject to change without notice. -
Page 11: Initial Start-Up & Operation
This unit should be turned off after service After Service - Storage • Products should not be stored in the unit after service Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 10... -
Page 12: Temperature Adjustment
4. To memorise the new set point value push the key again or wait 10 seconds. Note: To enter in programming mode. (Contact the Stoddart Service Department) Due to continuous product research and development, the information contained herein is subject to change without notice. -
Page 13: Cleaning And Maintenance
FOOD SAFE serious injury Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 12... - Page 14 Using a clean dry sanitised cloth, thoroughly wipe the stainless steel and metal parts dry. Do NOT let water pool on the unit. Check crevices and folds Place the crumb tray back into position Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 13...
-
Page 15: Troubleshooting Procedures
• If any faults/issues occur with the unit, follow the below troubleshooting procedures • If the troubleshooting procedures do not correct the problem, contact the Stoddart Service Department WARNING Technician tasks are only to be completed by qualified service people. Check faults before calling service technician. - Page 16 Australia Service / Spare Parts Sales Tel: 1300 307 289 Tel: 1300 79 1954 Email: service@stoddart.com.au Email: sales@stoddart.com.au Email: spares@stoddart.com.au www.stoddart.com.au Australian Business Number: 16009690251 New Zealand Service / Spare Parts Sales Tel: 0800 935 714 Tel: 0800 79 1954 Email: service@stoddart.co.nz...
