Infloria GS010999 Assembly Instructions Manual

Walk-in greenhouse
Hide thumbs

Advertisement

Quick Links

Download this manual
Article No: GS010999
Assembly Instructions
—— For Single Sliding Door
Walk-in Greenhouse

Advertisement

loading
Need help?

Need help?

Do you have a question about the GS010999 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Infloria GS010999

Summary of Contents for Infloria GS010999

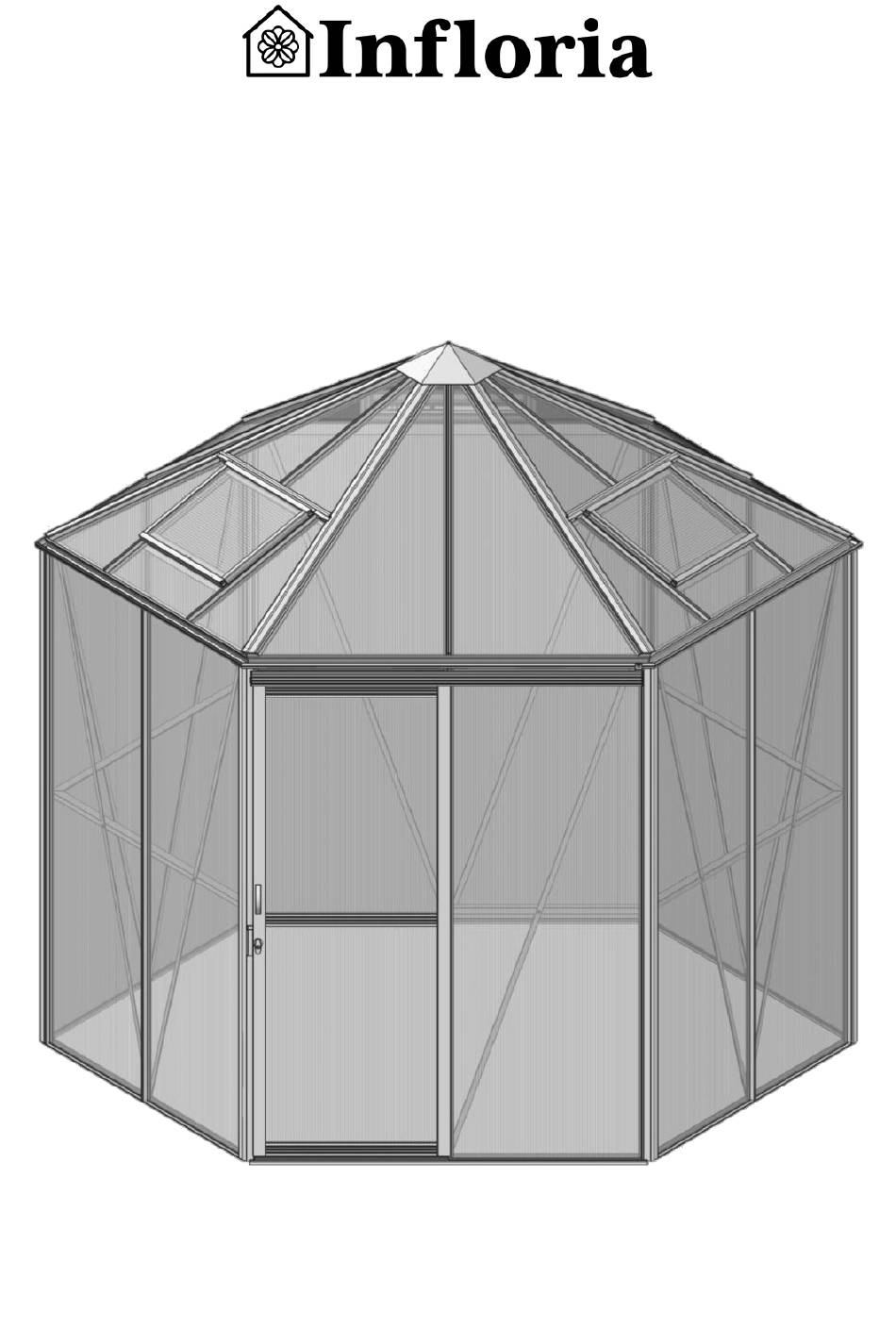

  • Page 1 Article No: GS010999 Assembly Instructions —— For Single Sliding Door Walk-in Greenhouse...

  • Page 2: Safety Warning

    Thank you for purchasing your new greenhouse. We recommend you familiarize yourself with the instructions and read all safety information before you commence assembly. These instructions are divided into sections： Base, Part lists, Preparation, Side wall, Rear wall, Front wall, Roof, Vent, Door, PVC capping bar, Polycarbonate or Glass, Down pipes, Optional Turbine Vent, Anchoring greenhouse to slab or base etc.

  • Page 3: Additional Considerations

    Important Before assembling your new greenhouse, please check that all parts in the provided list are included. Please take each bundle out of the packaging in order to identify the parts better. Most parts are num- bered and can be identified by a stamped number or removable label. Alternatively, the components can be identified by lengths detailed in the packing list (see diagram below).

  • Page 4: Base-Optional

    Base-Optional Article No: GS010998 We cannot emphasis how important it is to have a proper base for your Greenhouse to be erected upon. It is essential that the BASE IS FLAT, LEVEL AND SUBSTANTIAL enough to take the weight of the greenhouse including its polycarbonate panels or heavy glass.
  • Page 5 Base IMPORTANT Before assembling aluminium base, the end trough centers of seven legs should match both end trough centers of side sills and front & rear sills at the same time. Please match six legs troughs together at the same time...
  • Page 6 Anchoring building to slab / concrete base For this final stage you will need No.10 X 2” screws, grey wall plugs, a 8mm ma- sonry drill bit and a hammer drill. Fixing the greenhouse to the ground is very simple to do. When you built the front, rear and side assemblies you will have attached base brackets (m5) in spe- cific places around the building.

  • Page 7: Parts List

    Parts List Package 1 7901 7607 7905 7906 7910 7911 Size 1922 1922 1520 1520 2033 1450 M6x10 M6x15 Package 2 7022 7930 7904 7906 7607 7910 7911 7944 7121 7120 7166 Size 1462 1462 1520 1520 1922 2033 1450 1435 M6x10 Size...
  • Page 8 Parts List Package 5 7938 7939 7061 7062 7063 7065 Φ3.5x19 Size 1838 1838 M6x10 G-p5 FLUFF Size 1838 Package 7 Φ3.5x13 Size 1400...
  • Page 9 BASE Base dimensions and recommendations. Ensure that your base is level as this will make assembly of the building, especially the glazing of the roof much more straight forward. PARTS LIST Most components should have a code punched into their metal surface. Identify and separate all like for like components prior to assembly.
  • Page 10 Assemble the outer hexagonal ridge cone #7994 over the assembled profiles on hexagonal bracket, using long bolt #a24, spacer #7991, open-close disc #7993 and locknut #a25. DOOR ATTACHMENT The door lock strike height could be adjusted based on door lock position later. The door track support #7120 height will be exactly below the gutter #7904.
  • Page 11 In Package 1 & Package 2 Side wall 7901 7607 7022 7905 7906 7910 7911 Size 1922 1922 1462 1519 1519 2033 1450 M6x10 M6x15           Package 1  Package 2 7906 7905 7910...
  • Page 12 Side wall 7910 7607 7911 7901 7911 7911 7901 7910 7911 7911 7911 7906 7906 7607 7901 7910 7906 7905 7906 7905 7910 7910 7901...
  • Page 13 In Package 2 Rear wall —— Join Side wall together 7022 7906 7607 7910 7911 Size 1462 1519 1922 2033 1450 M6x10 M6x15 7906 7022 a3/a2 7022 7906 a1/a2...
  • Page 14 Rear wall 7906 7607 7910 7910 7911 7022 7906 7906 7901 7911 7911 7910 7607 7901 7607 7910 7607 7910 7910 7911 7911 a3/a2 7022...

  • Page 15: Front Wall

    In Package 2 Front wall —— Join Side wall together 7904 7930 7607 7910 7944 7121 7120 7166 Size 1519 1462 1922 2033 1435 M6x10 M6x15 M6x10 7904 a1/a2 7904 a3/a2 7930 7930 7904 7121 7120 7910 7607 7944 7930...
  • Page 16 Front wall a1/a2 7120 7120 7121 7121 Section View 7904 7904 a9/a2 7166 7120 7120 7607 7901 7901 7910 7904 7944 7944 7910 7607 7607 7910 7944 7930...
  • Page 17 In Package 3 Roof 7914 7916 7917 7918 7921 7991 7992 7993 7994 Size 1534 1352 Size M6x10 M6x110 M6-L 7992 7914 7914 7914 7914 7914 7914 7914 7992 7992 7914 7914...
  • Page 18 Roof 7918 7918 7914 7921 7914 7917 7916 7916 7914 7914 7917 7917 7918 7918 7921 7921 7918 7918 7916 7914 7914 7992 7992 7916 7916 7917 7916 7921 7921 7918 7918 7914...
  • Page 19 Roof 7994 7991 7993 7992 7914 close open...
  • Page 20 In Package 4 Vent 7950 7951 7952 7924 7953 7067 Φ3.9x8 M4x8 Size M6x10 7950 7918 7918 7067 7950 7950 7918 7951 7951 7924 7924 7924...
  • Page 21 Vent 7952 7951 7057 7924 7952 7924 7057 7952 7952 7924 p3/a4...
  • Page 22 In Package 5 Door 7938 7939 7061 7062 7063 7065 G-p5 FLUFF Φ3.5x19 Size 1838 1838 M6x10 1838 7061 7939 7938 7063 7062 7938 7061 7938 7063 7938 7062...
  • Page 23 Door 10 11 7065 G-p5 7121 7166 G-p5...
  • Page 24 Silicone Waterproof Alu. Foil tape 100mm x 6pc...
  • Page 25 PVC Capping Bar Step6 Step1 Step3 Step4 Step2 Step5 Note: PVC capping bars were pushed in place from both top and bottom in diagonal direction to- gether. If you assemble it from one side by one side, you will fell space is too tight to assemble an- other PVC capping bar.
  • Page 26 10mm Polycarbonate sheet six corners same six corners same c-1512 c-1512 c-688 c-777 c-777 c-688 Length Size 1512 572 x 413 1352 592 x 195 Panel 700 x 0 / 1397 Roof 700 x 0 / 1397 372 x 0 / 744 372 x 0 / 744 394 (77) x 634 Panel...
  • Page 27 4mm Glass...
  • Page 28 4mm Glass Length Size 1921 700 x 1919 Side Wall 650 x 883 5 meter 9 roll Silicone Glass Glass Glass...
  • Page 29 Downpipe Half edge trimmed firstly Waterproof Alu. Foil tape 100mm x 6pc Φ3.5x13 1400...
  • Page 30 Article No: GS010995 Optional Turbine vent is optional ＊ Remove hexagonal ridge cone firstly. ＊ Assemble open-close disc #7993 on hexagonal bracket by using short M6 bolt #a1 instead of long #a24. ＊ Attach turbine vent on roof corner bars by carefully using self-drilling tapping screws #a18 which will bore into aluminium or plastic.
  • Page 31 The list of parts Description Side wall Rear & Front wall Roof Vent Door PVC capping bar Downpipe Polycarbonate panels Tools Assembly Instruction...
