High Level Input Wiring, cont.

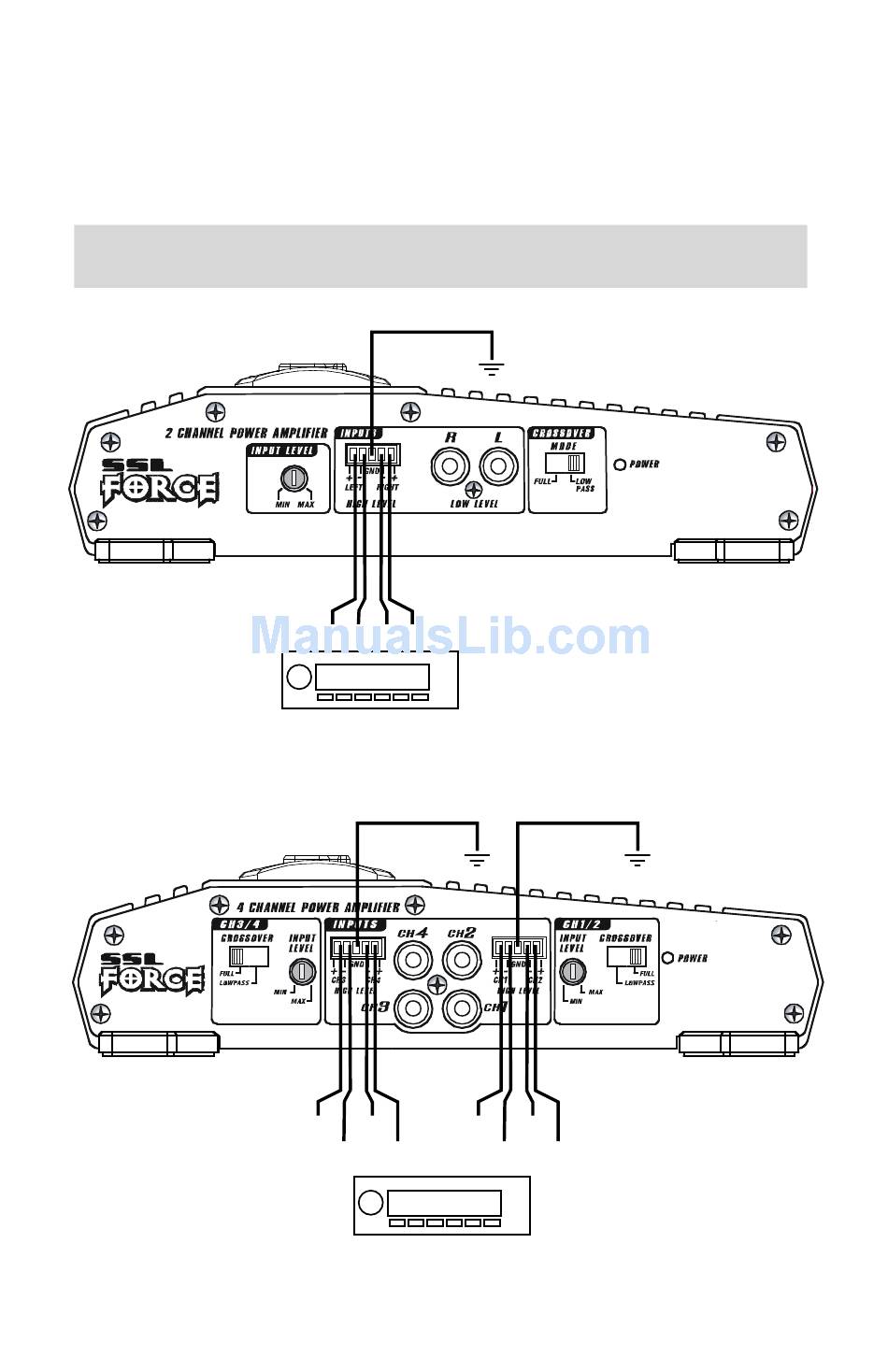

The high level input(s) should only be used when your head unit lacks RCA outputs.
If the RCA outputs are not present, connect the speaker outputs from the receiver
to the high level input connector of the amplifier. Be sure to observe polarity to
avoid audio phase problems.
NOTE: Do not connect BOTH the high level and low level inputs from your
receiver to your amplifier at the same time!
2-Channel Amplifier
2F200
4-Channel Amplifier
4F400
FORCE Amplifier User's Manual - page 8
To Speaker Terminals
of head unit
L+ L- R- R+
CH3+ CH4- CH1+
CH3- CH4+
CH2-
CH1- CH+
To Speaker Terminals
of head unit
