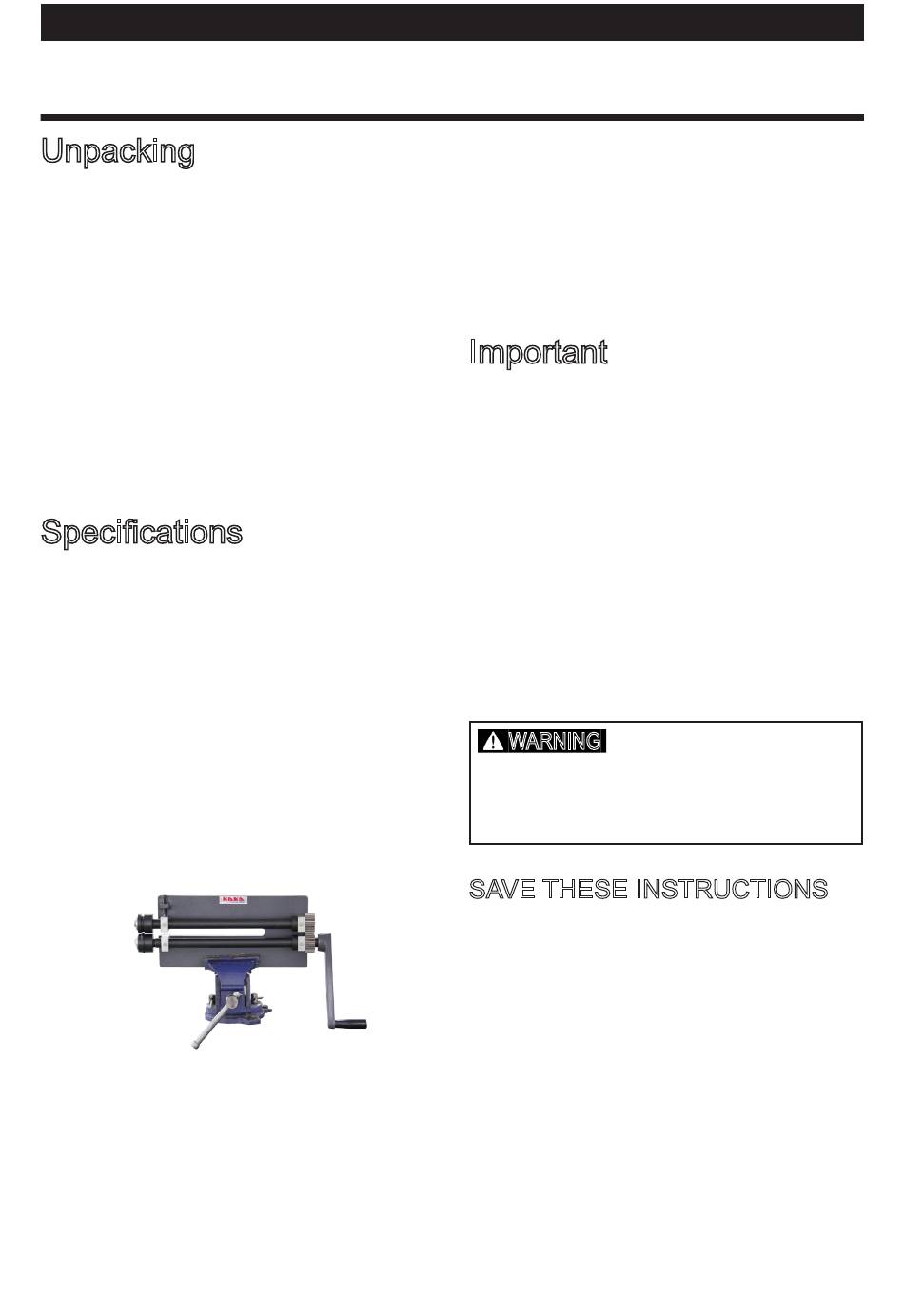

KAKA Industrial RM-12 Operation Manual

Operation Manual
KAKA Industrial

Unpacking

The Rotary Machine is shipped from
the manufacturer in a carefully packed
Carton box. Thoroughly inspect the
product upon opening the package.
After unpacking the unit, carefully
inspect for any damage that may
have occurred during transit. Check
for loose, missing, or damaged parts.
Shipping damage claims must be
filed with the carrier and are the
responsibility of the user.

Specifications

K A K A R o t a r y M a c h i n e i s h a n d
operated and will form (0.050) mild
steel (or equivalent). The rotary
machine is constructed of steel
ensuring minimum deflection of the
workpiece during forming operations.
Six die sets are included allowing the
following operations to be performed:
B e a d i n g ( R 4 , R 6 , a n d R 7 . 5 ) a n d
flanging(1/16",1/8"and 1/4")
Stock No. ................................173226
Model........................................RM-12
Capacity....................18 Ga. (1.2 mm)
Throat depth..................12" (305 mm)
Packing size....15"x18"x6" (38x45x16 cm)
N.W./G.W. ..........42/46 lbs (19/21 kg)
Stock No. ................................173206
Model........................................RM-18
Capacity....................18 Ga. (1.2 mm)
Throat depth..................18" (457 mm)
Packing size....29"x11"x6" (73x27x14 cm)
N.W./G.W. ..........53/57 lbs (24/26 kg)

Important

Rotary machine and dies are coated
with a protectant. To ensure proper fit
and operation, remove coating. Coating
is easily removed with mild solvents,
such as mineral spirits, and soft cloth.
Avoid getting cleaning solution on
paint or any of the rubber or plastic
parts. Solvents may deteriorate these
finishes. Use soap and water on paint,
plastic or rubber components. After
cleaning, cover all exposed surfaces
with a light coating of oil.
WARNING
Never use highly volatile solvents.
Non-flammable solvents are recommended
to avoid possible fire hazard.
SAVE THESE INSTRUCTIONS
Thank you for purchasing our RM-18
Rotary Machine. Before attempting
to operate your new tool please
read these instructions thoroughly.
You will need these instructions for
the safety warnings, precautions,
Assembly, operation, maintenance
procedures, parts list and diagrams.
Keep your invoice number with these
instructions. Write the invoice number
on the inside of front cover. Keep the
instructions and invoice in a safe, dry
place for future reference.
— 1 —
RM-12/18
®
