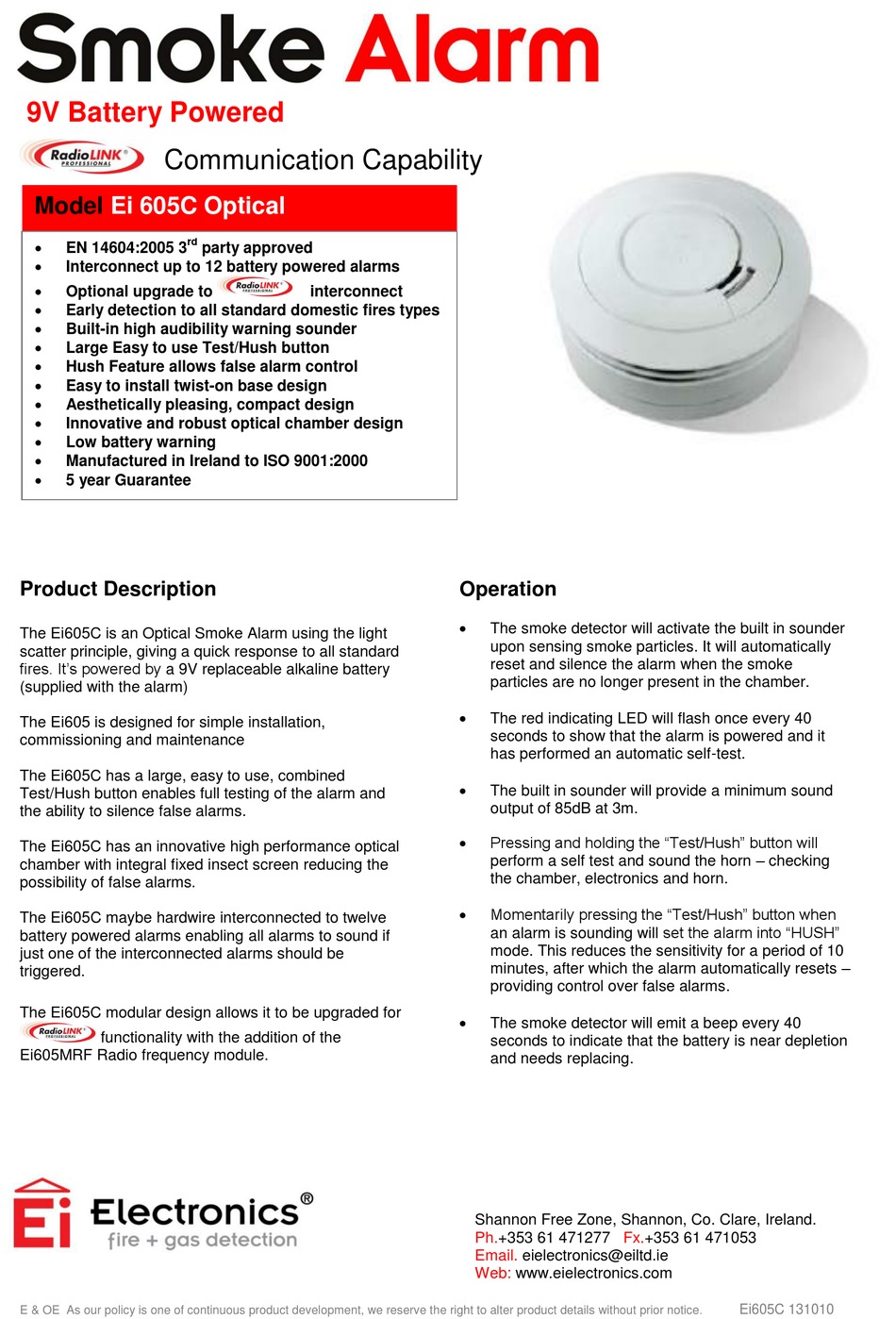

Electronics Ei 605C Installation

9V Battery Powered
Communication Capability
Model Ei 605C Optical

rd
EN 14604:2005 3

Interconnect up to 12 battery powered alarms

Optional upgrade to

Early detection to all standard domestic fires types

Built-in high audibility warning sounder

Large Easy to use Test/Hush button

Hush Feature allows false alarm control

Easy to install twist-on base design

Aesthetically pleasing, compact design

Innovative and robust optical chamber design

Low battery warning

Manufactured in Ireland to ISO 9001:2000

5 year Guarantee
Product Description
The Ei605C is an Optical Smoke Alarm using the light
scatter principle, giving a quick response to all standard
fires. It's powered by a 9V replaceable alkaline battery
(supplied with the alarm)
The Ei605 is designed for simple installation,
commissioning and maintenance
The Ei605C has a large, easy to use, combined
Test/Hush button enables full testing of the alarm and
the ability to silence false alarms.
The Ei605C has an innovative high performance optical
chamber with integral fixed insect screen reducing the
possibility of false alarms.
The Ei605C maybe hardwire interconnected to twelve
battery powered alarms enabling all alarms to sound if
just one of the interconnected alarms should be
triggered.
The Ei605C modular design allows it to be upgraded for
functionality with the addition of the
Ei605MRF Radio frequency module.
E & OE As our policy is one of continuous product development, we reserve the right to alter product details without prior
party approved
interconnect
Operation

The smoke detector will activate the built in sounder
upon sensing smoke particles. It will automatically
reset and silence the alarm when the smoke
particles are no longer present in the chamber.

The red indicating LED will flash once every 40
seconds to show that the alarm is powered and it
has performed an automatic self-test.

The built in sounder will provide a minimum sound
output of 85dB at 3m.

Pressing and holding the "Test/Hush" button will
perform a self test and sound the horn – checking
the chamber, electronics and horn.

Momentarily pressing the "Test/Hush" button when
an alarm is sounding will set the alarm into "HUSH"
mode. This reduces the sensitivity for a period of 10
minutes, after which the alarm automatically resets –
providing control over false alarms.

The smoke detector will emit a beep every 40
seconds to indicate that the battery is near depletion
and needs replacing.
Shannon Free Zone, Shannon, Co. Clare, Ireland.
Ph.+353 61 471277 Fx.+353 61 471053
Email. eielectronics@eiltd.ie
Web: www.eielectronics.com
Ei605C 131010
notice.
