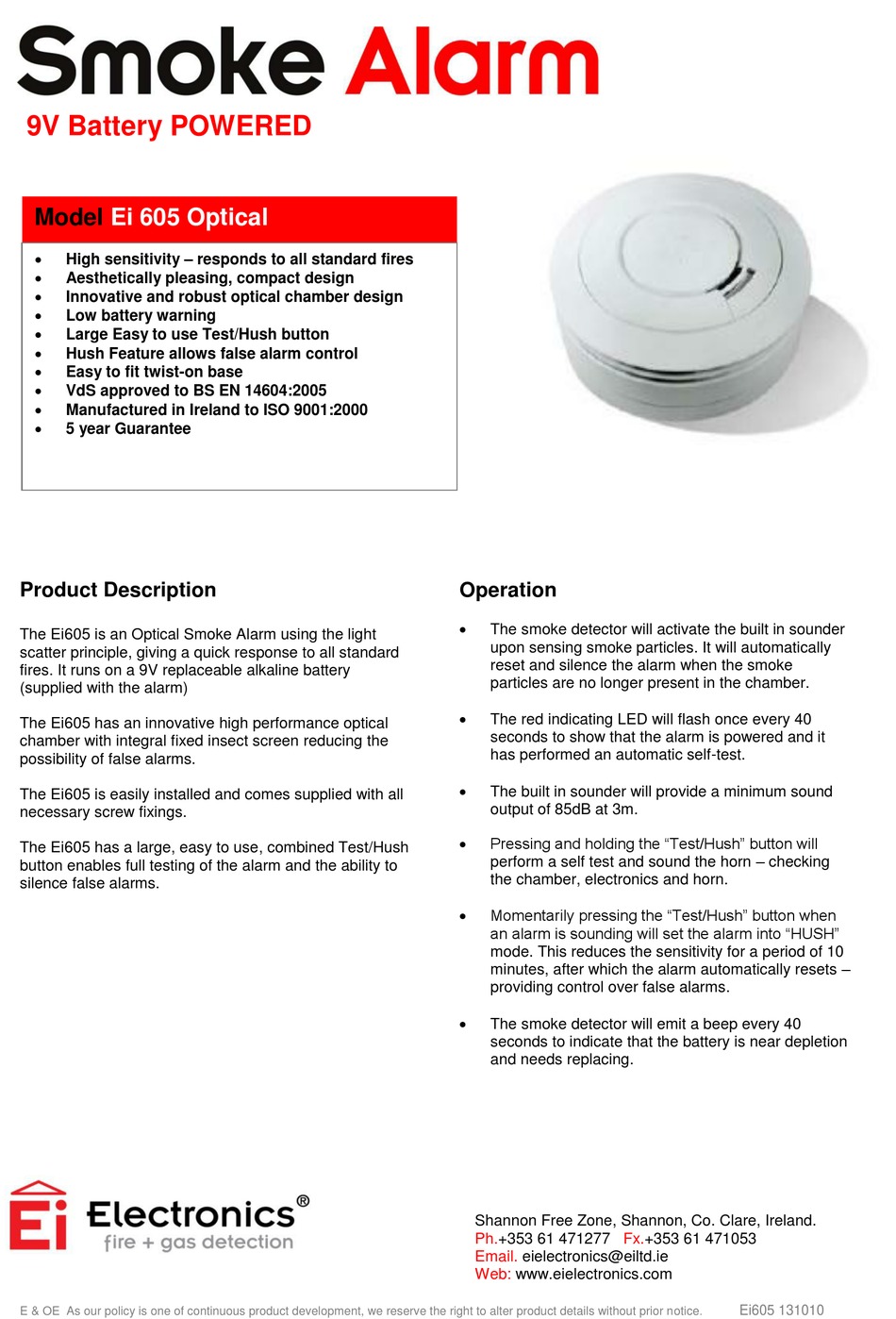

Electronics Ei 605 Optical Quick Start Manual

9V Battery POWERED
Model Ei 605 Optical

High sensitivity – responds to all standard fires

Aesthetically pleasing, compact design

Innovative and robust optical chamber design

Low battery warning

Large Easy to use Test/Hush button

Hush Feature allows false alarm control

Easy to fit twist-on base

VdS approved to BS EN 14604:2005

Manufactured in Ireland to ISO 9001:2000

5 year Guarantee
Product Description
The Ei605 is an Optical Smoke Alarm using the light
scatter principle, giving a quick response to all standard
fires. It runs on a 9V replaceable alkaline battery
(supplied with the alarm)
The Ei605 has an innovative high performance optical
chamber with integral fixed insect screen reducing the
possibility of false alarms.
The Ei605 is easily installed and comes supplied with all
necessary screw fixings.
The Ei605 has a large, easy to use, combined Test/Hush
button enables full testing of the alarm and the ability to
silence false alarms.
E & OE As our policy is one of continuous product development, we reserve the right to alter product details without prior
Operation

The smoke detector will activate the built in sounder
upon sensing smoke particles. It will automatically
reset and silence the alarm when the smoke
particles are no longer present in the chamber.

The red indicating LED will flash once every 40
seconds to show that the alarm is powered and it
has performed an automatic self-test.

The built in sounder will provide a minimum sound
output of 85dB at 3m.

Pressing and holding the "Test/Hush" button will
perform a self test and sound the horn – checking
the chamber, electronics and horn.

Momentarily pressing the "Test/Hush" button when
an alarm is sounding will set the alarm into "HUSH"
mode. This reduces the sensitivity for a period of 10
minutes, after which the alarm automatically resets –
providing control over false alarms.

The smoke detector will emit a beep every 40
seconds to indicate that the battery is near depletion
and needs replacing.
