Norman LightGuard 360 N301124-G System Installation Instructions

Advertisement

N301124-G
TM

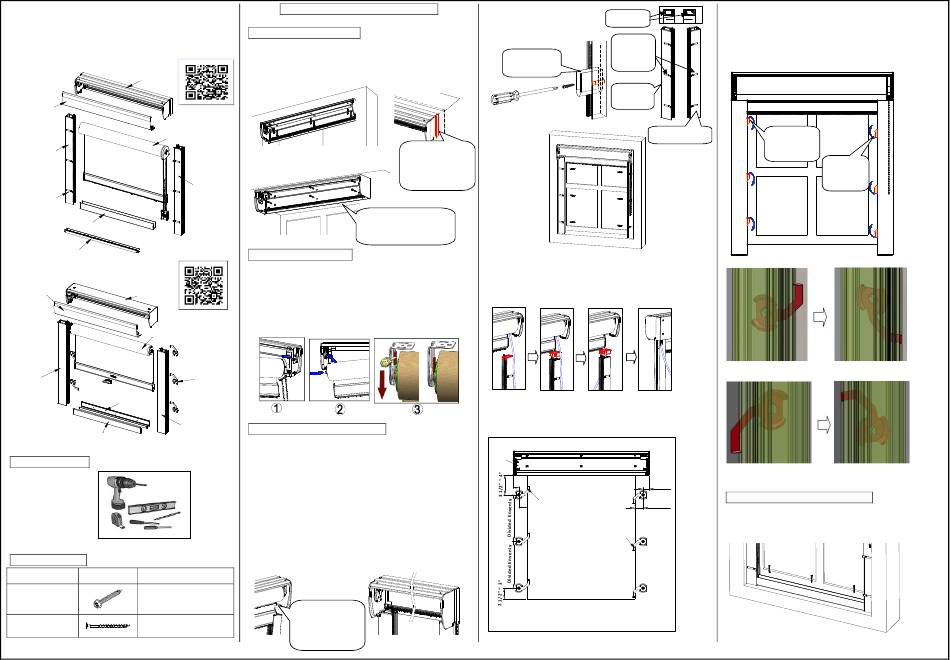

LightGuard 360
System Installation
Instructions
Inside Mount
Housing
Housing
Cover
Scan to watch
Roller Shade
Left
Channel
Screw
Location
Label
U Bottom Channel
M Bottom Channel
Outside Mount
Housing
Housing
Cover
Scan to watch
Roller Shade
Left
Channel
Bottom
Channel
Right
Channel
Bottom Channel
Cover
Recommended tools
● Power drill
● Tape measure
● Screwdriver
● Level ruler
● Pencil
Hardware included
Hardware
Drawing
Usage
To install Housing,
1 1/4" Hexagon
Bottom Channels, Side
screw
Channels, Swivel Bracket
To install safety tension
2" Flat head screw
device
Installation of Housing & Side Channels
1. Installation of the housing
Install the housing to the wall with 1 1/4" hexagon screws. Check
to see if the window header is level. If not, use shims to level the
housing.
Inside Mount
Outside Mount
Right
Channel
Bottom edge of the
housing aligns with the
top edge of the window.
2. Installation of the shade
① First, insert the control side into the tongue of the bracket for
the control side.
② Second, press the end plug and insert the end plug into the hole
of bracket of the other side.
③ Third, slide the lock pin in the shade bracket downward into
the end plug to prevent the shade from falling.
○ 4 Finally remove the paper band from the shade.
Swivel
Bracket
3. Installation of the side channels
Note: Make sure the shade functions properly before installing the
side channels.
Inside Mount:
Determine the left and right channels by noting the mark of
LEFT/RIGHT on the top end cap of the side channels. The front
of each channel contains labels indicating location of screw holes.
Position the top of each channel around the hem bar and clip into
the slot of the housing end cap.
Take out the PVC card that stick on the side channel, and then
fold it into a U-shape and place into the channel near the screw
location labels to reveal each screw hole. Remove the screw
location label after side channels are properly installed.
Clip top of the
side channel into
the slot of the
housing end cap.
U-shaped
PVC card
Light block film
to cover the light
between wall and
housing end cap.
Motorized Shades:
For motors with power cord and plug cord must be routed through
the back of the channel. Remove the channel end cap and run the
cord through the cutout and behind the channel. Install the side
channels as described earlier.
Outside Mount:
First, install the swivel brackets. Make sure that the inner edge of the
bend flushes with the window edge, and left brackets face upward and
right brackets face downward.
Housing
7/8"
Left brackets
face upward
1 1/4"
and inner edge of
the bend flush
with edge of
the window.
Right brackets
face downward
and inner edge
of the bend flush
with edge of the
window.
Determine the left and right channels by noting the mark of
LEFT/RIGHT on the top end cap of the side channels.
Top Cap
Position the top of each channel around the hem bar and put into
Screw
the housing end cap, and the inner edge of the side channels flush
Location
with the window edge. And then rotate the bend of swivel
Label
brackets down/up to lock the side channels.
Left
Channel
Right Channel
Left
brackets
rotate down
7/8"
4. Installation of the bottom channel
1 1/4"
Note: Please skip this step if there is no bottom channel.
Inside mount: Place the bottom channel into the side channels
and install the screws through the screw holes.
Right
brackets
rotate up
Left Brackets
Right Brackets
1/4
