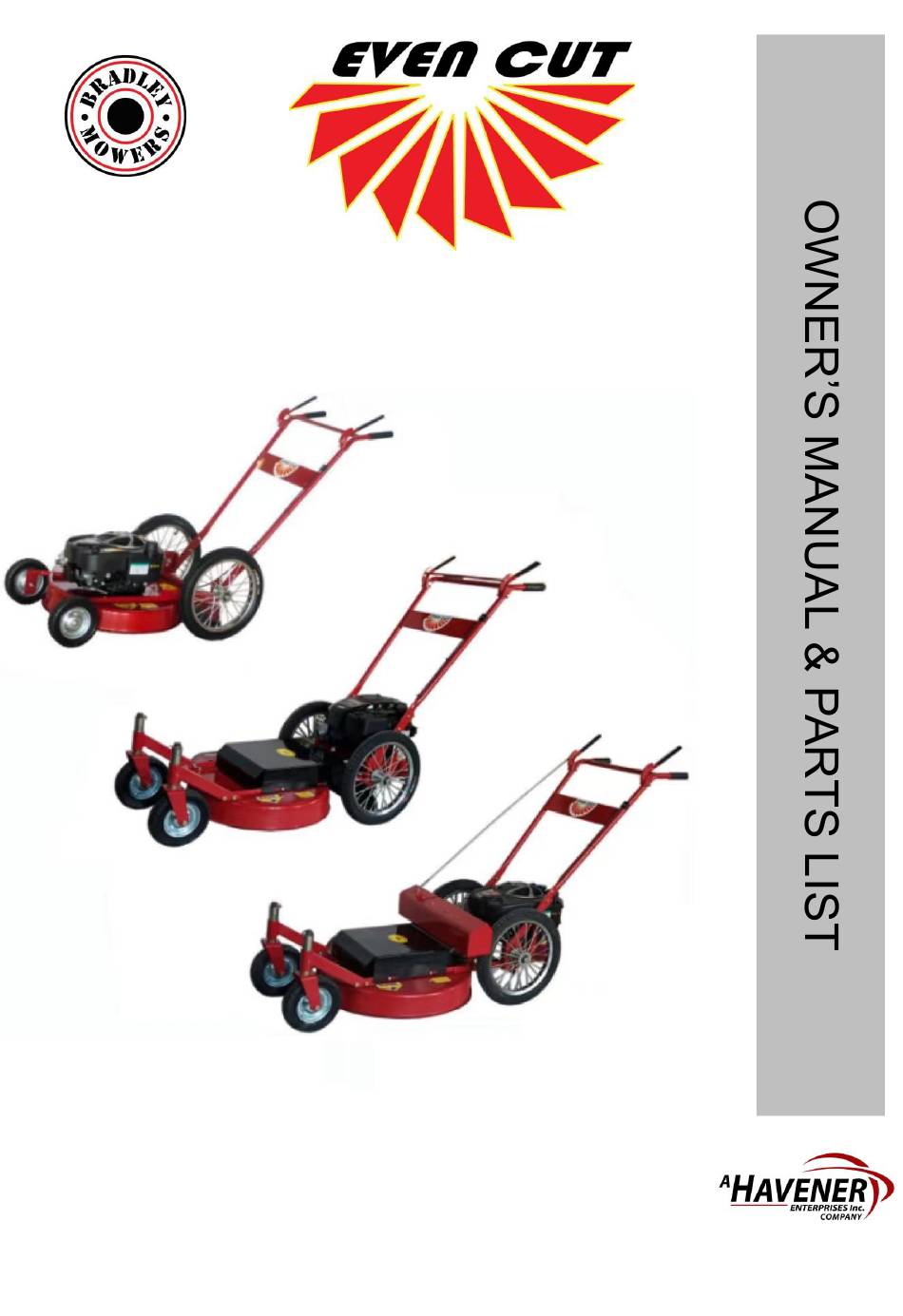

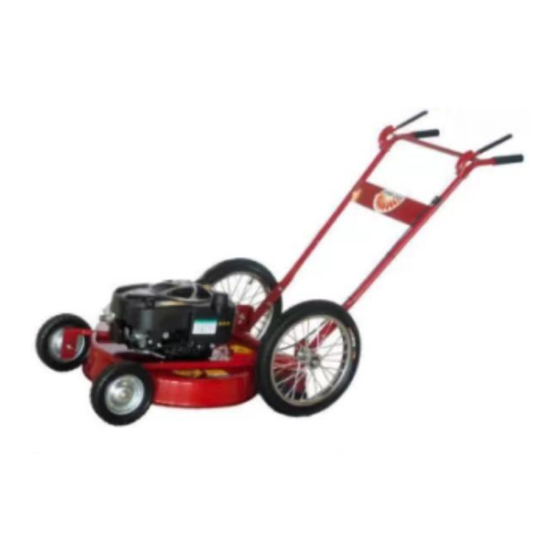

- Page 1 High Wheel Commercial Mower 22DP • 22BP • 24SP www.BradleyMowers.com Sep. 10th 2023...
-
Page 2: Important Message
Havener Enterprises, Inc. designs and builds its equipment to serve many years in a safe and productive manner. For longest life, use this machine only as directed in the manual,... - Page 3 IMPORTANT INSTRUCTIONS: Read the owner’s manual and make it readily available for future reference. Be familiar with the operation of the mower. Extreme emphasis should be placed on operator safety and the mower's safety features. Know the correct mower and engine service and maintenance requirements, and be able to perform or have performed the service and recommended lubrication as required.
-
Page 4: Starting And Stopping
4. Check gas level before starting engine. Do not fill gas tank indoors, when the engine is running, or while the engine is still hot, Wipe off any spilled gasoline before starting engine. 5. Mow only in daylight. 6. Never operate a mower in wet grass. Always be sure of your footing, keep a firm hold on the handle, and walk.NEVER RUN! 7. -
Page 5: Operation
REMEMBER: The safety features on this mower are for your protection. Do not tamper with or remove these components. OPERATION 1. Do not change the engine governor setting or over speed the engine. 2. Do not put hands or feet near or under rotating parts. Stay clear of discharge area while the engine is running (Figure.5). -
Page 6: Engine Service
designed for long lasting service when given proper care. For the proper care instructions, READ YOUR ENGINE MANUAL! SPECIAL SERVICE INSTRUCTIONS Check oil level before every mowing. Change Oil every eight to ten hours of operation. Use high quality SAE 30 oil. Use unleaded gasoline. -
Page 7: Unpacking Instructions
Unpacking Instructions... - Page 8 1.Take out the mower from the carton. 2.Take off the handle bar by using two 13mm wrenches. 3.Assemble the handle bar and tighten the four bolts as shown below:...
- Page 9 4.Hook up the throttle cable as shown below: 5. Install the swivel front wheel for BP, SP only Install the front wheel assembly: Take off the nut from the swivel wheel and then install the front wheel assembly on the deck frame, tighten it with the wrench. Right front swivel wheel assembly Left front swivel wheel assembly...
- Page 10 6.Install the grass chute and tighten the two blots as shown below marked in yellow. 7.Install the walking rod as shown below. Please note only the 24SP mower has this part. Handle height 40±1''...
- Page 11 22DP Assembly...
- Page 12 22DP Assembly Item No. Part Number Description 400-001 Grip 400-034 Handle Grip 200-327 Hexagon Bolt M6-1x45 GB5782 400-003 Bail 400-035 Plow Handle 200-021 Plain Washer 8 GB95 200-009 Nylon Nut M6 GB889 200-013 Nylon Nut M5 GB889 200-174 Nut Thin M14 GB6172.1 400-029 Safety Cable 200-173...
- Page 13 400-020a Spacer, Bearing 600-604-0010 Lock Washer 3/8 200-301 Plain Washer 6 GB95 200-053 Lock washer 6 GB93 200-120 Hexagon Bolt M6-1x16 GB5783 200-138 Plain washer 5 GB95 600-205-0006 Nut M6 DIN985 optional 400-026 Solid tire assembly 424A-039A Spacer for Wheel 424A-068 Standard 3/4″ball bearing...
- Page 14 22BP Gearing Assembly...
- Page 15 22BP Gearing Assembly Item No. Part Number Description 200-030 Nylon Nut M8 GB889 424A-073 Engine Assembly 100-139 Flat key6.35x6x38 200-119 Hexagon Bolt M8-1.25x25 GB5783 336-239 Plain Washer 3*8.5 id *20 od 400-030 Engine Mount (For 2018 or earlier) 400-030A Engine Mount(( For 2021upgrade design) 600-202-0008 Nut Flange M8 QC864 200-179...
- Page 16 22BP Frame Assembly...
- Page 17 22BP Frame Assembly Item No. Part Number Description 400-001 Grip 400-034 Handle Grip 200-327 Hexagon Bolt M6-1x45 GB5782 400-003 Bail 400-035 Plow Handle 200-021 Plain Washer 8 GB95 200-009 Nylon Nut M6 GB889 200-013 Nylon Nut M5 GB889 600-205-0014 Nylon Nut M14 DIN985 400-005 Safety Cable 200-173...
- Page 18 22BP，24SP Front Wheel Assembly Discontinued See#23 2024 upgrade design Front wheel assembly Front wheel assembly for 2020 or earlier for 2021 upgrade discontinued design...
- Page 19 22BP, 24SP Front Wheel Assembly Item No. Part Number Description 400-008 Front wheel axle 400-009 Front wheel 200-107 Hexagon Nut M12 GB6170 600-205-0012 Nylon nut M12 DIN985 400-018 Front end 200-109 Pin 10x20 GB882 200-006 Nylon Nut M10GB889 400-017 Space 400-016 Height adjustment 200-103...
- Page 20 24SP Gearing Assembly Spindle assembly design Different parts compared with Upgraded parts the upgrade spindle...
- Page 21 24SP Gearing Assembly Item No. Part Number Description 200-030 Nylon nut M8 GB889 424A-073 Engine assembly 100-139 Flat key6.35x6x38 200-119 Hexagon Bolt M8-1.25x25 GB5783 336-239 Plain washer 3*8.5 id *20 od 400-030 Engine mount 400-030A Engine mount 600-202-0008 Nut flange M8 QC864 200-179 Hexagon bolt M8-1.25x50 GB5783 400-060...
- Page 22 24SP Transmission Assembly...
- Page 23 24SP Transmission Assembly Item No. Part Number Description 200-135 Hexagon bolt M5-0.8x12 424A-041 Sprocket cover 424A-062 Bearing PFL203 424A-002a Shaft mount weldment 200-030 Nylon nut M8 GB889 200-021 Plain washer 8 GB95 424A-060 Spring hanging plate welding element 200-119 Hexagon bolt M8-1.25x25 GB5783 424A-061 Spring 100-120a...
- Page 24 24SP Frame Assembly...
- Page 25 24SP Frame Assembly Item No. Part Number Description 400-001 Grip 400-034 Handle grip 200-327 Hexagon bolt M6-1x45 GB5782 424A-072 Bail 400-035 Plow handle 200-021 Plain washer 8 GB95 200-009 Nylon nut M6 GB889 200-013 Nylon nut M5 GB889 600-205-0014 Nylon nut M14 DIN985 400-005 Safety cable 200-173...
- Page 26 600-205-0012 Nylon nut M12 DIN985 200-036 Hexagon bolt M6-1x25 GB5783 200-121 Hexagon bolt M12-1.75x35 GB5783 200-107 Hexagon nut M12 GB6170 424A-025 Torsion spring LH 200-138 Plain washer 5 GB95 424A-026 Lg SP mount 424A-027 Torsion spring RH 200-069 Hair pin cotter 600-205-0006 Nut M6 DIN985 600-403-0220...
- Page 27 22BP/24SP Accessories tem No. Part Number Description Optional 200-178 Hexagon Bolt M8-1.25x16 GB5783 400-040 Mulch Plate 200-030 Nylon Nut M8 GB889 400-041 Mulch plate Assembly...
- Page 28 Warranties should be performed by an authorized Bradley Mowers dealer. All other warranty service requires prior approval. Your product warranty is only valid if this file is completed signed, and returned to Havener Enterprises, Inc. within two weeks of product purchase. See the warranty statement for more details.
