SELFSAT H30D Manual

Hide thumbs Also See for H30D:
Table of Contents

Advertisement

Quick Links

Download this manual
Contents

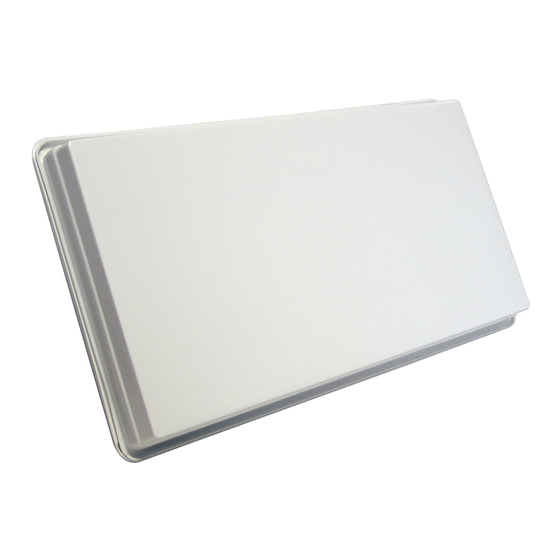

What is SELFSAT-H30D Travel Kit?
｜
Safety Instructions
｜
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Box Content
｜
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
How to Install?
｜
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
｜
｜
｜
｜
｜
｜
Troubleshooting Check List for Initial Installation
Loss of Signal / Rain Fade
｜
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
2
3
4
4
5
5
5
5
7
12
13
13
13
14
15
15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H30D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SELFSAT H30D

Summary of Contents for SELFSAT H30D

  • Page 1: Table Of Contents

    Contents What is SELFSAT-H30D Travel Kit? ｜ What is SELFSAT-H30D Travel Kit? ................

  • Page 2: What Is Selfsat-H30D Travel Kit

    • All the instructions should be followed in order to avoid any technical problems. • Any electric or magnetic field close to the SELFSAT-H30D Travel Kit may cause a bad reception or even cut off the signal completely. • Do not drill the plastic cover of the antenna, which seals the antenna from moisture.

  • Page 3: Box Content

    Contents Symbol Part name Image Quantity Antenna Body Angle Bracket Multi-Functional Base Suction cup Fix Plate 10m Coaxial Cable with F-Connector (Optional) Manual Carrying case Compass L type bolt U type bolt M6x65 Hex M6 Knob Nuts M8 Knob Nuts M6x18 M6x60...

  • Page 4: How To Install

    Think about the way you might pass your cable in a discreet way from the SELFSAT-H30D Travel Kit to your Set top Box. The antenna should not be too distant from your satellite receiver; a cable longer than 30 meters may decrease the quality of the signal.

  • Page 5: Step 2: Check Information

    Step 2: Check Information In order to install antenna, you need to find skew, elevation and azimuth angle by referring the table on the back of the manual. If you can’t find your location, please refer to the information of the nearest place from your location.
  • Page 6 - Pull out the Base Support, then put it on the plane Fold the Multi-Functional Base - Use the two M6*65mm Hex. Head Screws and two M6 Knob Nuts to fasten the Multi-Functional Base...

  • Page 7: C) Installing And Fixing The Base Of The Camping Set

    C) Installing and fixing the base of the camping set Type 1 Take the folded Multi-Functional Base on the table Putt he long side of L-Type Bolt into the Fix Plate and the short side into the Multi-Functional Base Use the M8 Knob Nut to fasten the Fix Plate and the Multi-Functional Base Insert the Dish Set onto the Multi-Functional Base and M6*25mm Knob Screw to fasten the Camping-Set on the table M6 x 25mm...
  • Page 8 Type 2 Put the folded Multi-Function Base along a mast and insert the U-Type Bolt into the Multi-Functional Base. Then use two M6 Knob Nuts to fasten the Multi-Functional Base on the mast. Insert the Dish Set onto the Multi-Functional Base and use M6*25mm Knob Screw to fasten the Camping-Set.
  • Page 9 Type 4 Upright the handle of the suction cup, then push it on the plane Press the handle of the suction cup backwards to fix the suction cup base Push Make a sound of „Click“ Lightly loosen the M6 Knob Nut, then slide the folded Multi-Functional Base into the suction cup set to the end (see red arrow below)
  • Page 10 Insert the Dish Set onto the Multi-Functional Base and use M6*25mm Knob Screw to fasten the Camping-Set M6 x 25mm Knob Screw Type 5 Upright the handle of the suction cup, then push it on the plane Press the handle of the suction cup backwards to fix the suction cup base Push Make a sound of „Click“...
  • Page 11 Slightly loosen the M6 Knob Nut Slide the folded Multi-Functional Base into the suction cup set to the end (see red arrow below) Tighten the M6 Knob Nut to fasten the Multi-Functional Base on the suction cup Insert the Dish-Set onto the Multi-Functional Base and tighten the M6*25mm Knob Screw M6 x 25mm Knob Screw...

  • Page 12: D) Adjusting Azimuth And Elevation

    D) Adjusting azimuth and elevation Adjusting the azimuth With opened Multi-Functional Base - Find the suitable azimuth and tighten the M6*25mm Knob Screw to fasten AZ/EL M6 x 25mm Knob Screw With folded Multi-Functional Base - Find the suitable azimuth and tighten the M6*25mm Knob Screw to fasten AZ/EL M6 x 25mm Knob Screw...

  • Page 13: Step 4 : Connecting The Antenna And The Set Top Box

    Adjusting the elevation - Find the suitable elevation and tighten the M6 Knob Nut M6 x 25mm Knob nut Step 4 : Connecting the Antenna and the Set top box Once you have installed the antenna in an open loop space and mounted the way you want it to be the next step is to connect it all together.

  • Page 14: Step 5 : Fine Tuning And Fix The Bracket

    Step 5 : Fine Tuning and Fix the Bracket Once fine tuning is completed for signal reception, please tighten bolt and nut. Once all connected, turn on the TV and the Satellite receiver. Select the Antenna Pointing Menu on your set top box. You can check signal level on your TV.

  • Page 15: Troubleshooting Check List For Initial Installation

    Troubleshooting Check List for Initial Installation If the signal is not found, be sure the receiver user manual and the antenna user manual have been followed closely, check the following: • Make sure all cable connections are correct and each connection is seated / tightened properly •...
