ITT McDonnell & Miller 64 Series Installation & Maintenance Instructions Manual

Low water cut-off

Advertisement

Quick Links

Series 64
Low Water Cut-Off
Typical Applications:
- Primary or secondary low water cut-off
for hot water and steam boilers.
- Low water cut-off
- High water cut-off
- Alarm actuator
OPERATION
Maximum Boiler Pressure: 50 psi (3.5 kg/cm
Electrical Ratings
Motor Switch Rating (Amperes)
Voltage
Full Load
120 VAC
7.2
240 VAC
3.6
NOTE: 11MV is rated 24VA @ 24VAC to 120VAC.
• Before using this product read and understand instructions.
• Save these instructions for future reference.
• All work must be performed by qualified personnel trained in the proper application, instal-
lation, and maintenance of plumbing, steam, and electrical equipment and/or systems in
accordance with all applicable codes and ordinances.
• To prevent serious burns, the boiler must be cooled to 80˚F (27˚C) and the pressure must be
0 psi (0 bar) before servicing.
• To prevent electrical shock, turn off the electrical power before making electrical connections.
• This low water cut-off must be installed in series with all other limit and operating controls
installed on the boiler. After installation, check for proper operation of all of the limit and
operating controls, before leaving the site.
• We recommend that secondary (redundant) Low Water Cut-Off controls be installed on all
steam boilers with heat input greater than 400,000 BTU/hour or operating above 15 psi of
steam pressure. At least two controls should be connected in series with the burner control
circuit to provide safety redundancy protection should the boiler experience a low water
condition. Moreover, at each annual outage, the low water cut-offs should be dismantled,
inspected, cleaned, and checked for proper calibration and performance.
• To prevent serious personal injury from steam blow down, connect a drain pipe to the control
opening to avoid exposure to steam discharge.
• To prevent a fire, do not use this low water cut-off to switch currents over 7.4A, 1/3 Hp at
120 VAC or 3.7A, 1/3 Hp at 240 VAC, unless a starter or relay is used in conjunction with it.
Failure to follow this warning could cause property damage, personal injury or death.
®
Locked Rotor
Pilot Duty
43.2
120 VA at
120 or 240 VAC
21.6
CUT-OFF
LEVEL
Model 64
2
)
CUT-OFF
LEVEL
Model 64-CB
WARNING
McDonnell & Miller
Installation & Maintenance
Instructions
MM-200(E)
CUT-OFF
LEVEL
Model 64-A
Model 764

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the McDonnell & Miller 64 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for ITT McDonnell & Miller 64 Series

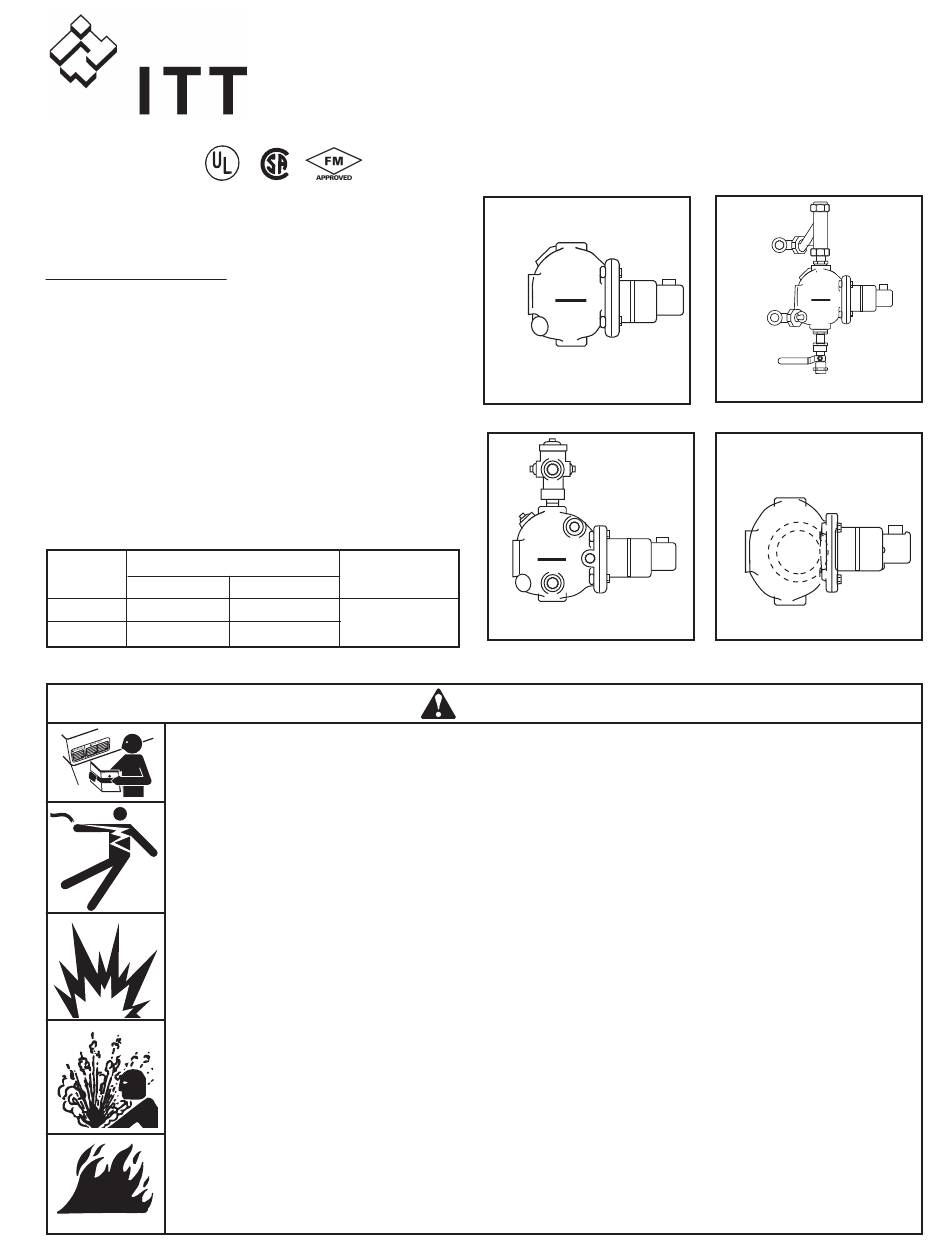

  • Page 1 McDonnell & Miller Installation & Maintenance Instructions MM-200(E) Series 64 ® Low Water Cut-Off Typical Applications: - Primary or secondary low water cut-off CUT-OFF CUT-OFF LEVEL LEVEL for hot water and steam boilers. - Low water cut-off - High water cut-off Model 64-A Model 64 - Alarm actuator...
  • Page 2: Installation

    INSTALLATION – Model 64 – For Steam Boilers with 1” (25mm) Equalizing Lines TOOLS NEEDED: One (1) flathead screwdriver and two (2) pipe wrenches. STEP 1 - Determine the Location of the Low Water Cut-Off a. Whether the gauge glass is mounted directly into the boiler or on an independent water column, the cut-off line on the 64 body casting should be mounted 1/2"...
  • Page 3 INSTALLATION – Model 64 – For Hot Water Boilers with 1" (25mm) Equalizing Lines TOOLS NEEDED: One (1) flathead screwdriver and two (2) pipe wrenches. STEP 1 - Determine the Location of the Low Water Cut-Off a. The line on the casting of the model 64 must be installed above the lowest permissible water level determined by the boiler manufacturer.
  • Page 4 INSTALLATION – Model 764 – For Steam or Hot Water Boilers TOOLS NEEDED: One (1) flathead screwdriver and two (2) pipe wrenches. STEP 1 - For Steam or Hot Water Boilers where 2 1/2” (65mm) Tapping is Provided a. See figure 1. The 2 1/2" (65mm) tapping on DO NOT REDUCE the boiler has to be above the minimum safe THIS 2 1/2"...
  • Page 5: Step 1 - Preparing The Boiler

    INSTALLATION – Model 64-A – For Steam Boilers Using Quick Hook-up Fittings TOOLS NEEDED: One (1) flathead screwdriver, two (2) pipe wrenches, and an adjustable wrench. STEP 1 - Preparing the Boiler a. Remove gauge glass and its trim from the boiler. STEP 2 - Installation of the Model 64-A a.
  • Page 6: Wiring Instructions

    Wiring Instructions WARNING • To prevent electrical shock, turn off the electrical power before making electrical connections. • This low water cut-off must be installed in series with all other limit and operating controls installed on the boiler. After installation, check for proper operation of all of the limit and operating controls, before leaving the site.
  • Page 7 Diagram 1 Diagram 2 SCHEMATIC OF TWIN SWITCH INTERNAL OPERATION USED AS MAIN LINE SWITCH NORMAL WATER LEVEL NEUTRAL WIRE TO BURNER HOT WIRE FEEDER OR ALARM SAFETY OPERATING LEVEL SWITCH HOT WIRE TO ALARM LOW WATER CUT-OFF NEUTRAL WIRE OPERATING LEVEL Diagram 3 Diagram 4...
  • Page 8: Maintenance

    ©2006 ITT Corporation Printed in U.S.A. 11-06 245632 8200 N. Austin Ave. Morton Grove, IL 60053 tel: 847-966-3700 fax: 847-966-9052 www.mcdonnellmiller.com...
