Stoneridge GNSS Repeater Manual
Stoneridge Electronics Ltd
Copyright
The information contained in this document is the property of Stoneridge
Electronics Ltd. and should not be reproduced, revealed or appropriated,
either in whole or in part, without the written authority of Stoneridge, Inc.
DD 56171 Rev 01
1
© Stoneridge Electronics Ltd
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Stoneridge OPTIMO
Summary of Contents for Stoneridge OPTIMO

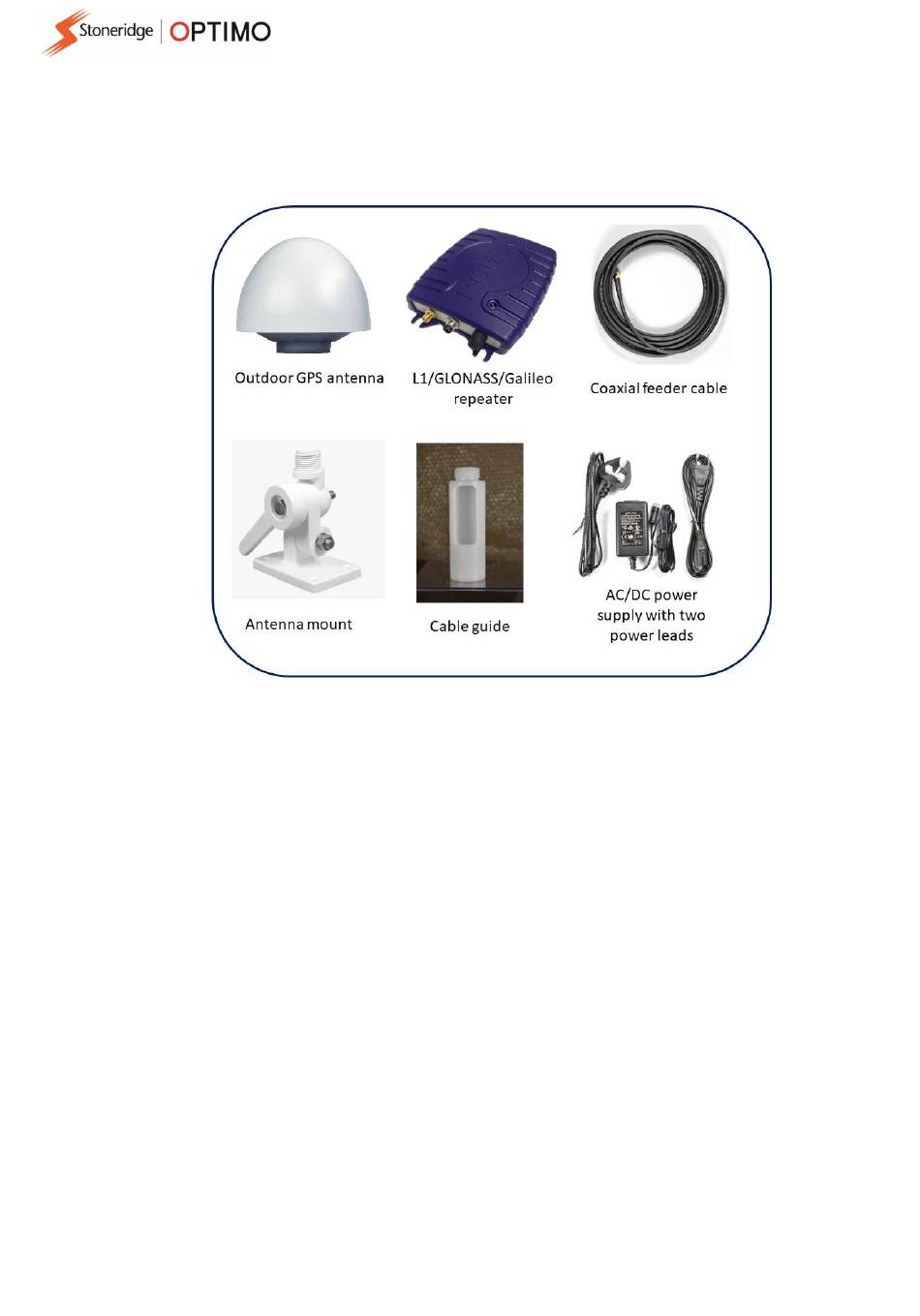

- Page 1 The information contained in this document is the property of Stoneridge Electronics Ltd. and should not be reproduced, revealed or appropriated, either in whole or in part, without the written authority of Stoneridge, Inc. DD 56171 Rev 01 © Stoneridge Electronics Ltd...

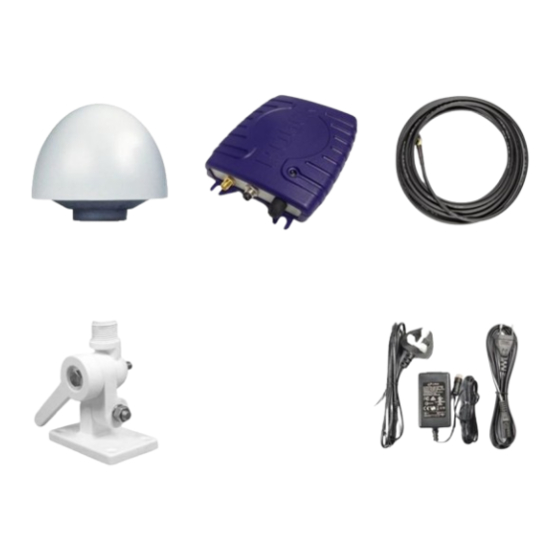

- Page 2 1. Outdoor Antenna Installation Feed the cable up through the cable guide and screw on to the antenna. Screw the antenna on to the top of the cable guide, being careful not to twist the cable. Screw the antenna mount onto the bottom of the cable guide.
- Page 3 2. Indoor Antenna Installation Install the repeater unit by fixing it to a solid surface, within 2 metres of a mains socket. The surface can be a ceiling or a wall; the repeater can be mounted vertically or horizontally. Connect the antenna cable to the antenna socket on the repeater unit and connect the AC/DC power adapter.
- Page 4 3. Adjustment/set up After power up, the LED should flash for a few seconds during the start-up phase. Turn the gain control down to its lowest setting (anticlockwise) The LED will flash green, indicating too little input signal. Slowly turn the gain control up (clockwise) and note that the LED changes to solid green. Keep turning the gain up until the LED changes to red.
- Page 5 4. Troubleshooting GPS receiver equipment cannot receive signals when positioned next to the repeater. • Check that +5VDC is present on the cable where it connects to the antenna. The repeater is emitting 5V DC to power the low-noise amplifier (LNA) in the antenna. (Centre pin +ve; connector shell -ve) •...
