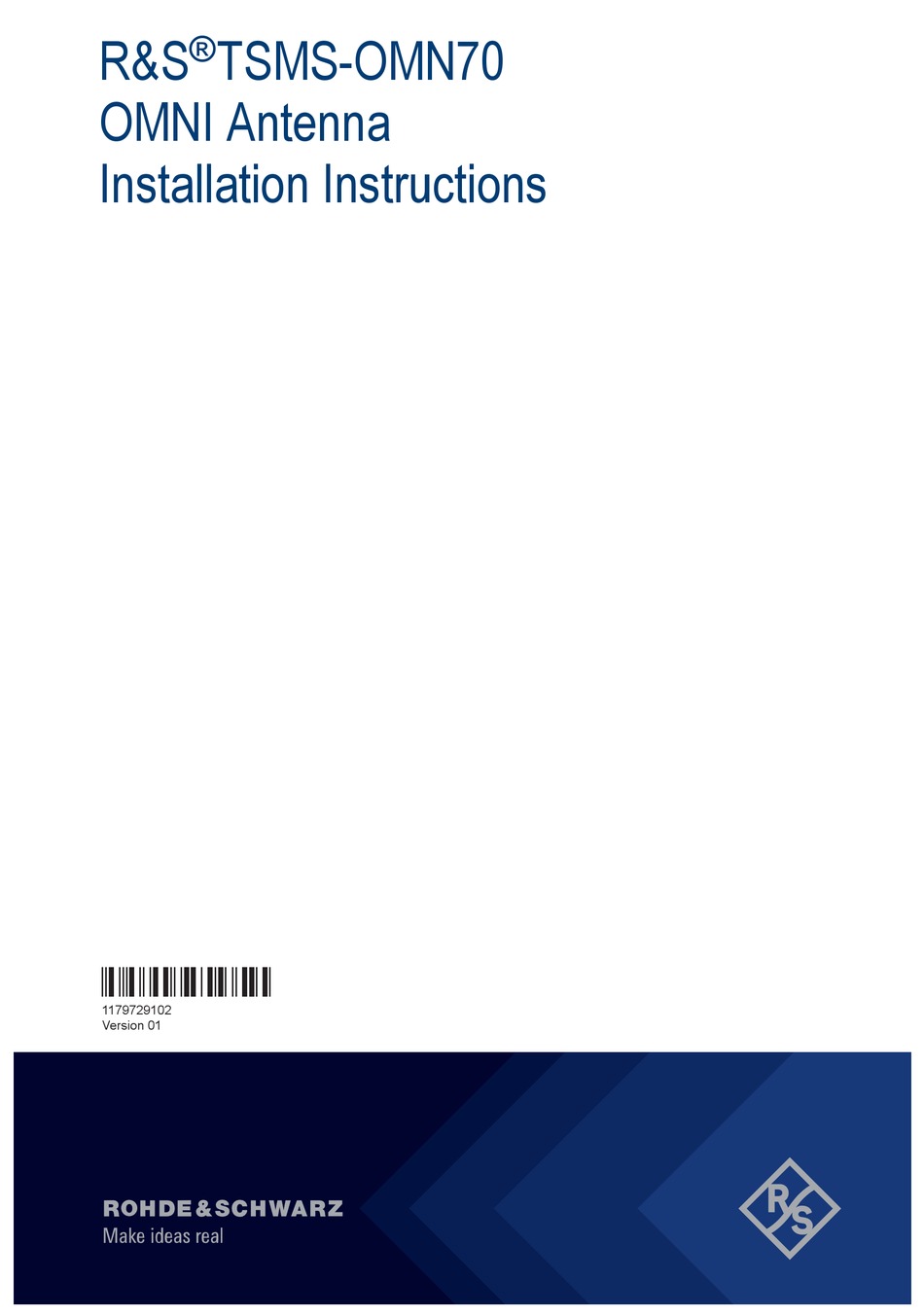

- Page 1 ® R&S TSMS-OMN70 OMNI Antenna Installation Instructions (;ÝÖé2) 1179729102 Version 01...
- Page 2 This document describes the following R&S TSMS-OMN70 models: ● ® R&S TSMS-OMN70 omnidirectional antenna 17 GHz to 70 GHz (4902.6000.02) © 2023 Rohde & Schwarz GmbH & Co. KG Muehldorfstr. 15, 81671 Muenchen, Germany Phone: +49 89 41 29 - 0 Email: info@rohde-schwarz.com...
-
Page 3: Table Of Contents
® Contents R&S TSMS-OMN70 Contents 1 About the R&S TSMS-OMN70............... 5 2 Checking out the R&S TSMS-OMN70...........6 3 Connecting the R&S TSMS-OMN70............7 Connecting to the R&S TSMS53DC................7 Connecting to the holder R&S FR4-5G-A3..............8 4 Contacting customer support.............10 Installation Instructions 1179.7291.02 ─ 01... - Page 4 ® Contents R&S TSMS-OMN70 Installation Instructions 1179.7291.02 ─ 01...
-
Page 5: About The R&S Tsms-Omn70
The R&S TSMS-OMN70 is a super wideband omnidirectional antenna for mm-wave frequency range that fits for all use-cases of the R&S TSMS53DC super wideband ultra compact downconverter. The frequency rage of the R&S TSMS-OMN70 is wide. The antenna can be used: ●... -
Page 6: Checking Out The R&S Tsms-Omn70
If the delivery is incomplete or equipment is damaged, contact Rohde & Schwarz. Parts list incl. accessories Accessory parts are provided for all use cases: ● Omnidirectional antenna R&S TSMS-OMN70, order number 4902.6000.02. ● 1.35m RF cable (2.4mm connector) R&S TSME-ZQC, order number 3712.0912.02. ●... -
Page 7: Connecting The R&S Tsms-Omn70
● R&S TSME-ZQC is available. RF in sub 6 or sub 17 GHz range: connect the R&S TSMS-OMN70 to the RF In (RF Bypass) connector of the R&S TSMS53DC 1. Use an RF cable with an SMA plug adapter (2.4mm/1.85mm to SMA). -
Page 8: Connecting To The Holder R&S Fr4-5G-A3
Torque the nut to the specified limit using a calibrated torque wrench. 3. Connect the cable to the RPC 1.85 mm connector of the R&S TSMS-OMN70. RF in the 17 GHz to 53 GHz range: connect to 1.85 mm (V) connector 1. - Page 9 ® Connecting the R&S TSMS-OMN70 R&S TSMS-OMN70 Connecting to the holder R&S FR4-5G-A3 1 = R&S TSMS-OMN70 2 = R&S FR4-5G-A3 2. For details on how to attach the antenna stick holder to the FR4 backpack, see the Freerider 4 user manual.
-
Page 10: Contacting Customer Support
® Contacting customer support R&S TSMS-OMN70 4 Contacting customer support Technical support – where and when you need it For quick, expert help with any Rohde & Schwarz product, contact our customer sup- port center. A team of highly qualified engineers provides support and works with you to find a solution to your query on any aspect of the operation, programming or applica- tions of Rohde &...
