Antenna mounting option

Advertisement

®

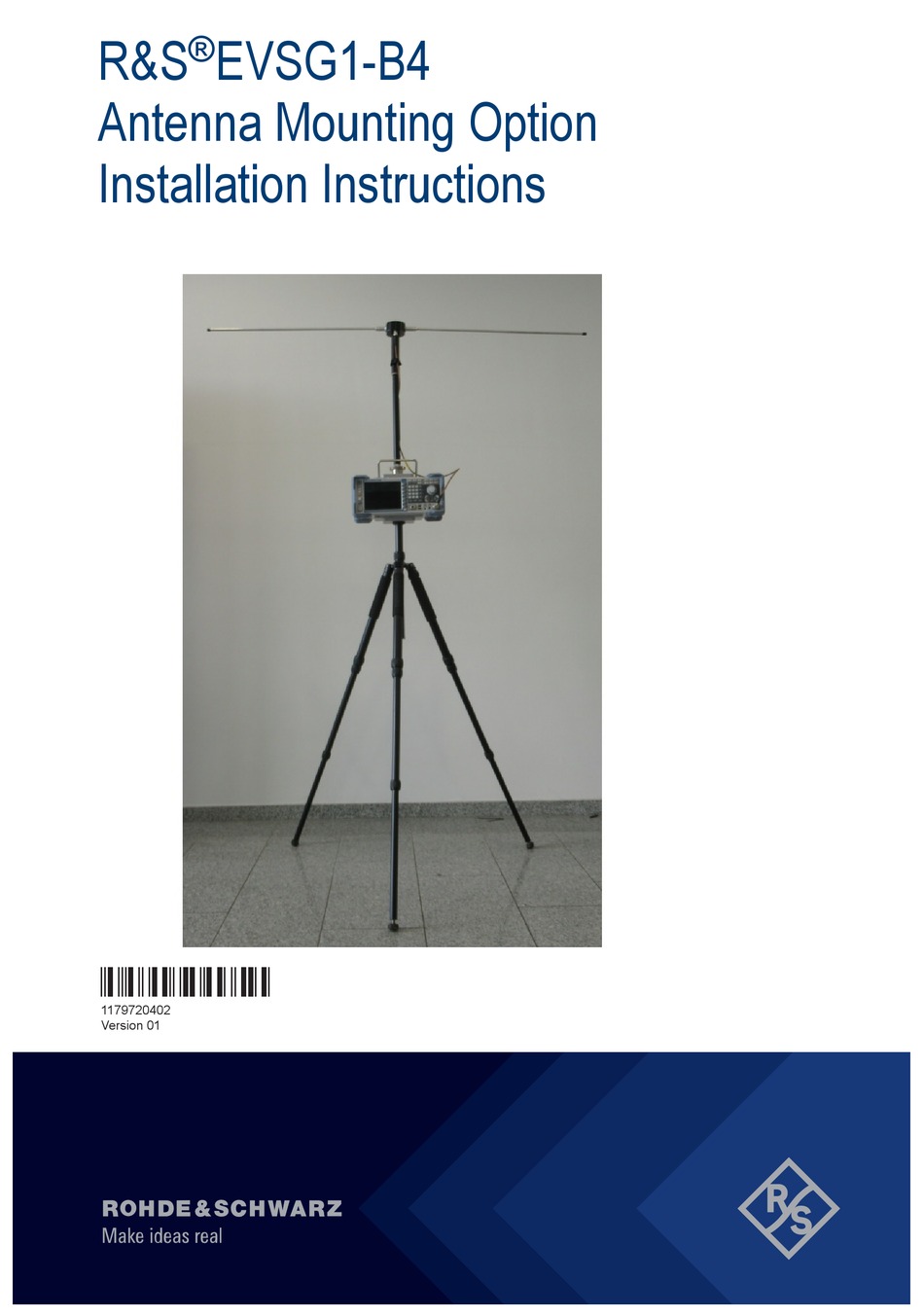

R&S
EVSG1-B4
Antenna Mounting Option
Installation Instructions
(;ÝÖ42)
1179720402
Version 01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVSG1-B4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Rohde & Schwarz EVSG1-B4

  • Page 1 ® R&S EVSG1-B4 Antenna Mounting Option Installation Instructions (;ÝÖ42) 1179720402 Version 01...
  • Page 2 ® This document describes the R&S EVSG1-B4 antenna mounting option (1330.2000.02) provided for ® R&S EVSG1000 (1329.8009.02). © 2023 Rohde & Schwarz GmbH & Co. KG Muehldorfstr. 15, 81671 Muenchen, Germany Phone: +49 89 41 29 - 0 Email: info@rohde-schwarz.com Internet: www.rohde-schwarz.com...
  • Page 3 ® 1 About the R&S EVSG-B4 The R&S EVSG1-B4 Antenna Mounting option is an alternative housing for the R&S EVSG1000 that includes two premounted adapters: ● An antenna adapter on the top panel of the instrument, designed for use with the ®...
  • Page 4 ® Checking out the R&S EVSG1-B4 Antenna Mounting option R&S EVSG1-B4 Table 2-1: Factory-mounted adapters for the R&S EVSG1000 Antenna adapter (top, BSW 5/8" thread) Tripod adapter (bottom, UNC 3/8" thread) Overview of the R&S EVSG1-B4 Antenna Mounting option Figure 2-1: Antenna mounting option components...
  • Page 5 EVSG1-B4 You can mount the ILS/VOR dipole antenna to the R&S EVSG1000 directly, or insert the metal mast. The R&S EVSG1-B4 Antenna Mounting option provides different adapter bolts for both mounting options. Table 2-2: Mounting options for the antenna on the R&S EVSG1000 with the B4 option...
  • Page 6 ® Mounting instructions R&S EVSG1-B4 4. Screw the antenna head without the dipole rods in the open end of the metal mast. 5. Insert the dipole rods in the antenna head: ● For 330 MHz range: short rods ● For 110 MHz range: long rods 6.
  • Page 7 ® Mounting instructions R&S EVSG1-B4 The antenna is now secured in the correct position. 7. Connect the RF cable from the antenna to the RF input connector of the R&S EVSG1000. The R&S EVSG1000 is ready for stationary measurement. Do not transport the R&S EVSG1000 while the antenna is mounted. The antenna could fall off and cause damage.
  • Page 8 ® Disposal R&S EVSG1-B4 4 Disposal Rohde & Schwarz is committed to making careful, ecologically sound use of natural resources and minimizing the environmental footprint of our products. Help us by dis- posing of waste in a way that causes minimum environmental impact.
