ECOVACS WINBOT 880 - Window Cleaning Robot Manual

Package Contents and Technical Specifications

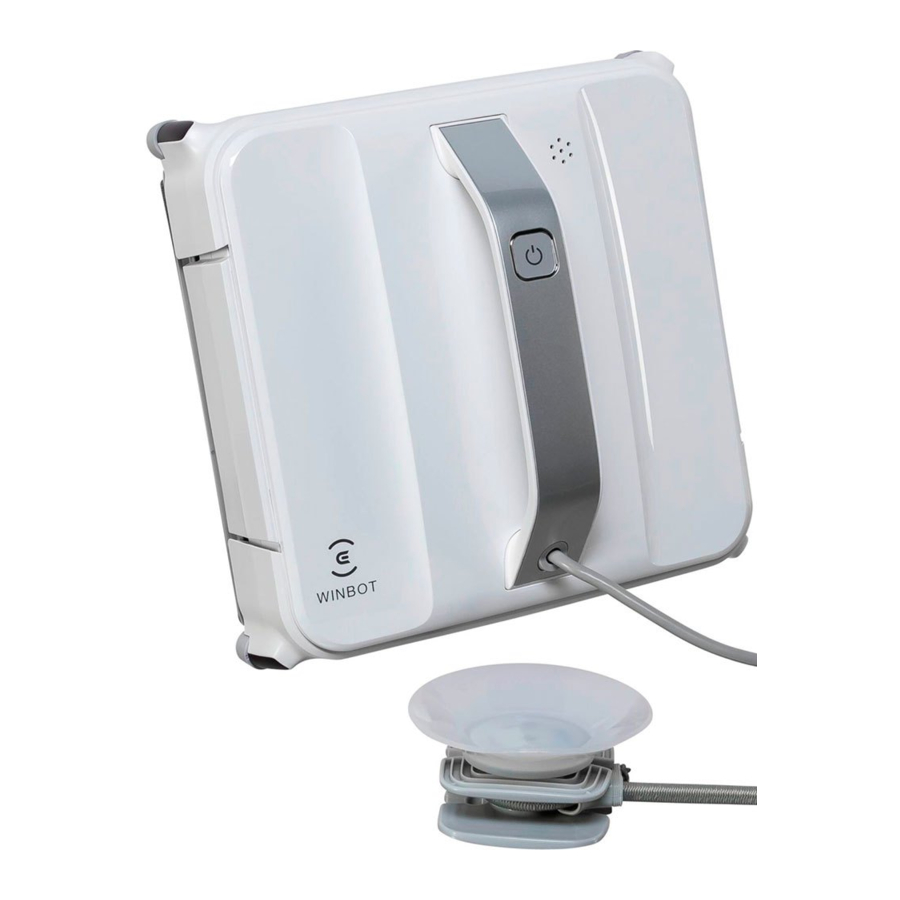

Product Diagram WINBOT

Product Diagram WINBOT

Remote Control

Remote Control

warningNote: To change batteries in Remote Control, pull off the battery cover of Remote Control, take out the old batteries, insert batteries with correct polarity, and slide the battery cover on the back, ensuring it clicks closed.

Operating WINBOT

Notes Before Cleaning


Remove Protection Strips

Before Cleaning
Make sure Safety Pod and tether have been connected with WINBOT before using. (Connected by default. Do not take them down at random.)

warning Note: Do not use WINBOT on a framed window with a frame narrower than 3 mm(0.1")

Quick Start

  1. Connect WINBOT Power Cord, Power Adapter and Plug
    Connect WINBOT Power Cord, Power Adapter and Plug
  2. Attach the Safety Pod
    Attach the Safety Pod
    To make the safety Pod firmly attached on the glass, please use a dry cloth to clean the Safety Pod bottom and an area where will be attached the safety pod on the glass.
  3. Spray Cleaning Solution
    Spray Cleaning Solution

    warning Note: Do not over-spray Cleaning Solution as doing so may cause the driving treads to slip.
  4. Start
    Turn on Power Switch. Press Start/Pause Button. Attach the WINBOT on the glass when hearing the fan working. WINBOT starts after it has attached successfully to the glass.
    Start
    warning Note: Keep objects away from WINBOT's Fan to avoid blockage. Place WINBOT on the window at least 10cm (4") from window corners or other obstacles. Clean an area to place WINBOT firstly if the glass with much dirty and dust.

Operating During Working

1 Select Cleaning Mode

  1. AUTO Cleaning Mode
    This is the most commonly used mode and is most suitable for regular cleaning.
    AUTO Cleaning Mode
  2. Deep Cleaning Mode
    This mode can be used for a better cleaning performance as WINBOT cleans in two directions separately.
  3. Spot Cleaning Mode
    This mode can be used for an area with concentrated dirt and dust.
    Spot Cleaning Mode
  1. Pause
    Pause
    warning Note: The Direction Control Buttons on the Remote Control cannot be used until WINBOT is paused.
  2. Replace the Cleaning Pad
    Pause WINBOT and press on WINBOT for 5 seconds to take WINBOT down. Remove the dirty Cleaning Pad from the WINBOT and place a clean new one on it.
    Replace the Cleaning Pad

    warning Note: The gray microfiber side faces out. Make sure the side with is attached to WINBOT Cleaning Pad Plate with the same . Make sure the Cleaning Pad correctly attached. Do not cover the Squeegee or Edge Detection Sensors.

Finish Work

  1. Remove WINBOT
    Remove WINBOT
  2. Power Off

  3. Remove Safety Pod
    Remove Safety Pod
  4. Unplug WINBOT

Maintenance

Cleaning Pad

Cleaning Pad

warning Note:
Wash with mild detergent.
Do NOT use a wet Cleaning Pad on WINBOT or it may slip on the window.
Washing the Cleaning Pad regularly can extend its service life.
If the Cleaning Pad becomes worn or no longer fits exactly within the fastener area, replace it with a new one to achieve optimal cleaning performance.

Fan, Side Rollers, Edge Detection Sensors and Squeegees

Fan

Edge Detection Sensors

Side Rollers
Side Rollers

Squeegees

Driving Treads






warning Note: Inspect the Driving Treads by using the Direction Control Buttons on the Remote Control. Stop the Driving Treads if you see dirt on them.

Status Indicator Light

Status Indicator Light flashes BLUE slowly. This is normal. WINBOT is paused or charging.
Status Indicator Light stops glowing BLUE. This is normal. WINBOT is coming to sleep mode. Press to make it up.
Status Indicator Light glows a continuous BLUE. This is normal. WINBOT has successfully adhered itself to the glass and is ready to clean.
Status Indicator Light flashes RED. WINBOT has a problem. Please refer to Troubleshooting, for details.
Status Indicator Light glows a continuous RED WINBOT has low battery, please take it down.
WINBOT emits beeps. WINBOT beeps in following situations:
WINBOT is powered on.
WINBOT finishes cleaning.
WINBOT has a problem.

Troubleshooting

NO. Malfunction Possible Causes Solutions
1 Remote Control cannot control WINBOT.

Remote Control is not paired with WINBOT

(WINBOT comes with a paired Remote Control. If Remote Control becomes unpaired or has been exchanged, it can be paired again).

Within 5 seconds of powering ON WINBOT, press and hold on WINBOT and on the Remote Control at the same time. Pairing is complete when WINBOT beeps and flashes RED and GREEN.
2 WINBOT moves in an irregular pattern during cleaning. There is too much dirt and debris on the glass.
  1. Spray additional Cleaning Solution on the Cleaning Pad.
  2. Clean the Driving Treads as described in "Maintenance".
  3. Replace the Cleaning Pad and restart the cleaning cycle.
  4. Use the Remote Control to control the cleaning by pressing Direction Buttons.
  5. Clean the window by hand first and use WINBOT for regular cleaning after that.
* WINBOT is intended to be used for maintenance cleaning on common windows. The product is NOT designed to replace heavy duty or first time cleaning.
The Cleaning Pad is too dirty.
The Cleaning Pad is too wet.
The Driving Treads are too dirty.
The Driving Treads are worn. Please check the surface of the driving treads, see if there is any heavy wear, crack or breakage. If so, please contact customer service.
3 WINBOT don't move. The Cleaning Pad is attached Please check the surface of the driving treads, see if there is any heavy wear, crack or breakage. If so, please contact customer service.
There is a gap on the surface of the glass. Hold the Safety Tether or WINBOT Power Cord. Meanwhile, press Direction Buttons on the Remote Control to let the WINBOT leave the gap or barrier.
The cleaning pad plate is blocked due to small obstacles on the glass.
4 WINBOT move hard or in circle. The driving treads are stuck. Check if there is any dust or debris on the Driving Treads. If so, please clean the Driving Treads as described in "Maintenance". Start WINBOT again.
If problem persists, please contact customer service.
5 WINBOT is hanging around or moves in an irregular pattern during cleaning. The bumper rail is stuck. Take WINBOT down from the window. Check if the bumper rail is stuck. Clean the bumper rail and restart WINBOT. If problem persists, please contact customer service.
The bumper rail is broken.
6 WINBOT is hanging around or moves in an irregular pattern during cleaning. Edge Detection Sensor signal abnormity.
  1. Remove the Cleaning Pad and re-attach it making sure it will not cover or affect the Edge Detection Sensors.
  2. Clean the Edge Detection Sensors as described in "Maintenance".
  3. If the problem persists, please contact Customer Service.
Fan malfunction.
  1. Clean the Fan as described in "Maintenance".
  2. If the problem persists, please contact Customer Service.
7 WINBOT stops moving after adhered to the glass. WINBOT is too near to the edge of the glass or obstacles. Use the Direction Control buttons on the Remote Control to move WINBOT away from the problem area and at least 10cm/4" from window corners and obstacles. Restart WINBOT. Or Remove WINBOT from the window and put it at least 10cm/4" from window corners and obstacles. Restart WINBOT.
8 WINBOT is stuck and cannot move, be controlled by the Remote Control. It is stuck by obstacles. Fix the safety pod and tether firmly. Hold WINBOT power cord and meanwhile, use the Direction Control Buttons to move WINBOT away from the stuck area. If the problem persists, please contact Customer Service.

Technical Specifications

WINBOT Model WB10G
Rated Input 24V 3.75A Rated Power 80W
Remote Control
Model RC1712
Rated Input Voltage 3V
Power Adapter: EA10952
Input: 100-240V 50-60Hz 1.5A or 100-240V 50/60Hz 1.5A Output: 24V 3.75A
