79" x 91" Flat-Top
1
2
3
16
15
14
13
12
11
Foot push button holes
face backward

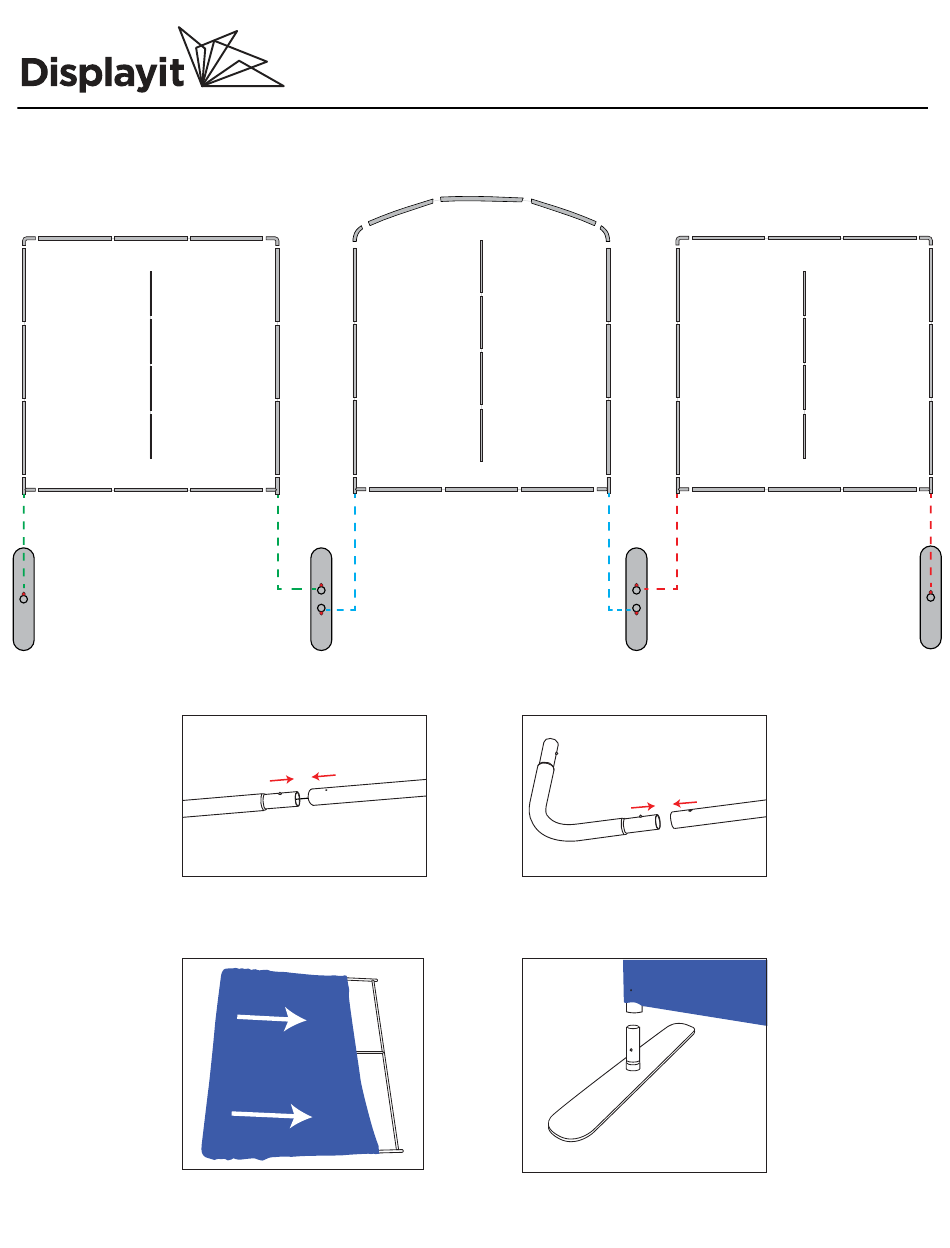

1. Straighten and assemble all
bungeed poles.
3. Pull pillowcase graphic over frame
and zip bottom closed.
20' Ensemble Tension Fabric Trade Show Display Kit E20K
1
4
16
5
15
6
14
7
13
8
12
10
9
79" x 101" Arch-Top
2
3
11
10
9
Foot push button holes
face forward
2. Assemble the frame by aligning
the stickers as seen in the frame
diagram above.
4. Attach the feet to the frame as
seen in the diagram above.
Assembly Instructions
79" x 91" Flat-Top
4
1
2
5
16
6
15
7
14
8
13
12
11
Foot push button holes
face backward
3
4
5
6
7
8
10
9
