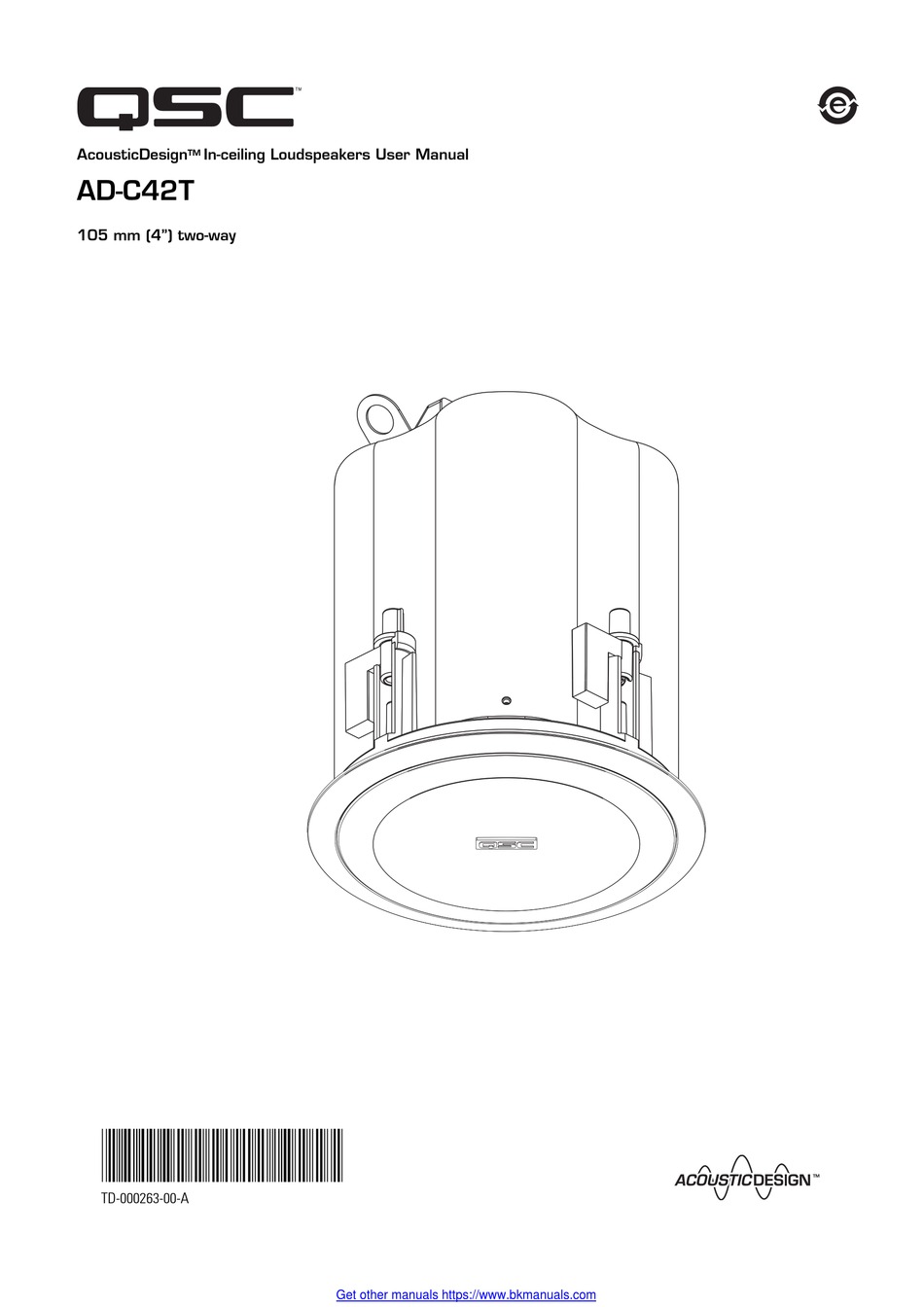

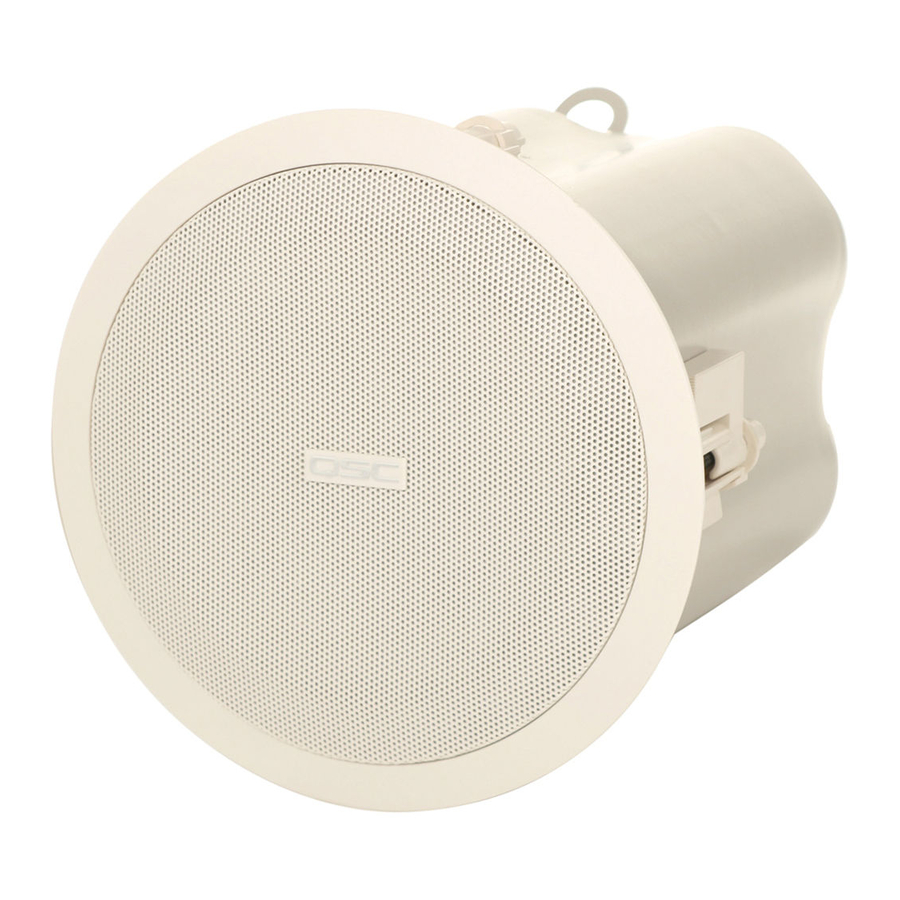

- Page 1 AcousticDesign In-ceiling Loudspeakers User Manual AD-C42T 105 mm (4”) two-way *TD-000263-00* TD-000263-00-A Get other manuals https://www.bkmanuals.com...
- Page 2 (USA only; other countries, see your dealer or distributor) Disclaimer QSC Audio Products, Inc. is not liable for any damage to amplifiers, or any other equipment that is caused by negligence or improper installation and/or use of this loudspeaker product.
-
Page 3: What's Included
Introduction Congratulations and thank you for your ceiling loudspeaker purchase. The AD-C42T mod- els offer excellent acoustic performance in an easy-to-install and attractive package. Please review these instructions carefully and follow the recommendations. Consult a licensed installation professional if you are uncertain about any mounting issues. The AD-C42T models feature a 4”... - Page 4 Grill Safety Clip Use the Secondary Support Tab! The cabinet and the grill both have a small loop of plastic line. The grill’s loop has a clip attached. Loudspeakers can potentially generate substantial vibra- Using the grill clip, attach the grill to the cabinet’s tion.
-
Page 5: Installation Procedure
Installation Procedure 1- Using the included C-ring or the dimensions provided, trace a cutout pattern onto the ceiling surface. 2- Cut the mounting hole. Use a sharp tool to avoid stressing or cracking the mounting sur- face. 3- Pull the wires through the hole. 4- Pass the two suspended ceiling support brackets through the hole and place as shown in the illustration. -
Page 6: Specifications
3- Maximum input power tested in accordance with IEC recommendations; 50 Hz to 20 kHz band limiting, 6 dB signal crest factor. Specifications are subject to change without notice. For detailed information, visit QSC’s web site at http://www.qscaudio.com or call us at 1-800-854-4079 (toll-free USA only) Get other manuals https://www.bkmanuals.com... - Page 7 AD-C42T Dimensions CUTOUT HOLE DIAMETER = 191 mm (7.50") USE C-RING FOR TEMPLATE MATERIAL THICKNESS RANGE FOR CLAMP MOUNTING = 5.6 - 19.0 mm (0.22" - 0.75") Get other manuals https://www.bkmanuals.com...
- Page 8 Customer Service FAX (714) 754-6173 World Wide Web: www.qscaudio.com E-mail:info@qscaudio.com service@qscaudio.com QSC Audio Products, Inc. 1675 MacArthur Boulevard Costa Mesa, California 92626 USA ©2007, “QSC” and the QSC logo are registered with the U.S. Patent and Trademark Office. Get other manuals https://www.bkmanuals.com...
