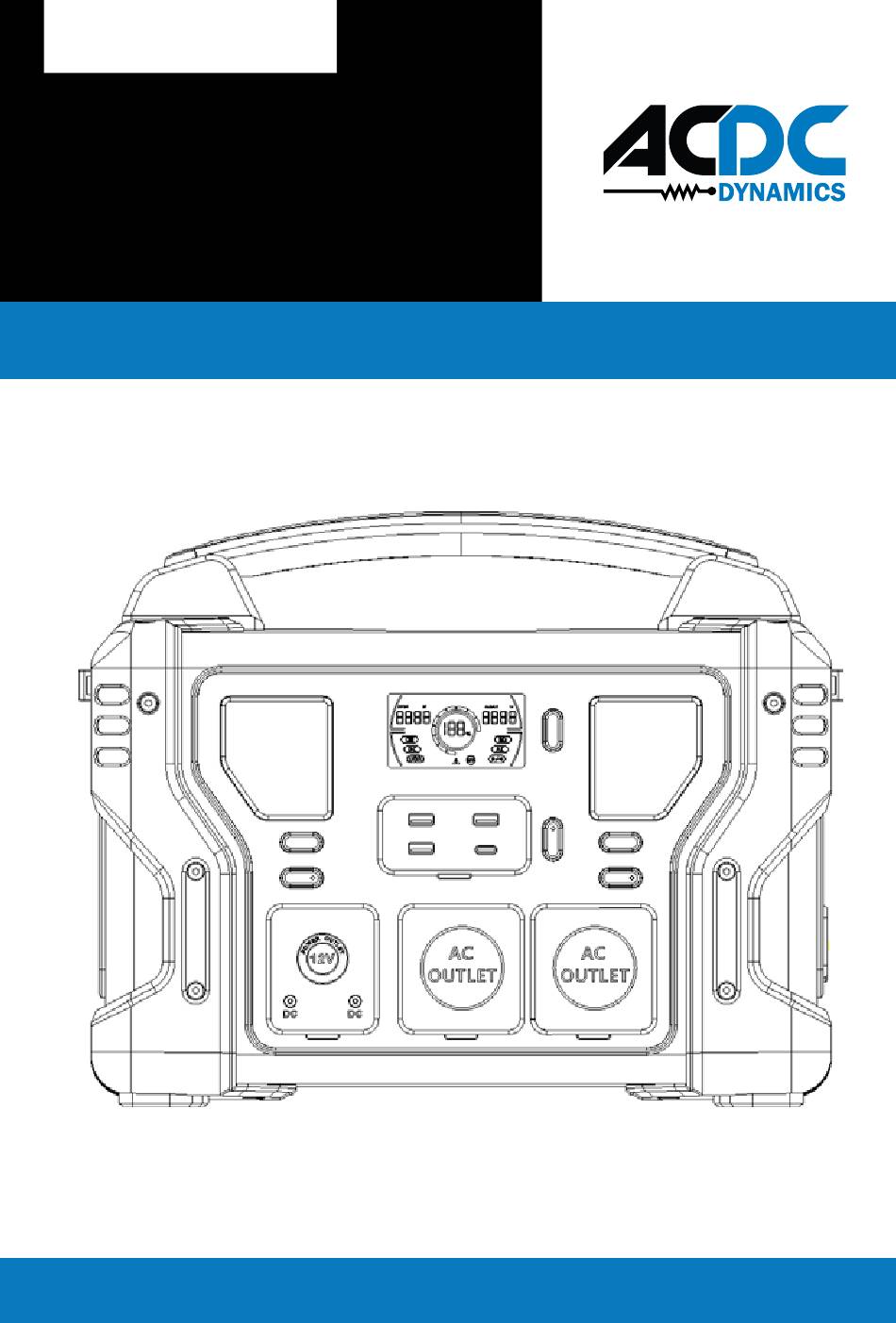

- Page 1 PORTABLE POWER STATION USER MANUAL www.acdc.co.za Recommended to fully charge PBU-1000W-UPS before use www.acdc.co.za T H I N K E L E C T R I C A L National Sales Centre - 010 202 3400 | Technical - 010 202 3500...
-
Page 2: General Specifications
1000W of pure sine wave AC power via the onboard AC output. Additionally, The PBU-1000W-UPS is able to support USB quick charging via the onboard 1 x USB PD port and 3 x USB A ports. - Page 3 Failure to observe these warnings can result in severe injury or death. •DO NOT use PBU-1000W-UPS in excess of its output rating. Overload outputs above rating may result in a risk of fire or injury to persons, even though we have built-in overload protection.
-
Page 4: Feature Details
11.Air Intake Vent with Cooling Fan 12.Solar Charging Input 13.AC input Note: No user-serviceable parts inside. Recommended to fully charge the PBU-1000W-UPS before use. BUTTON FEATURE 1. Power ON/OFF Button 2.USB Output Power ON/OFF Button 3.SOS mode & LED light Button AC Output Power ON/OFF Button 5.SOS mode &... -
Page 5: Lcd Features
LCD FEATURES A.Battery Level Indicator B. total Outputs Status C.LED Status D.AC Outputs Status E.UPS Status F.abnormality Status G.USB Outputs Status H.DC Outputs Status I.LED Status J. Inputs Status HOW TO CHARGE By solar panels 400W (12-75V 12A Max) about 3-5 hours depending on solar conditions By Car Port 12V 10A about 11-13 hours when car running... -
Page 6: What It Powers
WHAT IT POWERS Laptops (41.4Wh) 32" TV(60W) CPAP without heated Go pro (5.9Wh) Floodlight(4W) Around Around humidifier (15W) Around Around 19 Recharges 13 hours 53hours 135 Recharges 200 hours +MORE Mini Fridge(40W) DJ Drone(89.2Wh) Smartphone(10Wh) Switch(16Wh) Around Around Around Around 20 hours 9 Recharges 80 Recharges... -
Page 7: Function Buttons
FUNCTION BUTTONS POWER ON/OFF PBU-1000W-UPS Button ① is the master switch. Press Button ① to activate all buttons. Press Button ① to shut down the output(s)When not in use. SOS MODE & LED LIGHT Function available only when the Button ① activate . - Page 8 Press Button to shut down the output(s)When not in use.USB C OUTPUT(4) COOLING FAN(12) PORTABLE POWER STATION PBU-1000W-UPS utilizes an internal cooling fan to ensure the product is operating within the appropriate temperature range. PORTABLE POWER STATION PBU-1000W-UPS , when it experiences a higher output load, will automatically turn on the fan.
- Page 9 Provides the user live telemetry data on time to completely charge, or deplete the battery based upon the energy entering or leaving the battery. Highly recommend to fully charge PORTABLE POWER STATION PBU-1000W-UPS when first use. Higher battery level indicator show, more precise data will indicate.
- Page 10 CHARGING PORTABLE POWER STATION Connect the provided AC power cord to Input, and allow PORTABLE POWER STATION PBU-1000W-UPS to fully charge prior to use, approx. 2.5 - 3.5 hours. When charging, the LCD Screen will be illuminated, and the LCD display will...
- Page 11 POWERING / CHARGING DEVICES WITH PBU-1000W-UPS Select the type of outlet required by pressing the Output ON/OFF Button . The output port will NOT function until the appropriate button is pressed to activate the port. When activated, the indicator on the button will illuminate blue, indicating that the output(s) are active, and the LCD display will turn on and provide details on the charging output.
- Page 12 CLEANING PBU-1000W-UPS Be sure that PORTABLE POWER STATION is disconnected from all input power sources and output devices. Use a clean, dry, soft-lint-free cloth to wipe down it. Remove any debris, dirt, or other blockages on both side vents. When...
-
Page 13: Troubleshooting
TROUBLESHOOTING PORTABLE POWER STATION PBU-1000W-UPS WILL NOT CHARGE OR OPERATE connected devices: Ensure that the DC/USB/AC output ports are activated by pressing the Button(s) for the port(s) in use. Confirm the connected device is suitable for the PORTABLE POWER STATION... -
Page 14: Warranty Period
WARRANTY Limited Warranty Warranty to the original consumer purchaser that the PORTABLE POWER STATION will be free from defects in workmanship and material under normal consumer use during the applicable warranty period identified in the 'Warranty Period' section below, subject to the exclusions set forth below. This warranty statement sets forth our total and exclusive warranty obligation. - Page 15 WARNING (A) Read all the instructions before using the product. (B) To reduce the risk of injury, close supervision is necessary when the product is used near children. (C) Do not put fingers or hands into the product. (D) Use of an attachment not recommended or sold by power pack manufacturer may result in a risk of fire, electric shock, or injury to persons.
- Page 16 installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna.
