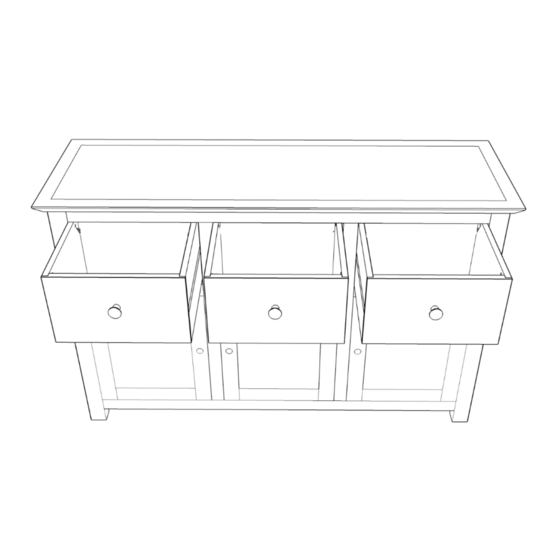

3+3 Sideboard
233 – A/W/M
Thank you for choosing this furniture.
BEFORE YOU START ASSEMBLY please store the carton at room temperature for 48 hours or more so the contents can acclimatise.
PLEASE RETAIN PACKAGING UNTIL YOU HAVE COMPLETED ASSEMBLY.
Information about your furniture.
Our furniture ranges have been carefully crafted from solid wood and natural wood veneers. Each piece of furniture has unique
characteristics such as knots, variances and graning. These are part of the natural character of the furniture itself.
Caring for your furniture.
Extreme temperature can cause slight movements in the wood itself so please avoid placing your furniture close to radiators or other direct
sources of heat. Humidity should also be avoided. Please avoid exposing your furniture to continued bright sunlight as it can affect the colour.
Any fluid should be removed as quickly as possible. Always lift your furniture when moving, as dragging can cause damage to your furniture or
flooring. Extreme changes in temperature & humidity during transit may result in a powder residue forming so silica gel bags have been included
to alleviate this natural occurrence. This residue is harmless and can easily be removed before assembly with a damp cloth and mild detergent.
After care.
Wipe the surfaces with a dry cloth and an occasional use of normal household polish. We also recommend you use household spray
polish occasionally on the drawer grooves and runners as this will aid use. Please do not use detergents or chemicals on your furniture.
Before you start assembly.
Please check that you have all the correct parts and fittings as detailed above. In the unlikely event of a part being damaged or
missing please mark the component or part on the diagram below and email your retailer. Alternatively, email
Please provide the following information so that your request can be dealt with ASAP
* Name * Address * Post Code * Tel number * Batch number (to be found at the bottom left of this page)
Additional parts only applied to model with skirting board
Batch No.
PARTS LIST
arisesunltd@gmail.com
A = x52
Dowel
B = x29
40mm Screw
C = x34
30mm Screw
D = x40
Nail
E = x3
Mag. Catch
F = x24
15mm screw
H = x6
25mm Bolt
G = x6
M = x6
Knob
35mm Screw
B = x4
N = x2
40mm Screw
60mm Screw
90 min
OR
Advertisement
Table of Contents
Related Manuals for BIG FURNITURE WAREHOUSE EDMONTON 233 A
Summary of Contents for BIG FURNITURE WAREHOUSE EDMONTON 233 A
- Page 1 3+3 Sideboard 233 – A/W/M 90 min Thank you for choosing this furniture. BEFORE YOU START ASSEMBLY please store the carton at room temperature for 48 hours or more so the contents can acclimatise. PLEASE RETAIN PACKAGING UNTIL YOU HAVE COMPLETED ASSEMBLY. Information about your furniture.
- Page 2 A = x4 Dowel B = x2 40mm Screw Tip: during assembly place unit onto a work C = x2 surface with a clean cover 30mm Screw A = x24 B = x6 Dowel 40mm Screw Tip: during assembly place unit onto a work surface with a clean cover...
- Page 3 Tip: during assembly place unit onto a work surface with a clean cover A = x4 Dowel B = x11 40mm Screw Tip: Place top of unit over the edge of the work surface to ensure the top does not mark during assembly D = x40 Nail...
- Page 4 M = x3 H = x3 G = x3 F = x24 E = x3 35mm Screw 25mm Bolt Knob 15mm Screw Mag. Catch M = x3 35mm Screw H = x3 Bolt G = x3 Knob C = x24 30mm Screw...
- Page 5 Tip: insert dowels from the inside of the drawers, pushing through so they sit level with the inside of the drawer side. Repeat for all drawers A = x6 Dowel Extra step only applicable for model with a skirting board B = x4 40mm Screw N = x2...
- Page 6 WARNING! TIPPING HAZARD – Unanchored furniture can tip over WARNING: CHECK FOR HIDDEN PIPES AND CABLES BEFORE DRILLING. IMPORTANT: IF YOUR WALLS ARE NOT SOLID LIKE BRICK OR STONE, YOU WILL REQUIRE SPECIALIST FITTINGS (NOT SUPPLIED) - Place fixing strip against the wall and mark position for drilling hole. - Drill hole in your wall to a depth of 30mm using a 6mm drill bit.
