- Page 1 27" LCD Monitor ACER XV273 X Service Service Service Acer Monitor XV273 X LIFECYCLE EXTENSION GUIDE...
-
Page 2: Table Of Contents
Contents Important Safety Notice............................ 3 1. Exploded view diagram with list of items ...................... 4 2. Mechanical Instruction ..........................5 3. Firmware Upgrade Process ........................20 4. Writing EDID Process ..........................20 5. FRU (Field Replaceable Unit) List ......................37 6. -
Page 3: Important Safety Notice
Important Safety Notice Proper service and repair is important to the safe, reliable operation of all ACER Company Equipment. The service procedures recommended by ACER and described in this service manual are effective methods of performing service operations. Some of these service operations require the use of tools specially designed for the purpose. -
Page 4: Exploded View Diagram With List Of Items
1. Exploded view diagram with list of items Item Description TPV Part No. ACER Part No. LEPCLQA2 LED BOARD 55.TCCM2.004 750GBU270HA30JN000 PANEL OPTION BOARD PTPCPQB8 PLPCHI541KQ7H ADAPTER BOARD 55.TG8M2.002 CBPCJE2C1QC MAIN BOARD #N/A USBLQA4 USB BOARD 55.TCMM2.003 KEPCLQA6 KEY BOARD 55.TCCM2.003... -
Page 5: Mechanical Instruction

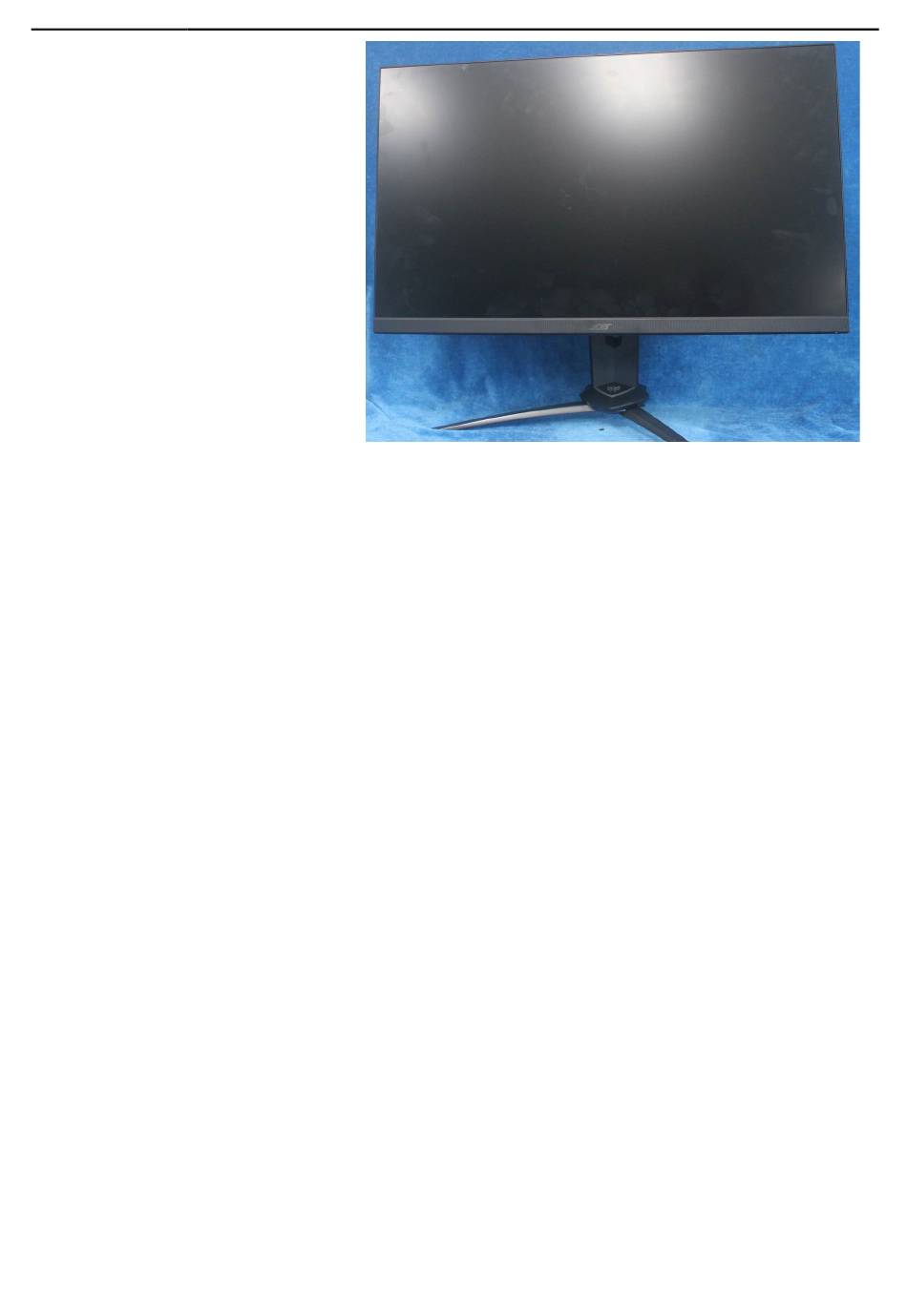

2. Mechanical Instruction Tools Required List the type and size of the tools that would typically can be used to disassemble the product to a point where components and materials requiring selective treatment can be removed. Tool Description: − Screwdriver (Phillip-head, Hexagonal head) −... - Page 6 2.1 Disassembly Procedures: S1. Push the button to remove the stand base assy, then unscrew the screws.
- Page 7 S2. Remove the REAR COVER. Use a tool (like picture using) to open all latches. (Be careful the position of the key board.) S3. Disconnect the cables to remove the rear cover.
- Page 8 S4. Unscrew the screws to remove the key board. S5. Tear up all the tapes, disconnect the cables and unscrew the screws to remove the side USB board, speakers and shield.
- Page 9 S6. Remove the screws to separate the panel and the Middle Frame/LED Board and the DECO BEZEL.
- Page 11 S7. Remove the mylar and the screw. Remove all of the screws to remove the power board, USB board and main board from mainframe...
- Page 12 S8. Remove the main board, USB board and power board. Disconnect the cables.
- Page 13 2.2 Assembly Procedures: S1. Prepare a main board, a power board, an USB board and some essential cables. Connect every cable as the below picture se a screwdriver to tighten the screws till the power board, main board, USB board with shield are firmly attached.
- Page 14 S3. Assemble the MIDDLE FRAME, DECO bezel, LED board and the panel. Use a screwdriver to tighten the screws.
- Page 16 S4. Put the shield on panel; connect cables (mainboard to panel and the power board to panel). Assemble the speakers and side USB board. Pasting all tapes. Put the Mylar slice（Note：refer to last page）marked the information of mainframe position on the panel. Mylar slice edge must be against the bezel.
- Page 17 S6. Prepare a rear cover, Assemble the key board.
- Page 18 S7. Connect the pins and screw the screws.
- Page 19 S8. Assembly the stand base ass’y.
-
Page 20: Firmware Upgrade Process
3. Firmware Upgrade Process 1. Materials list and connection USB port driver Mstar driver ISP TOOL 2. Install driver. 1. If you use this ISP board first time，you need to install mstar driver. - Page 23 2. When insert the USB cable to PC USB port, will pop up a Hardware Wizard to help you install the USB driver if you use this ISP board first time.it can auto install success by itself Remark: The USB driver files path: D:\FTC100103(Mstar)\FTCUSB.INF After installation the USB serial port driver, please to check the port.
- Page 24 3. Install the ISP tool. Note: If the F/W Upgrade use the same ISP tool as the EDID writing, you must close the EDID writing tool before running the F/W Upgrade tool. 1. Copy the three file in one folder. 2.
- Page 25 4. Load the F/W you want to upgrade.
- Page 26 5. Set the restore address and Config as below.(the FW file include “reduce”, so please not select the Restore Enable”V”.) 6. Set parameter in “Auto” window.
- Page 27 7. Processing of upgrade. After clicking “Run”, the tool start to program. It is forbided to power off monitor or switch off connection during programming. 8. Successful upgrade. When upgrade successful, there will be green Pass letter appearing. 4. Check the FW version after upgrade. 4.1.
- Page 28 Check this F/W version. 5.2. Do factory reset in user menu. (1)Restart the monitor after open factory menu. And then open the user menu.
- Page 29 (2)Factory reset will turn off “Burn in” mode which screen color switches among red, green, blue and black.
- Page 30 5. Troubleshooting. 5.1. Can’t Entry ISP Mode!! (1) Check the cables and ISP JIG are connected fluently. (2) Click the “Dis Con” and click “Connect” again. (3) AC off the monitor for a while and retry it. (4) Change other vervion ISP program. (5) Change ISP JIG or cable.
- Page 31 WH_20.dat HDMI2_2.0 EDID WH2_20.dat 3.2. Copy these files to one folder named as ACER XV273 X must contains “config.ini” file. 3.3. Copy ACER XV273 X to DDC folder and put DDC and ISP tool together. 3.4 Set the config as below.
- Page 32 4. Run the ISP tool Note: If the F/W Upgrade use the same ISP tool as the EDID writing, you must close the F/W Upgrade tool before running the EDID writing tool. 4.1. Double-click the icon to open the tool.
- Page 33 4.2. Select the EDID folder. 4.3. Load EDID successful, Tick the “Only connect HDMI” and “Write SN”.
- Page 34 .4 Set the Other Setting as below. 4.5 Type in the date and the 22 digit S/N and “Debug Information”.
- Page 35 4.6 Start to writing. Click “write EDID” to start writing. When The green “PASS” appear, the process is finished. 4.7 After writing the EDID pass, you must read the EDID to ensure the EDID data had been write into the monitor. Choose one of the port to read.
- Page 36 1. If it appears all “00” when read the EDID data, you need reconnect the ISP tool or install the the driver of the ISP tool again. Note: While reading the DP EDID data, you must light up the monitor or connect a signal to the monitor. If after doing this setp the EDID still shows all “00”, but others port can show the EDID data, the EDID data of DP uaually include in FW,can’t read out it.
-
Page 37: Fru (Field Replaceable Unit) List
5. FRU (Field Replaceable Unit) List This chapter gives you the FRU (Field Replaceable Unit) listing in global configurations of ACER XV273 X Refer to this chapter whenever ordering for parts to repair or for RMA (Return Merchandise Authorization). Please note that WHEN ORDERING FRU P ARTS, you should c heck the most up-to-date information available on your regional web or channel. - Page 38 PANEL 750GBU270HA30JN000 SPEAKER 378G0025689CRA 23.TCCM2.002 SPEAKER 378G0025689CLA 23.TCCM2.001 USB CABLE 389G0175540ALG 50.LZ2M2.004 1500MM HDMI CABLE 389G0184GAA50200AL 50.TEAM2.001 1500MM DP CABLE 389G1875AAA50100AL 50.LXPM2.008 1500MM COAXIAL CABLE 40P-51P 395GLM5140T556COAX 340MM(MB TO PANEL) CABLE 6P 700MM(MB TO 395GH20006DM280000 50.TDGM2.002 FUNCTION KEY BOARD)
- Page 39 CABLE 7P 80MM(MB TO 395GH20007TM035000 50.TA8M2.004 USB BOARD) CABLE 30P 180MM(USB 395G176M0305170000 50.TCMM2.001 BOARD TO USB SIDE BOARD) CABLE 4P-2P 850/160MM(MB 395GS20004GM023000 50.TG8M2.001 TO SPEAKER) CABLE 200MM 395G801406DJ61 50.T1BM2.002 (PB TO PANEL) POWER CORD 1800MM 389G404A18NYHG 27.T1BM2.001 (EUROPE) BEZEL ASSY W 705GQICS034627 60.TDPM2.004 LOGO...
- Page 40 FUNCTION KEY A33G2236AEM01L0100 60.TBLM2.003 BUTTON FUNCTION KEY BUTTON(JOYST A33G2238AEM01L0100 60.TCCM2.007 ICK) STAND BASE Q37G099810110100ZA 60.TFBM2.004 ASSY MAINFRAME Q15G3316101D0100GH 33.TG8M2.001 USB SHIEKDING Q85G033310110100YM 33.TCMM2.002...
-
Page 41: Trouble Shooting Instructions
6. Trouble shooting instructions...
