Please observe the following instructions:
Quality of wood pellets:
Depending on the manufacturer there are light, dark, shorter and longer pellets. And the quality of one delivery may
differ from another even from the same supplier. The standards for wood pellets are becoming more and more strict
but wood is wood and has its own characteristics regarding ash and clinker.
Your HAAS+SOHN stove
Cleaning requirements:
As soon as you find ash and clinker deposits in the cold combustion pot, it must be cleaned. See operating
instructions! If this is not done, there will be more and more clinker. Then the device will no longer be able to ignite
properly. Pellets may pile up in the combustion pot. In extreme cases, this can reach all the way back to the pellet
chute. Backfire in the pellet container and smouldering in the pellet tank might possibly result. This will destroy
your device and is not covered by the guarantee.
For maximum working life:
Arrange for commissioning by your trained stove supplier.
Observe the daily check as described and more frequently if you have received new pellet deliveries or when
the device is brought back into use after the summer.
Carefully read through all the operating instructions and retain them.
Space for type number and manufacturer's number:
Type number:
Manufacturer's number:
Installation and operating instructions
Important manufacturer's instructions
Art. no. 0544108009032
V13 F24
Catania / Lucca Stove
441.08 / 440.08
!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HAAS + SOHN Catania
Summary of Contents for HAAS + SOHN Catania

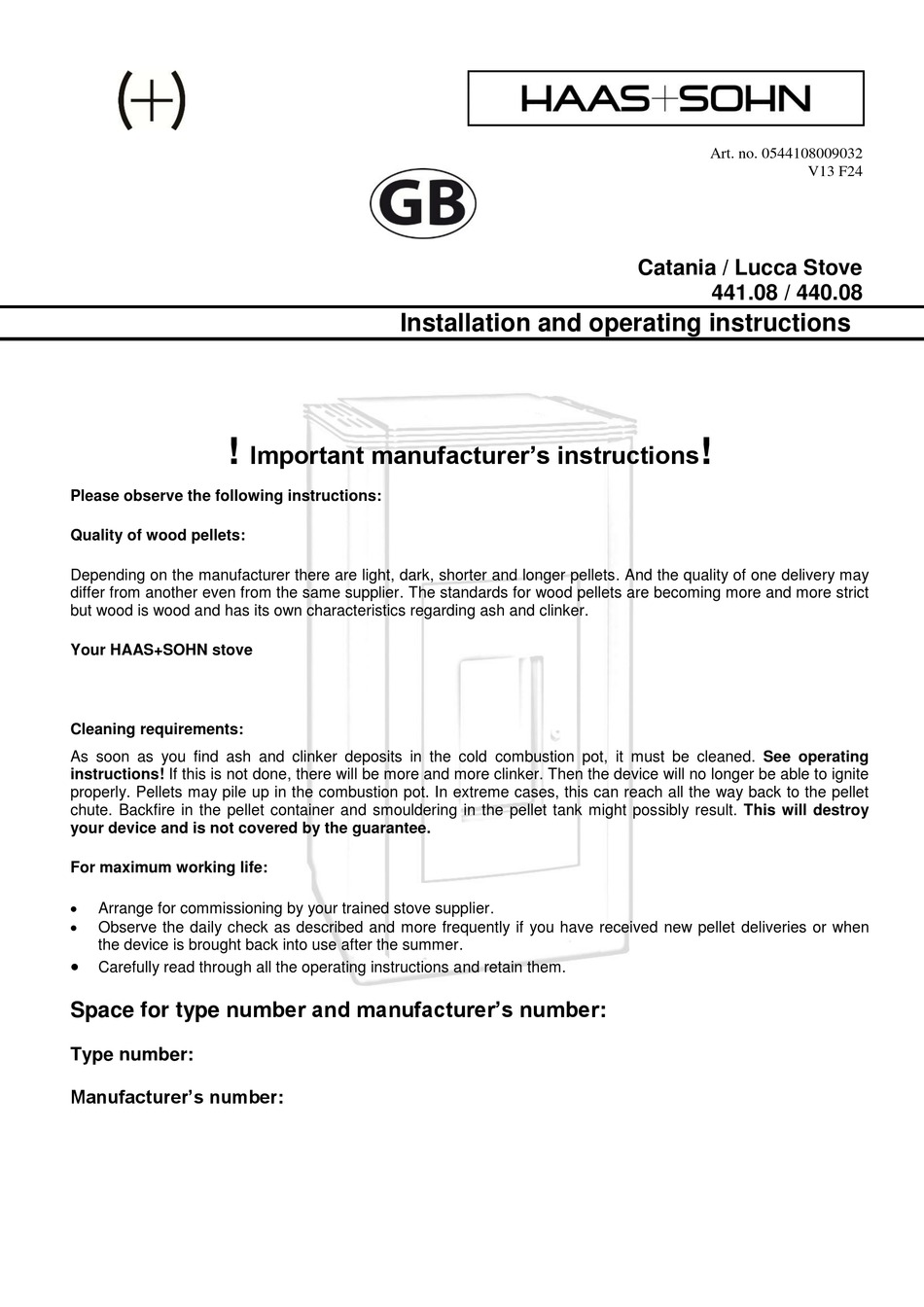

- Page 1 Art. no. 0544108009032 V13 F24 Catania / Lucca Stove 441.08 / 440.08 Installation and operating instructions Important manufacturer’s instructions Please observe the following instructions: Quality of wood pellets: Depending on the manufacturer there are light, dark, shorter and longer pellets. And the quality of one delivery may differ from another even from the same supplier.
-
Page 2: Table Of Contents
Index of contents Description Description of the components General instructions, safety instructions 9.1. Storage container (pellet tank) 9.2. Screw conveyor motor / screw conveyor Installation of the pellet stove and connection to the chimney 9.3. Combustion pot with tray: 9.4. Electric ignition The pellet stove’s functional characteristics 6 9.5. -
Page 3: Description
Congratulations! You are the owner of a HAAS + SOHN 2. General instructions, safety instructions pellet stove, a quality product. Please read through Before commissioning the pellet stove read the these instructions carefully. They will tell you all about... -
Page 4: Installation Of The Pellet Stove And Connection To
The chimney (fireplace or flue) must be made of Clotheshorses for drying clothes and the like must stainless steel or ceramics (glazed internally) and be positioned at sufficient distance from the heating device – fire risk! suitable for wet operation so that it cannot rot. ... - Page 5 Floor protection With longer flue gas pipework, horizontal sections and The floor is to be protected from the radiant heat from constrictions must be avoided and specially insulated the area of the viewing window (combustion chamber). flue tubes should be used. Pipework rising in the In addition, for practical reasons associated with direction of the chimney is recommended.
-
Page 6: The Pellet Stove's Functional Characteristics
5. The pellet stove’s operating statuses: The operation of the pellet stove is characterised by 8 operating statuses: The ignition phase begins the current room temperature falls below the set target temperature by 1ºC and the stove has cooled down to a temperature of below 70C°. -
Page 7: Burner Test
In the event of a large difference between the actual Attention! rotation speed and the target rotation speed, a safety The device starts by itself in “Standby mode”. shutdown will be initiated and an error message is Because of the heat generated on the panel, you shown on the operator console display. -
Page 8: Switching Off - Operating Status Off
6. Description of operator console keys Switching off – operating status OFF 5.8. Procedure: Press the left key on the operator console until the 6.1. Operator console information screen appears. As can be seen in the figure, the display is divided into Press the right key (Menu), then move the cursor to five areas. -
Page 9: Information Screens
Functions of the keys: Left: Display Info screen 1 6.2. Information screens Middle top: Selection up Middle bottom: Selection down 6.2..1 Info screen 1 (Standard screen) Right: Save the selected operating status This screen is always displayed after switching on. Information 6.2..4 Setting the time and date Operating mode:... -
Page 10: Fault Screen
In the main menu, place the cursor on “Heating profile” 6.2..7 Fault screen Press the right “Select” key. Fault screen Adjust the value with the two middle keys Thermosensor flue gas Then press the right “Save” key. Interruption If you would like to quit this menu screen without saving, press the left “Back”... -
Page 11: Commissioning Your Pellet Stove
Important: Your HAAS+SOHN Pelletto pellet stove may After the power supply is made, the control unit only be operated with standardised wood pellets with a 6 commences with initialisation. This process takes a mm diameter. few seconds. After initialisation, the Information screen appears – press the right key (Menu) –... -
Page 12: Heating" Operating Mode
7.3..1 “Heating” operating mode Press the right key (Select) The keys on the operator console are explained in Now the programming window for the date and Section time appears In this operating mode the operator may set the desired ... -
Page 13: Cleaning And Maintenance Work
After the completion of the day of the week We therefore recommend checking and/or programming, the programming window for this cleaning the flue gas passes after 1,000 kg of day of the week can be saved and quitted by pellets at the latest. -
Page 14: Removing The Ash From The Combustion Chamber
8.4. Removing the ash from the combustion Cleaning the combustion pot may only be done with a cooled down stove in “OFF” operating mode. chamber Otherwise there is a risk of burns! To thoroughly clean the ash out of the combustion pot and the combustion chamber, the pellet stove must be in To this end the combustion pot must be removed from a cooled down condition and in the OFF operating... -
Page 15: Cleaning The Flue Gas Passes And The Flue Tubes
8.6. Cleaning the flue gas passes and the flue 8.7. Cleaning the induced draught housing and fan tubes This housing is made accessible for cleaning by undoing Normally it is sufficient to clean the flue gas passes and the 4 nuts shown in Figure 9. (See arrows). the flue tubes once a year. -
Page 16: Combustion Pot With Tray
The average ignition glow time is 10 to 12 minutes (depending on pellet quality). The ignition phase is restricted to a maximum time of 21 minutes and therefore the maximum ignition glow time is also restricted to 21 minutes. Depending on the fuel quality, the flame should be formed in 6 to 10 minutes. -
Page 17: Control Unit
9.5. Control unit Read every error message shown as text and number The microprocessor control unit ensures safe, Make the selection of language for the menu automatic operation of the pellet stove. The control on the operator console. unit controls the interaction of the components e.g. -
Page 18: Flue Gas Thermosensor
Here the ACTUAL flame temperature is compared with the TARGET in combination with the processor- regulated control unit and the appropriate combustion air volume required for the combustion of the energy level in the grate is supplied by means of the induced draught fan. -
Page 19: Options
10. Options 10.2. Assembly instructions GSM Module A remote control by means of GSM module can be used as optional accessory. The future-orientated module (as accessory) using mobile phone requires only one second SIM-card. A fixed line connection is not necessary for this. -
Page 20: Gsm Module Setup
10.3. GSM Module Setup 10.3..4 Starting the pellet stove via mobile phone 10.3..1 Preparing the SIM card for operation with the GSM module Overview of the GSM commands (whether the Before inserting the SIM-card, the security code individual characters are input in upper- or lower for the SIM-card (PIN-code request) must case is irrelevant): definitely be deactivated!! -
Page 21: Technical Data
T 0.315 A, 250 V T 0.315 A, 250 V Fuses for the ignition, screw conveyor motor, induced draught, (F1,) (F2 reserve) T 3,12 A, 250 V T 3,12 A, 250 V Figure 21: Dimensions of Catania 441.08 + Lucca 440.08... -
Page 22: Faults, Causes, Correction
12. Faults, causes, correction You can correct simple faults yourself with the following guide. For further information please consult your specialist dealer. Attention! All devices are equipped with a large number of safety devices. If a fault occurs, you will be shown this on the display. In the event of a fault, leave the mains plug in so that the internal safety functions can continue to operate fully. - Page 23 5. Shutoff flue gas temp. in Heating mode 7. Shutoff, combustion chamber door open too low (21) (6) or (9) Cause: Cause: Temperature fell below the minimum The door is open for longer than 1 minute temperature in Heating mode operating during operation status ...
- Page 24 13. Induced draught fan cannot reach target 17. Safety shutdown tolerance variation, rotation speed (15) flame temperature ( 26 ) Cause: Cause: The induced draught fan is not running at Burner dirty, pellets have low calorific the correct rotation speed value.
- Page 25 combustion chamber” instruction, is automatically 24. Error – data transmission IO19 ( D6 ) reset to zero. Check cable (6002) This reset of the operating hours counter occurs Cause: even if the cleaning of the combustion chamber is No connection between operator console performed before the 50 operating hours have run and central unit provided that the stove is in “Off”...
-
Page 26: General Faults
12.2. General faults Fault: Cause: Correction: Stove will not ignite 1. The set target room Increase the target temperature. temperature is lower than the current room temperature (actual temperature); the “STANDBY” symbol appears on the display 2. Storage container is empty Refill storage container. - Page 27 Fire goes out 1. Storage container is empty Refill storage container 2. The combustion air supply in Clean burner the combustion pot is blocked by ash deposits 3. Pellet container contains too Empty pellet container and clean screw much dust conveyor channel with vacuum cleaner 4.
-
Page 28: Type Plate: Symbol
13. Type plate: Symbol HAAS + SOHN OFENTECHNIK GMBH Urstein Nord 67, A-5412 Puch Pellet-Kaminofen 441.08-ST Typenbezeichnung: Catania RLU Variante: 1,8 - 8,2 kW Wärmeleistungsbereich: 8,0 kW Nennwärmeleistung Zugelassener Brennstoff: Holzpellets Ø 6mm (DINplus, ÖNorm M 7135, ENplus-A1), Prüfstellenkennziffer: 1625 Registrier Nr. - Page 29 Figures 22: Replacement parts 440.08 - 441.08...
-
Page 30: Replacement Parts List
14. Replacement parts list 440.08-ST 441.08-ST 441.08-ST Complete combustion chamber door black 0544008005300 0544008005300 0544008005300 Door hinge 0544008005274 0544008005274 0544008005274 Glass panel front 0544008005301 0544008005301 0544008005301 Glass panel inside 0544008005302 0544008005302 0544008005302 Sealing strip, glass panel 10x4 0040210040005 0040210040005 0040210040005 Sealing strip, combustion chamber door 8 0040008005001 0040008005001... -
Page 31: Circuit Diagram
15. Circuit diagram... - Page 32 No.: Description Cable harness Mains plug / mains filter Electric ignition Screw conveyor motor Induced draught 35/36 Flue gas temperature sensor 37/38 Flame temperature sensor 39/40 Room temperature sensor 41/42 Bottom flame temperature sensor 43/44 Door contact switch 48-50 Flue gas fan rotation speed Fuse T 3,15A ignition, induced draught fan, screw conveyor motor Fuse T 3,15A reserve Fuse T 0,315A operator console...
-
Page 33: Guarantee
If there is no reference HAAS + SOHN gives no guarantee for damage to to type or manufacturer’s number in this place, or defects in devices or parts there of that have place enter them there. - Page 34 We accept no liability for changes made after going to press with these instructions. We reserve the right to make changes Our product range: Oil stoves Stoves Pellet stoves Tile stoves and slow combustion stoves for wood and coal Slow combustion stoves and auxiliary ranges for wood, coal and oil Fireplace inserts for wood Accessories for stoves and fireplaces Accessories for central oil supply...
