1 ANI-C
Control panel for FRIGOLINK ANIMUS platform

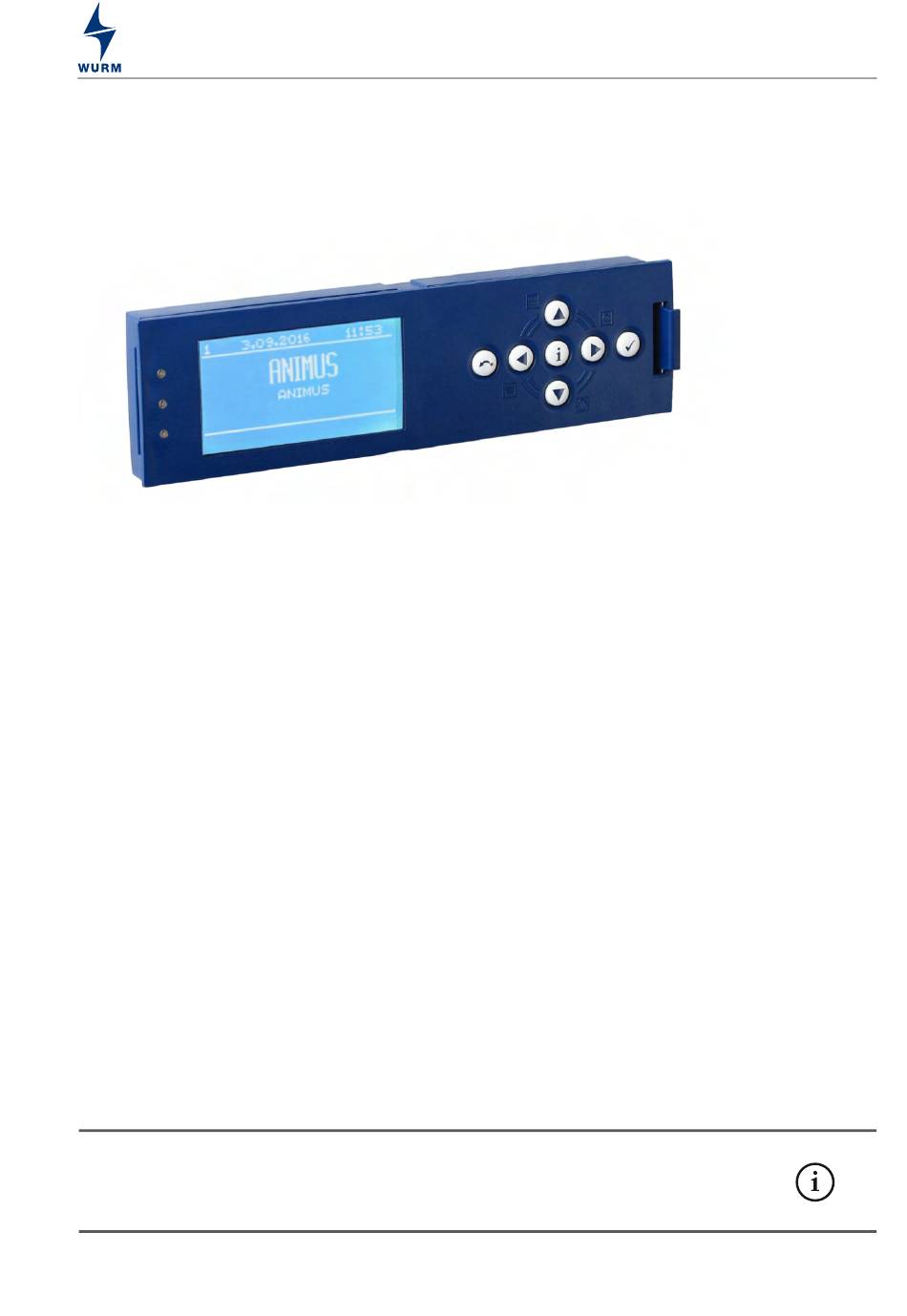

Fig. 1: Front view
1.1 Features
•
Operating element for use in the FRIGOLINK ANIMUS platform for the Wurm G4 operating con-
cept
•
User interface with Sticky Keys
•
Graphic display with backlighting, plain text, 6 illuminated operating keys and 1 Info key
•
Power supply via FRIGOLINK ANIMUS platform
NOTE
•
You will find a detailed description of the display and control elements in the Operation chapter of
the product manual for your ANIMUS application.
ANI-C_V1.0.0_PI_2016-12_EN.fm
Subject to technical changes
FRIGOLINK
ANI-C
1
Advertisement
Table of Contents
Related Manuals for WURM FRIGOLINK 1 ANI-C
Summary of Contents for WURM FRIGOLINK 1 ANI-C
- Page 1 1 ANI-C Control panel for FRIGOLINK ANIMUS platform Fig. 1: Front view 1.1 Features • Operating element for use in the FRIGOLINK ANIMUS platform for the Wurm G4 operating con- cept • User interface with Sticky Keys • Graphic display with backlighting, plain text, 6 illuminated operating keys and 1 Info key •...
- Page 2 Wurm GmbH & Co. KG Elektronische Systeme. Keep these instructions ready to hand for quick reference and pass them on with the device if the product is sold.
- Page 3 FRIGOLINK ANI-C 1.3 Installing Inserting the control panel 1. Use a screwdriver to lever the left front panel out of the housing and thus open the compartment for the control panel. 2. (A) Set the left edge of the control panel in the compartment in the area to the left of the contacts (a).
- Page 4 FRIGOLINK ANI-C 1.4 Technical data Power supply 5V from FRIGOLINK ANIMUS platform or USB connection Display Graphic display Dimensions (WxHxD) 153.5 x 41.9 x 18.6mm Housing Plastic Fastening Lock in place in the bracket of the FRIGOLINK ANIMUS plat- form Ambient temperature Operation: 0...+55°C, storage: -10...+70°C Weight...
