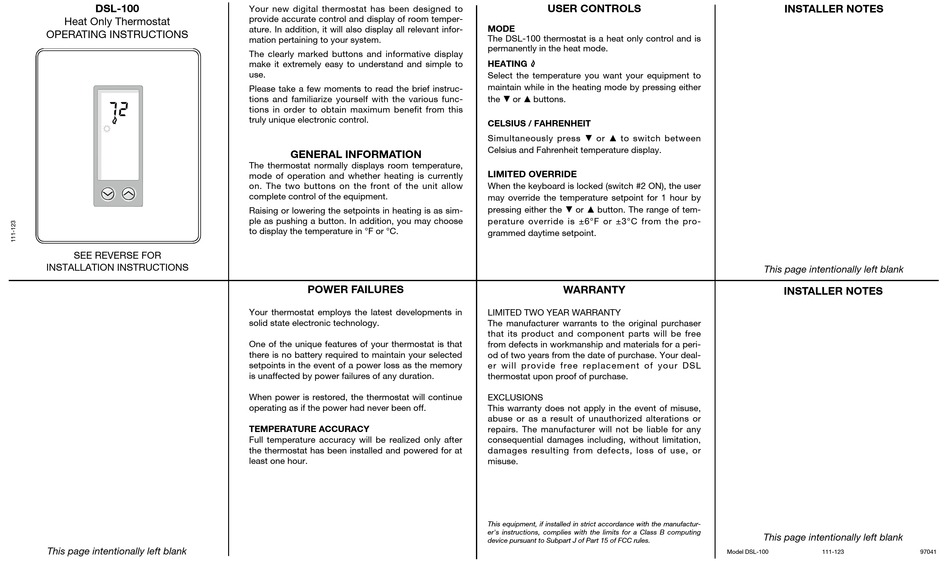

enerstat DSL-100 Operating Instructions

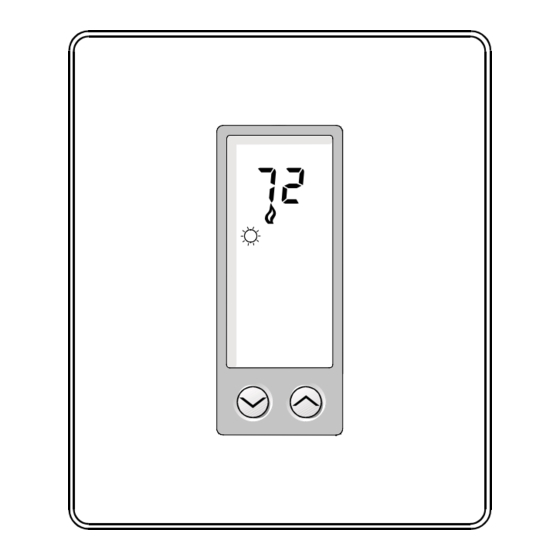

DSL-100
Heat Only Thermostat
OPERATING INSTRUCTIONS
SEE REVERSE FOR
INSTALLATION INSTRUCTIONS
This page intentionally left blank
Your new digital thermostat has been designed to
provide accurate control and display of room temper-
ature. In addition, it will also display all relevant infor-
mation pertaining to your system.
The clearly marked buttons and informative display
make it extremely easy to understand and simple to
use.
Please take a few moments to read the brief instruc-
tions and familiarize yourself with the various func-
tions in order to obtain maximum benefit from this
truly unique electronic control.
GENERAL INFORMATION
The thermostat normally displays room temperature,
mode of operation and whether heating is currently
on. The two buttons on the front of the unit allow
complete control of the equipment.
Raising or lowering the setpoints in heating is as sim-
ple as pushing a button. In addition, you may choose
to display the temperature in °F or °C.
POWER FAILURES
Your thermostat employs the latest developments in
solid state electronic technology.
One of the unique features of your thermostat is that
there is no battery required to maintain your selected
setpoints in the event of a power loss as the memory
is unaffected by power failures of any duration.
When power is restored, the thermostat will continue
operating as if the power had never been off.
TEMPERATURE ACCURACY
Full temperature accuracy will be realized only after
the thermostat has been installed and powered for at
least one hour.
USER CONTROLS
MODE
The DSL-100 thermostat is a heat only control and is
permanently in the heat mode.
"
HEATING
Select the temperature you want your equipment to
maintain while in the heating mode by pressing either
the ✞ or ✟ buttons.
CELSIUS / FAHRENHEIT
Simultaneously press ✞ or ✟ to switch between
Celsius and Fahrenheit temperature display.
LIMITED OVERRIDE
When the keyboard is locked (switch #2 ON), the user
may override the temperature setpoint for 1 hour by
pressing either the ✞ or ✟ button. The range of tem-
perature override is ±6°F or ±3°C from the pro-
grammed daytime setpoint.
WARRANTY
LIMITED TWO YEAR WARRANTY
The manufacturer warrants to the original purchaser
that its product and component parts will be free
from defects in workmanship and materials for a peri-
od of two years from the date of purchase. Your deal-
er will provide free replacement of your DSL
thermostat upon proof of purchase.
EXCLUSIONS
This warranty does not apply in the event of misuse,
abuse or as a result of unauthorized alterations or
repairs. The manufacturer will not be liable for any
consequential damages including, without limitation,
damages resulting from defects, loss of use, or
misuse.
This equipment, if installed in strict accordance with the manufactur-
er's instructions, complies with the limits for a Class B computing
device pursuant to Subpart J of Part 15 of FCC rules.
INSTALLER NOTES
This page intentionally left blank
INSTALLER NOTES
This page intentionally left blank
Model DSL-100 111-123 97041
