Ecore RageTurf dBTile
Technical Manual
Installation · Maintenance · Warranty
Supersedes all previous versions.
Check website for updates.
Manufactured in the U.S.A.
Base Preparation
Site Work & Base Options
Maintenance
Warranty
Revised 28Jun2023
www.ecoreintl.com
2
2
3
5
6
7
7
9
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ECORE RageTurf dBTile
Summary of Contents for ECORE RageTurf dBTile
-
Page 1: Table Of Contents
Ecore RageTurf dBTile Technical Manual Installation · Maintenance · Warranty Revised 28Jun2023 Supersedes all previous versions. Check website for updates. Manufactured in the U.S.A. Base Preparation General Information Tools / Material Required Installation Site Work & Base Options Quad Blok Installation Cutting Tiles &... -
Page 2: General Information
Installation I. GENERAL INFORMATION Ecore RageTurf dBTile can be installed per Sub-base / Surface per table below. NOTE: Dimensional tolerance for tiles is +/- 1/8” for thickness and +/- 1/8” in width. NOTE: Slight variance in shade is normal. It is the installer’s responsibility to inspect all products to ensure the correct style, thickness, and color. - Page 3 SITE WORK A. Site Elevation 1. On grade installation - The finished installed height of the RageTurf dBTile surface will be equal to or slightly higher than the perimeter grade but not more than 1" higher unless approved by the project engineer.
- Page 4 RageTurf dBTile Technical Manual b. The preferred aggregate size is 3/8" to ½". Asphalt mixtures that contain a high percentage of fines may not be stable in hot weather and may become soft. c. The soil subgrade must be compacted with a min. of two passes of a 10-ton vibratory roller with no soft or moving areas upon completion.
-

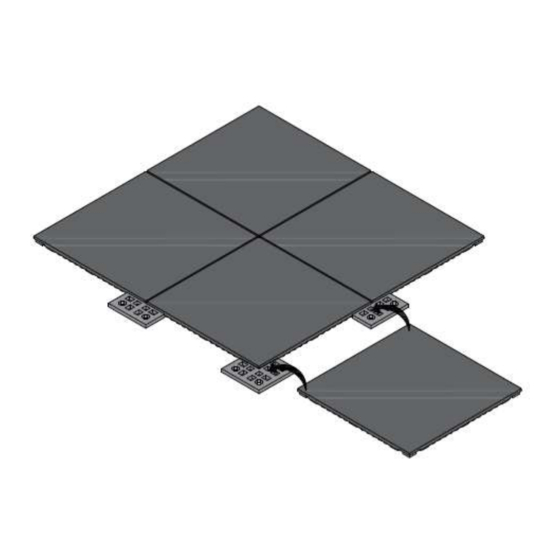

Page 5: Quad Blok Installation
Report any discrepancies immediately. Ecore will honor no labor claim on material installed with any visually apparent defects. C. The material and any adhesive must be acclimated at room temperature for a minimum of 48 hours before starting the installation. -
Page 6: Cutting Tiles & Accessories
RageTurf dBTile Technical Manual F. Allow 24 hours for adhesive to cure before opening area for use. G. One 10.1-ounce tube of E-Grip III is required for approx. 10 of the 8” x 8” Quad Blocks. VII. CUTTING TILES & ACCESSORIES Tile cuts are best started with a retractable razer knife to cut the surface, finished with a saber saw and a 7-10 TPI wood cutting blade. -
Page 7: Fully Adhered Installation
E-Grip 95 – RH limit of 95% – higher RH applications c. E-Grip 99 – RH limit of 99% – highest RH applications If RH levels exceed the selected Ecore adhesive’s RH limit, stop and correct situation. If outside, simply use E-Grip III... - Page 8 RageTurf dBTile Technical Manual Therefore, cleaning agents are grouped into two sets, one of which can be used in liberal amounts directly on the turf surface, and the second of which should only be applied by rubbing a cloth lightly soaked in the cleaner in order to minimize penetration of possible harmful agents below the turf surface.
-
Page 9: Warranty
Warranty All Ecore RageTurf dBTile Tiles are guaranteed to be free from manufacturing defects on both material and workmanship. If such a defect is discovered, the customer must notify Ecore either through the contracting installer, distributor, or directly. - Page 10 This warranty is in lieu of any other warranty, whether expressed or implied, including but not limited to any implied warranty of merchantability or fitness for a particular purpose. Ecore shall not be liable for incidental or consequential losses, damages or expenses directly or indirectly arising from the sale, handling, or use of the materials (goods), or from any other cause relating thereto.
