USER MANUAL
How to improve battery life,
Add menus Supervisor>Date format and
M
2020/05/18
Supervisor>Maintenance>Reboot,
Functional changes and improvements
L
2020/01/27 UNI-2
Update table of alarms
GU 7110 cancels and replaces FM 8012
K
2017/10/30
MU 7087 Mobile printer kit non ATEX
Drawings update
A
2010/04/29 Creation
Issue
Date
Nature of modifications
MU 7033 EN M
FLEXICOMPT AUTONOME+
[PJV158]
[MDV568]
MU 7033 EN M
FLEXICOMPT AUTONOME+
This document is available on www.alma-alma.fr
DSM
DSM
[MDV544]
DSM
DSM
Written by
FORM DOC 120 A
SH
SH
XS
XS
Approved by
Page 1/42
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Alma FLEXICOMPT AUTONOME+
Summary of Contents for Alma FLEXICOMPT AUTONOME+

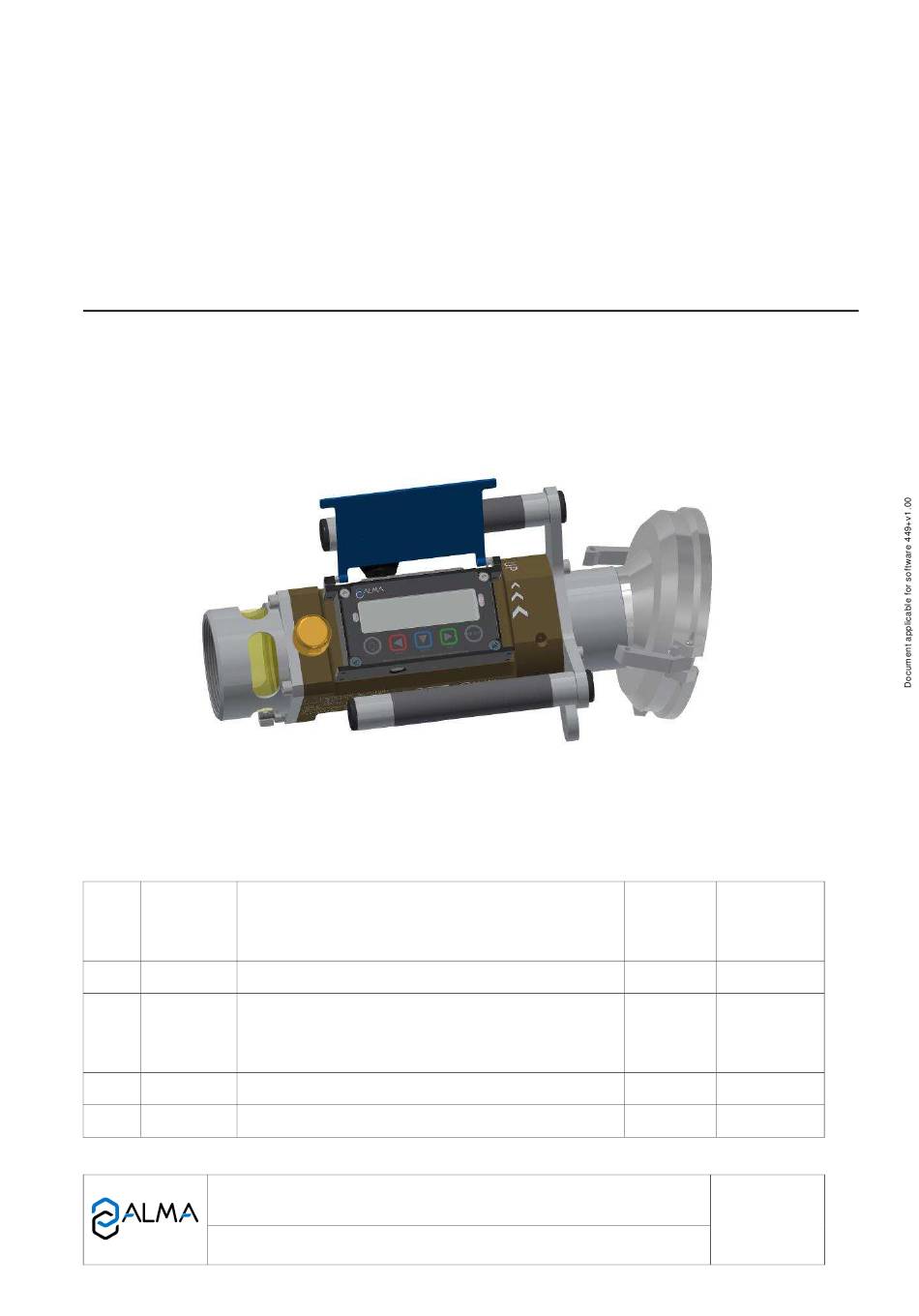

- Page 1 GU 7110 cancels and replaces FM 8012 [MDV544] 2017/10/30 MU 7087 Mobile printer kit non ATEX Drawings update 2010/04/29 Creation Issue Date Nature of modifications Written by Approved by MU 7033 EN M FLEXICOMPT AUTONOME+ Page 1/42 This document is available on www.alma-alma.fr...
-
Page 2: Table Of Contents
Sub-menu Maintenance ..........................17 6.4.5 Sub-menu Language ..........................17 6.4.6 Sub-menu Date format ..........................18 Menu Interfaces ........................18 6.5.1 Sub-menu Bluetooth ..........................18 6.5.2 Sub-menu Wi-Fi ............................18 MU 7033 EN M FLEXICOMPT AUTONOME+ Page 2/42 This document is available on www.alma-alma.fr... - Page 3 Removing the top cover (on the cable plug side) ..................34 8.4.2 Replacement of the battery ........................35 8.4.3 Assembling the cover ..........................35 DRAWINGS AND PART LIST ......................35 RELATED DOCUMENTS .......................... 42 MU 7033 EN M FLEXICOMPT AUTONOME+ Page 3/42 This document is available on www.alma-alma.fr...
-
Page 4: General Presentation And Description

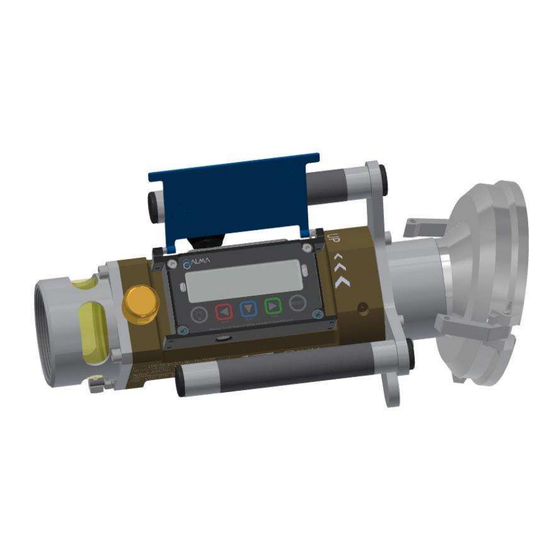

The FLEXICOMPT AUTONOME+ includes: An UNI-2 intrinsic security indicator-calculator device fastened to the hydraulic sleeve An hydraulic sleeve which includes the elements that follow: • An ALMA ADRIANE turbine meter DN80-80 • A sight glass, downstream of the turbine meter •... - Page 5 NOTE 2: To save the battery charge, if the Bluetooth or Wi-Fi connection is released if it’s not successful within two minutes. If the Bluetooth or Wi-Fi connection is successful, it remains active for 10 minutes. MU 7033 EN M FLEXICOMPT AUTONOME+ Page 5/42 This document is available on www.alma-alma.fr...
-
Page 6: Connected Features And Supply Of The Flexicompt Autonome
Recovery of parameters • • Recovery of maintenance information • Geo-tracking of each measurement, the instantaneous position of the FLEXICOMPT AUTONOME+ • Recovery of the clock MU 7033 EN M FLEXICOMPT AUTONOME+ Page 6/42 This document is available on www.alma-alma.fr... -
Page 7: Power Supply
The FLEXICOMPT AUTONOME+ operates with or without its charging module. It has at least one week battery life. To charge the battery, use only the USB cable and the charging module ALMA Wireless charger, supplied with the equipment. -
Page 8: Set The Flexicompt Autonome
The front face glass must be regularly cleaned for easy readability and better communication with the CTD+. Charge batteries outside potentially explosive area Replace batteries outside potentially explosive area Use the CTD+ outside potentially explosive area MU 7033 EN M FLEXICOMPT AUTONOME+ Page 8/42 This document is available on www.alma-alma.fr... -
Page 9: Mobile Installation
For complete emptying: The operating procedure is identical to the partial emptying procedure but there is no voluntary action on the tank valve. MU 7033 EN M FLEXICOMPT AUTONOME+ Page 9/42 This document is available on www.alma-alma.fr... -
Page 10: Use The Flexicompt Autonome+: User Mode
The displayed volume depends on the configuration set in METROLOGICAL mode. A pictogram at the upper left of the screen, indicates Vm for volume at temperature, or V15/V20/Vb for a volume converted to the reference temperature. MU 7033 EN M FLEXICOMPT AUTONOME+ Page 10/42 This document is available on www.alma-alma.fr... -
Page 11: Menu Metering
Flow SAVING UNLE-LS The record of the last Appearance of flowrate resets the volume Volume Choose product measurement is made at the end of time-out Time-out MU 7033 EN M FLEXICOMPT AUTONOME+ Page 11/42 This document is available on www.alma-alma.fr... -
Page 12: Data Recording And Volume Reset
: This menu is used to switch on the GPS manually to synchronize the clock Start GPS again. This operation lasts one minute and must be done outdoors. Stop GPS at the end of synchronization. MU 7033 EN M FLEXICOMPT AUTONOME+ Page 12/42 This document is available on www.alma-alma.fr... -
Page 13: Menu Visualisa
AUTONOME+. Temperature, converted volume, and mass are displayed if the temperature option is activated. The measured gas volume is displayed for information only, it has no metrological value. MU 7033 EN M FLEXICOMPT AUTONOME+ Page 13/42 This document is available on www.alma-alma.fr... -
Page 14: Menu Supervisor
: Coefficient to be set only by an Coeff authorized person in METROLOGICAL mode, if required : Average flow of the measurement Average flow : Mean temperature of the measurement Mean temper MU 7033 EN M FLEXICOMPT AUTONOME+ Page 14/42 This document is available on www.alma-alma.fr... -
Page 15: Sub-Menu Season
Meas. System Date time e.g.: Reference Device Turbine Meas. System Config. Scales Vol. Units Vol. Digits Flowrates Product 1 Products Name Density tb Correction Product 9 MU 7033 EN M FLEXICOMPT AUTONOME+ Page 15/42 This document is available on www.alma-alma.fr... - Page 16 Direction:OFF Temperature:ON Ref. tempera. Vol. disp. Sensors Rcs thres RCS minimum RCS maximum Auto save MPLS:OFF Date Date time 01/01/2020 Time 00:00 Time zone +01 h MU 7033 EN M FLEXICOMPT AUTONOME+ Page 16/42 This document is available on www.alma-alma.fr...
-
Page 17: Sub-Menu Maintenance
6.4.5 Sub-menu Language Select the display language. This menu is available if a translation catalogue is uploaded in the UNI-2. MU 7033 EN M FLEXICOMPT AUTONOME+ Page 17/42 This document is available on www.alma-alma.fr... -
Page 18: Sub-Menu Date Format
: Assign a Bluetooth device name to UNI-2 (alphanumeric value such as the Name serial number for example) 6.5.2 Sub-menu Wi-Fi Characteristics of the wireless network access point MU 7033 EN M FLEXICOMPT AUTONOME+ Page 18/42 This document is available on www.alma-alma.fr... -
Page 19: Sub-Menu Ctd
Once the fault is acknowledged, the selected value is displayed alternately with "-------" to indicate that the measured values are no longer guaranteed. MU 7033 EN M FLEXICOMPT AUTONOME+ Page 19/42 This document is available on www.alma-alma.fr... - Page 20 Micro SD card Problem with the micro SD card Check the micro SD card is in. Try another one if necessary MU 7033 EN M FLEXICOMPT AUTONOME+ Page 20/42 This document is available on www.alma-alma.fr...
-
Page 21: Configure The Flexicompt Autonome+: Metrological Mode
: Set the serial number of the FLEXICOMPT AUTONOME+ Meas. System 7.2 Menu Config. Scales Config. Products 7.2.1 Sub-menu Scales Vol. Units Scales Vol. Digits Flowrates MU 7033 EN M FLEXICOMPT AUTONOME+ Page 21/42 This document is available on www.alma-alma.fr... -
Page 22: Sub-Menu Products
7.2.2 Sub-menu Products Product 1 Products Name Density tb Correction Product 9 You can configure 9 different products. : Enter the product name (max 8 alphanumeric characters) Name MU 7033 EN M FLEXICOMPT AUTONOME+ Page 22/42 This document is available on www.alma-alma.fr... - Page 23 Product 8 Product 7 Name BUTANE Name PROPANE 0000 kg/m 0000 kg/m Density tb Density tb Correction Correction Product 9 Name 0000 kg/m Density tb Correction MU 7033 EN M FLEXICOMPT AUTONOME+ Page 23/42 This document is available on www.alma-alma.fr...
-
Page 24: Menu Meas. System
Kv 2 ‰ When parameters are set to zero, parameters Flowrate 1 Flowrate 2 Coeff.2 are not applied. Kv 2 Adjustment of coefficients for several flowrates: MU 7033 EN M FLEXICOMPT AUTONOME+ Page 24/42 This document is available on www.alma-alma.fr... -
Page 25: Sub-Menu Flowrates
: Delay for the additional volume (upper gas detector dry). Unit depends on the Delay choice made for the scale interval. Not applicable without gas detectors : Accuracy class of the FLEXICOMPT AUTONOME+: 0.5 Class MU 7033 EN M FLEXICOMPT AUTONOME+ Page 25/42 This document is available on www.alma-alma.fr... -
Page 26: Sub-Menu Direction
: Reference temperature (°C) Ref. tempera : Choose the volume displayed in USER mode: Vol. disp. : Volume in metering conditions : Volume converted to the reference temperature MU 7033 EN M FLEXICOMPT AUTONOME+ Page 26/42 This document is available on www.alma-alma.fr... -
Page 27: Sub-Menu Sensors
For example, the parameter can have the value that follows: Auto save=060. Automatic recording with time-out 60 seconds 7.3.9 Sub-menu MPLS Do not enable this feature. Enable MPLS : Choose Enable MU 7033 EN M FLEXICOMPT AUTONOME+ Page 27/42 This document is available on www.alma-alma.fr... -
Page 28: Menu Date Time
: No time change when the season changed No season : Winter-time (at commissioning) Winter : Summer-time (at commissioning) Summer Time change is done in USER mode with the menu Supervisor>Season MU 7033 EN M FLEXICOMPT AUTONOME+ Page 28/42 This document is available on www.alma-alma.fr... -
Page 29: Maintenance
The UNI-2 is powered by two rechargeable batteries. These internal batteries have a five years lifetime. Only charge batteries outside potentially explosive area and only use the USB cable and the charging module ALMA Wireless charger, supplied with the equipment. -
Page 30: Modification Of The Setting Parameters
Loctite 577. Any other operation must be done by approved person as it could affect the metrological nature of the FLEXICOMPT AUTONOME+. Positioning upstream bent sleeve MU 7033 EN M FLEXICOMPT AUTONOME+ Page 30/42 This document is available on www.alma-alma.fr... -
Page 31: 2Dla01-Spacer
Unscrew the 4 CHC screws of the UNI-2 Carefully lift up the UNI-2 to find the terminal block B2. Wires are long enough to put the UNI-2 near nearby Remove both batteries MU 7033 EN M FLEXICOMPT AUTONOME+ Page 31/42 This document is available on www.alma-alma.fr... -
Page 32: Removing The 2Dla01-Spacer From The Turbine
Put back the washer (38) and the ring (37) on the cable of the new 2DLA01- spacer Pass the 6 wires and then the cable through the wires pass through of the turbine body MU 7033 EN M FLEXICOMPT AUTONOME+ Page 32/42 This document is available on www.alma-alma.fr... -
Page 33: Assembling The Upstream Coupling
Put the washers (31) and (32) on the threaded rod (29) and screw the nut (30) Put the lead seal cup (33) and the screw (34) on the threaded rod (29) Seal the lead seal cup* (if necessary) MU 7033 EN M FLEXICOMPT AUTONOME+ Page 33/42 This document is available on www.alma-alma.fr... -
Page 34: Wiring And Operational Check Of The Dg In The Uni-2
Remove the holder and the cover Remove the sheet on the battery If necessary slightly unscrew the screws of the base plate to make the removal of the sheet easier MU 7033 EN M FLEXICOMPT AUTONOME+ Page 34/42 This document is available on www.alma-alma.fr... -
Page 35: Replacement Of The Battery
The drawings below present the FLEXICOMPT AUTONOME+ in MID and not MID versions (PPV077 DFV077). According to customers' needs, it is equipped with: An upstream straight sleeve with API coupler An upstream 15° bent sleeve. MU 7033 EN M FLEXICOMPT AUTONOME+ Page 35/42 This document is available on www.alma-alma.fr... - Page 36 FORM DOC 011 A MU 7033 EN M FLEXICOMPT AUTONOME+ Page 36/42 This document is available on www.alma-alma.fr...
- Page 37 FORM DOC 011 A MU 7033 EN M FLEXICOMPT AUTONOME+ Page 37/42 This document is available on www.alma-alma.fr...
- Page 38 FORM DOC 011 A MU 7033 EN M FLEXICOMPT AUTONOME+ Page 38/42 This document is available on www.alma-alma.fr...
- Page 39 FORM DOC 011 A MU 7033 EN M FLEXICOMPT AUTONOME+ Page 39/42 This document is available on www.alma-alma.fr...
- Page 40 FORM DOC 011 A MU 7033 EN M FLEXICOMPT AUTONOME+ Page 40/42 This document is available on www.alma-alma.fr...
- Page 41 Brass square lead seal cup 12x12 for M5 pan head screw Screw FS M 5X10 A4 70 for cylindrical lead seal Adhesive foam gasket 15x30 thickness =3.6 MU 7033 EN M FLEXICOMPT AUTONOME+ Page 41/42 This document is available on www.alma-alma.fr...
-
Page 42: Related Documents
MV 5011 Verification Manual: Flexicompt autonome+ FM 8014 Maintenance sheet: Replacement of the battery on the CTD+ Maintenance sheet: Adjustment of an ALMA measuring system FM 8512 equipped with a UNI-2 FM 8513 Maintenance sheet: Adjustment of temperature in the UNI-2...
