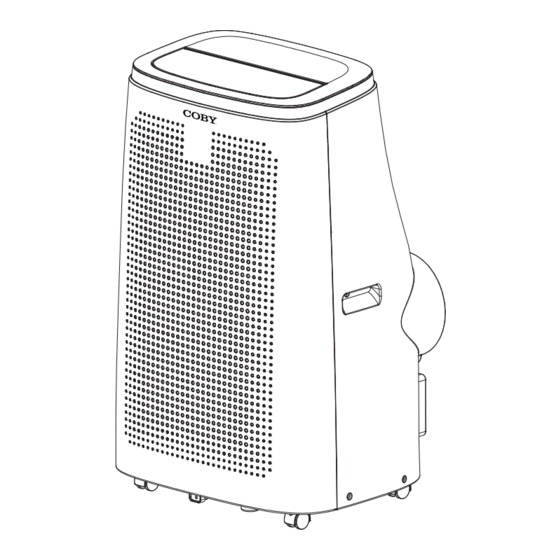

Portable Air Conditioner
CBPAC1080
CBPAC1080H

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CBPAC1080 and is the answer not in the manual?

Questions and answers

Related Manuals for Coby CBPAC1080

Summary of Contents for Coby CBPAC1080

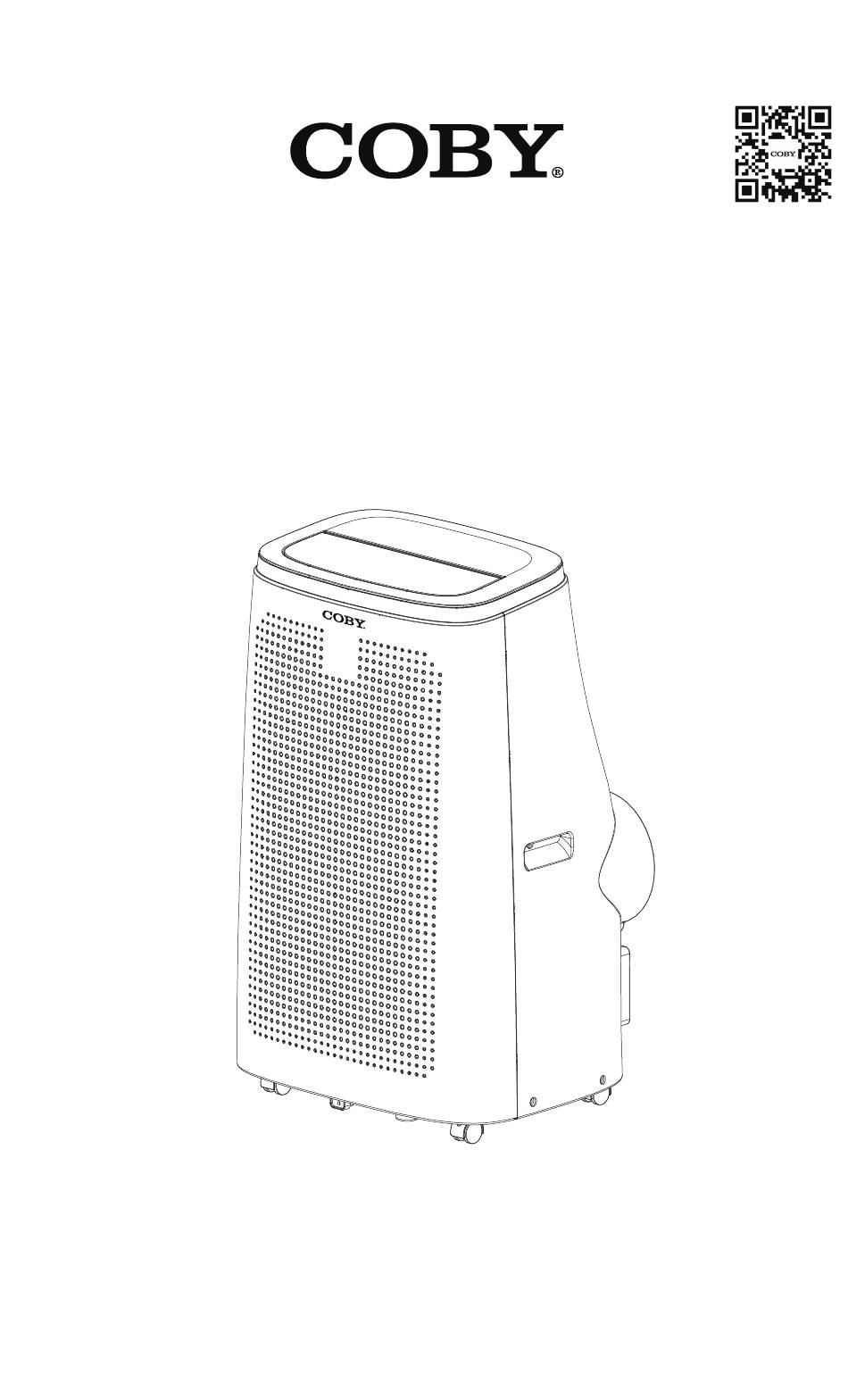

  • Page 1 Portable Air Conditioner CBPAC1080 CBPAC1080H...

  • Page 2: Table Of Contents

    Customer Service ..............................23 Troubleshooting ..............................24 Limited Warranty ..................................25 PRODUCT REGISTRATION Thank you for purchasing our COBY product. This easy-to-use Model number manual will guide you in getting the best use of your air conditioner. Remember to record the model and Serial number serial numbers.

  • Page 3: Safety Information

    ENGLISH SAFETY INFORMATION DANGER WARNING CAUTION DANGER - Immediate hazards WARNING - Hazards or unsafe CAUTION - Hazards or unsafe which WILL result in severe practices which COULD result in practices which COULD result in personal injury or death severe personal injury or death minor personal injury IMPORTANT SAFETY INSTRUCTIONS WARNING...
  • Page 4 ENGLISH SAFETY INFORMATION HANDLING ALKALINE BATTERIES WARNING When handling alkaline batteries, basic safety precautions should be followed, including the following Should fluid from the battery accidentally get into your eyes, there is a threat of loss of eyesight, do not rub them. Immediately rinse your eyes with clean tap water and then consult a physician immediately.

  • Page 5: Grounding Instructions

    ENGLISH SAFETY INFORMATION GROUNDING INSTRUCTIONS ELECTRICAL REQUIREMENTS In the event of malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. The appliance must be connected to a cord having an equipment- grounding conductor and a grounding plug.

  • Page 6: Lcdi Power Cord And Plug

    ENGLISH SAFETY INFORMATION LCDI POWER CORD AND PLUG This air conditioner is equipped with an LCDI (Leakage Current Detection and Interruption) power cord that is required by UL. This power supply cord contains state-of-the-art electronics that sense leakage current. If the cord is damaged and leakage occurs, power will be disconnected from the unit.

  • Page 7: Safety Guidelines

    ENGLISH SAFETY INFORMATION SAFETY GUIDELINES To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. ALWAYS DO THIS NEVER DO THIS ENERGY SAVE •...
  • Page 8 ENGLISH SAFETY INFORMATION OPERATING CONDITION The air conditioner must be operated within the temperature range indicated below: NOTE: · Unit performance may be affected when in use outside of these operating temperatures. MODE ROOM TEMPERATURE COOL 64˚F (18˚C) ~ 95˚F (35˚C) DEHUMIDIFY 64˚F (18˚C) ~ 95˚F (35˚C) HEAT (ELECTRICAL HEAT TYPE)

  • Page 9: Set Up & Use

    ENGLISH SET UP & USE PARTS & FEATURES Control Panel Filter Frame Upper Air-outlet Handle Exhaust Connector Drainage Hole Rubber Plug Castor and Cap Power Cord Air Exhaust Hose Hose Inlet Hose Outlet Remote Control Window Panel 3PCS 2x Wing Nut and Bolt Foam Strip Drain Hose Page 9...

  • Page 10: Specifications

    ENGLISH SET UP & USE SPECIFICATIONS CBPAC1080 Unit dimensions (W x D x H): 18.7” x 15.5” x 31” Unit Weight approx. 71.3 lbs. CBPAC1080H Unit dimensions (W x D x H): 18.7” x 15.5” x 31” Unit Weight approx. 72.1 lbs.

  • Page 11: Window Slider Kit Installation

    ENGLISH SET UP & USE WINDOW SLIDER KIT INSTALLATION “Horizontal” window applications; however, it may be necessary for you to improvise/modify some aspect of the installation procedures for certain types of window. Minimum and maximum window openings: MAXIMUM : 59” (150 cm) MINIMUM : 29.5”...

  • Page 12: Exhaust Hose Installation

    ENGLISH SET UP & USE EXHAUST HOSE INSTALLATION The air exhaust hose and hose inlet must be installed or removed from the portable air conditioner in accordance with the way it is being used: COOL, DEHUMIDIFY, HEAT (Heat model CBPAC1080H only): Air exhaust hose and hose inlet should be connected to the portable air conditioner.

  • Page 13: Control Panel

    ENGLISH SET UP & USE CONTROL PANEL Fan Speed Display Full Tank Heat Indicator Light Area Indicator Light Cool Swing Button Power Button Timer Speed Increase Decrease Mode Sleep Button Button Button Button Selection Button Button Pictures are for illustration purpose only. Your model may or may not have all the features. OPERATING FROM THE CONTROL PANEL The Control Panel enables you to manage all the main functions of the appliance, but to fully exploit its potential, you must use the remote control.
  • Page 14 ENGLISH SET UP & USE DRAINING IN COOL MODE DEHUMIDIFICATION MODE Ideal for hot weather when you need to cool the room. • It is recommended that the To set operation of the appliance dehumidification drain and drain correctly, press the buttons until hose can be used for continuous the desired temperature is displayed.
  • Page 15 ENGLISH SET UP & USE SWING INDICATOR LIGHT TIMER When this light is illuminated, it • To set the AUTO STOP timer. When indicates that the air swing is activated the unit is ON, press the TIMER from the remote and the louvers will button.

  • Page 16: Operating From The Remote Control

    ENGLISH SET UP & USE OPERATING FROM THE REMOTE CONTROL BATTERY INSTALLATION (BATTERIES NOT INCLUDED) (1) Slide open the battery compartment cover. (2) Insert 2 × “AAA”batteries as shown. (3) Slide back the battery cover. CAUTION: Use only AAA or IEC R03 1.5V alkaline batteries. Remove the batteries if the remote is not used for a month or longer.
  • Page 17 ENGLISH SET UP & USE REMOTE CONTROL Time Decrease / Increase ON / OFF Button Timer Button Mode Button Swing Button Speed Button °F /°C Selector Sleep Button Button POWER BUTTON: Press to Turn ON or OFF TIMER BUTTON: Used to set a delay start or shut down time. MODE BUTTON: Each time you press the button COOL, DEHUMIDIFY, FAN, HEAT (model CBPAC1080H is selected) ˚C / ˚F SELECTOR BUTTON: Select Fahrenheit or Celsius.
  • Page 18 ENGLISH SET UP & USE LED Display Indicators Cooling mode Fan speed Dehumidify mode Swing Fan mode Timer on Heat mode Time Heat model Sleep CBPAC1080H only Display temp. or Fahrenheit or hours Celsius. POWER BUTTON • Press to Turn Air Conditioner ON or OFF. Press LED button to illuminate the LED screen on the unit.
  • Page 19 ENGLISH SET UP & USE DEHUMIDIFY Ideal for reducing humidity. • Keep window and door closed for the best dehumidifying effect. • Exhaust hose attachment is not required to reduce humidity, however it is recommended in very humid rooms so the warm air can be exhausted outside. Draining in Dehumidify mode •...
  • Page 20 ENGLISH SET UP & USE TIMER • To set the AUTO STOP timer. When the unit is ON, press the TIMER button. The TIME ON/OFF symbol on the remote LCD display will blink. • Press the button to select the AUTO TIME by 1 hour increments, up to 24 hours.

  • Page 21: Water Drainage

    ENGLISH SET UP & USE WATER DRAINAGE FOR COOLING AND HEAT MODES This air conditioner is equipped with auto water evaporation so the water compartment would not typically fill in cooling or heating mode unless there is high humidity. Water drainage will generally only be required at the end of the season for these modes.

  • Page 22: Cleaning & Care

    ENGLISH CLEANING & CARE CLEANING WARNING: Before cleaning or maintenance, turn the appliance off by pressing the button on the control panel or button on the remote control. Unplug from the electrical outlet. CLEANING THE CABINET You should clean the appliance with a slightly damp cloth then dry with a dry cloth.

  • Page 23: Troubleshooting & Warranty

    ENGLISH TROUBLESHOOTING & WARRANTY BEFORE YOU CALL FOR SERVICE IF THE AIR CONDITIONER FAILS TO OPERATE: A) Check to make sure that the air conditioner is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely.

  • Page 24: Troubleshooting

    ENGLISH TROUBLESHOOTING & WARRANTY Troubleshoot your problem by using the chart below. If the air conditioner still does not work properly, contact W Appliance Co. customer service center or the nearest authorized service center. Customers must never troubleshoot internal components. TROUBLE POSSIBLE CAUSE POSSIBLE REMEDY...

  • Page 25: Limited Warranty

    ENGLISH TROUBLESHOOTING & WARRANTY LIMITED WARRANTY Any repair, replacement, or warranty service, REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF and all questions about this product should be THE CUSTOMER; W Appliance Co.. SHALL NOT BE directed to W Appliance Co.
  • Page 26 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.
  • Page 28 © 2022 W Appliance Company. All Rights Reserved. 1356 Broadway, New York, NY 10018 April 2022...
