Summary of Contents for Coby CBPAC650

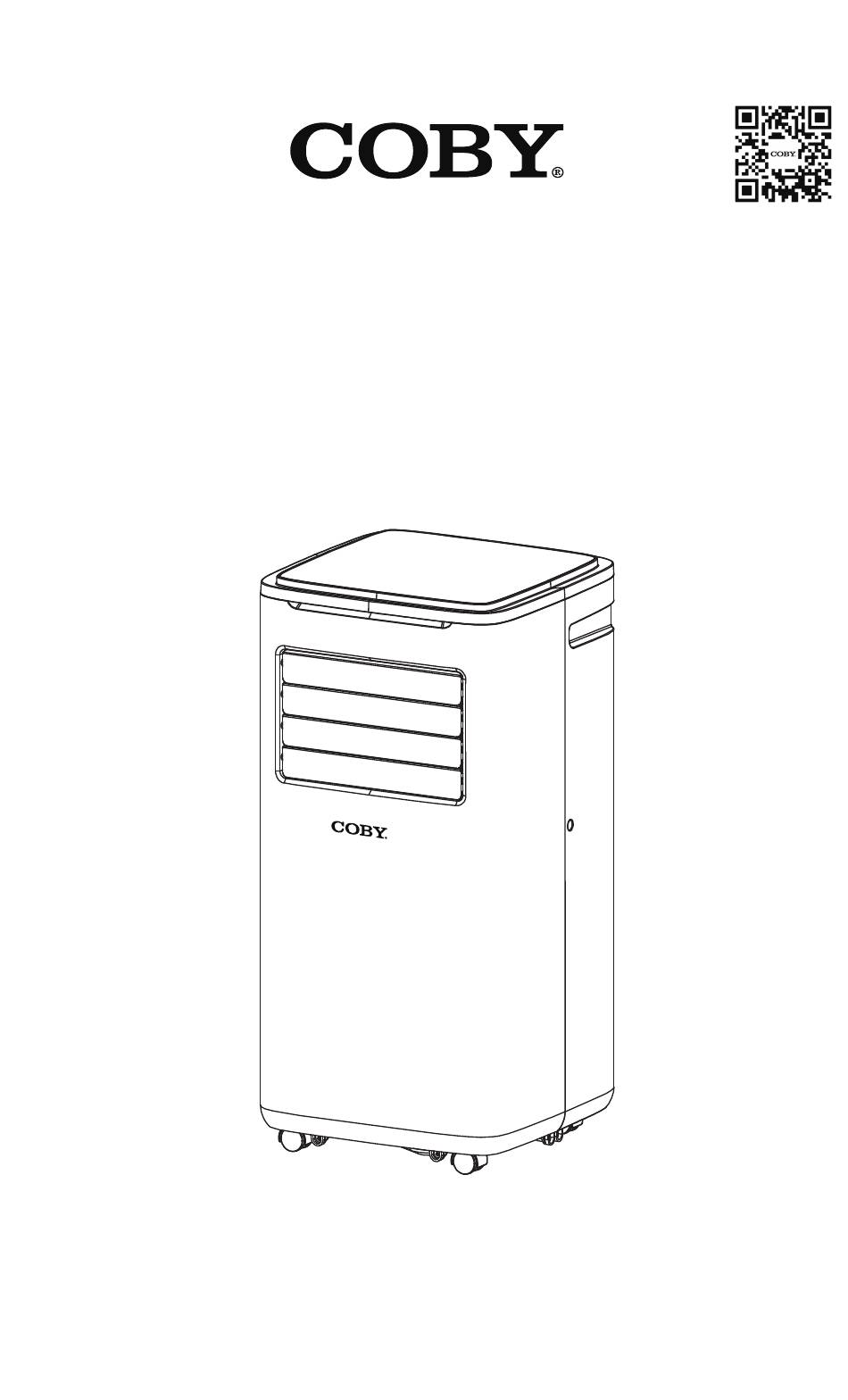

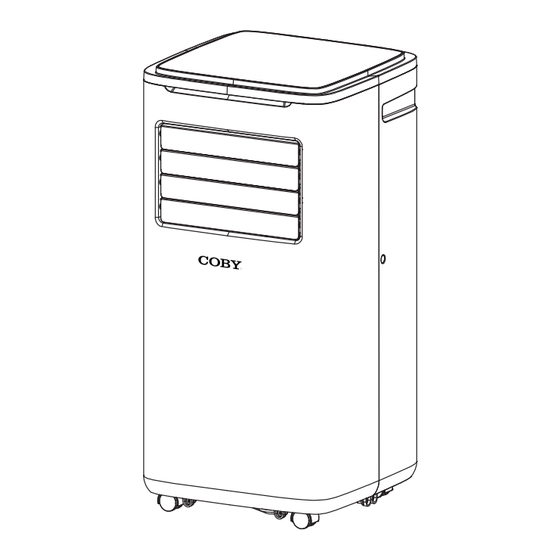

- Page 1 Portable Air Conditioner CBPAC650 CBPAC710...
-
Page 2: Table Of Contents
Customer Service ..............................22 Troubleshooting ..............................23 Limited Warranty ..................................24 PRODUCT REGISTRATION Thank you for purchasing our COBY product. This easy-to-use Model number manual will guide you in getting the best use of your air conditioner. Remember to record the model and Serial number serial numbers. -
Page 3: Safety Information
ENGLISH ENGLISH SAFETY INFORMATION DANGER WARNING CAUTION DANGER - Immediate hazards WARNING - Hazards or unsafe CAUTION - Hazards or unsafe which WILL result in severe practices which COULD result in practices which COULD result in personal injury or death severe personal injury or death minor personal injury IMPORTANT SAFETY INSTRUCTIONS... - Page 4 ENGLISH ENGLISH SAFETY INFORMATION HANDLING ALKALINE BATTERIES WARNING When handling alkaline batteries, basic safety precautions should be followed, including the following Should fluid from the battery accidentally get into your eyes, there is a threat of loss of eyesight, do not rub them. Immediately rinse your eyes with clean tap water and then consult a physician immediately.
-
Page 5: Grounding Instructions
ENGLISH ENGLISH SAFETY INFORMATION GROUNDING INSTRUCTIONS ELECTRICAL REQUIREMENTS In the event of malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. The appliance must be connected to a cord having an equipment- grounding conductor and a grounding plug. -
Page 6: Lcdi Power Cord And Plug
ENGLISH ENGLISH SAFETY INFORMATION LCDI POWER CORD AND PLUG This air conditioner is equipped with an LCDI (Leakage Current Detection and Interruption) power cord that is required by UL. This power supply cord contains state-of-the-art electronics that sense leakage current. If the cord is damaged and leakage occurs, power will be disconnected from the unit. -
Page 7: Safety Guidelines
ENGLISH ENGLISH SAFETY INFORMATION SAFETY GUIDELINES To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. ALWAYS DO THIS NEVER DO THIS ENERGY SAVE •... - Page 8 ENGLISH ENGLISH SAFETY INFORMATION OPERATING CONDITION The air conditioner must be operated within the temperature range indicated below: NOTE: · Unit performance may be affected when in use outside of these operating temperatures. MODE ROOM TEMPERATURE COOL 64˚F (18˚C) ~ 95˚F (35˚C) DEHUMIDIFY 64˚F (18˚C) ~ 95˚F (35˚C) HEAT (ELECTRICAL HEAT TYPE)
-
Page 9: Set Up & Use
ENGLISH ENGLISH SET UP & USE PARTS & FEATURES Control Panel Filter Handle Frame Upper Air Outlet Louver Exhaust Connector Drainage Hole Rubber Plug and Cap Castor Power Cord Air Exhaust Hose Hose Inlet Hose Outlet Remote Control Window Panel 3PCS 2x Wing Nut and Bolt Foam Strip Drain Hose... -
Page 10: Installation Guide
ENGLISH ENGLISH SET UP & USE SPECIFICATIONS CBPAC650 Unit dimensions (W x D x H): 13.9” x 13.3” x 27.5” Unit Weight approx. 49.7 lbs. CBPAC710 Unit dimensions (W x D x H): 13.9” x 13.3” x 27.5” Unit Weight approx. 50 lbs. -
Page 11: Window Slider Kit Installation
ENGLISH ENGLISH SET UP & USE WINDOW SLIDER KIT INSTALLATION “Horizontal” window applications; however, it may be necessary for you to improvise/modify some aspect of the installation procedures for certain types of window. Minimum and maximum window openings: MAXIMUM : 59” (150 cm) MINIMUM : 29.5”... -
Page 12: Exhaust Hose Installation
ENGLISH ENGLISH SET UP & USE EXHAUST HOSE INSTALLATION The air exhaust hose and hose inlet must be installed or removed from the portable air conditioner in accordance with the way it is being used: COOL, DEHUMIDIFY, HEAT (Heat models CCP8HJW and CCP10HJW only): Air exhaust hose and hose inlet should be connected to the portable air conditioner. -
Page 13: Control Panel
ENGLISH ENGLISH SET UP & USE CONTROL PANEL Display Area Fan Speed Full Tank Cool Indicator Light Indicator Light Power Button Timer Sleep Speed Increase Decrease Mode Button Button Button Button Button Selection Button Pictures are for illustration purpose only. Your model may or may not have all the features. OPERATING FROM THE CONTROL PANEL The Control Panel enables you to manage all the main functions of the appliance, but to fully exploit its potential, you must use the remote control. - Page 14 ENGLISH ENGLISH SET UP & USE DRAINING IN COOL MODE DEHUMIDIFICATION MODE Ideal for hot weather when you need to cool the room. • It is recommended that the To set operation of the appliance correctly, press the buttons until hose can be used for continuous the desired temperature is displayed.
- Page 15 ENGLISH ENGLISH SET UP & USE TIMER SLEEP INDICATOR LIGHT When this light is illuminated, it • To set the AUTO STOP timer. When indicates that SLEEP has been the unit is ON, press the TIMER activated from the remote control and button.
-
Page 16: Operating From The Remote Control
ENGLISH ENGLISH SET UP & USE OPERATING FROM THE REMOTE CONTROL BATTERY INSTALLATION (BATTERIES NOT INCLUDED) (1) Slide open the battery compartment cover. (2) Insert 2 × “AAA”batteries as shown. (3) Slide back the battery cover. CAUTION: Use only AAA or IEC R03 1.5V alkaline batteries. Remove the batteries if the remote is not used for a month or longer. - Page 17 ENGLISH ENGLISH SET UP & USE REMOTE CONTROL Speed Button Mode Button Increase Button Sleep Button Timer Button Decrease Button ON / OFF POWER BUTTON: Press to Turn ON or OFF TIMER BUTTON: Used to set a delay start or shut down time. MODE BUTTON: Each time you press the button COOL, DEHUMIDIFY, FAN, INCREASE: Increase the temperature setting.
- Page 18 ENGLISH ENGLISH SET UP & USE POWER BUTTON • Press to Turn Air Conditioner ON or OFF. MODE BUTTON • Press the mode button to scroll through COOL , DRY , FAN COOL • Select the target temperature 61˚F – 88˚F (16˚C – 31˚C) by pressing the buttons until the desired temperature.
- Page 19 ENGLISH ENGLISH SET UP & USE TIMER • To set the AUTO STOP timer. When the unit is ON, press the TIMER button. • Press the button to select the AUTO TIME by 1 hour increments, up to 24 hours. the TIMER indicator light will be illuminated on the control panel of the unit to show that the AUTO STOP program is initiated.
-
Page 20: Water Drainage
ENGLISH SET UP & USE WATER DRAINAGE FOR COOLING AND HEAT MODES This air conditioner is equipped with auto water evaporation so the water compartment would not typically fill in cooling or heating mode unless there is high humidity. Water drainage will generally only be required at the end of the season for these modes. -
Page 21: Cleaning & Care
ENGLISH ENGLISH CLEANING & CARE CLEANING WARNING: Before cleaning or maintenance, turn the appliance off by pressing the button on the control panel or button on the remote control. Unplug from the electrical outlet. CLEANING THE CABINET You should clean the appliance with a slightly damp cloth then dry with a dry cloth. -
Page 22: Troubleshooting & Warranty
ENGLISH ENGLISH TROUBLESHOOTING & WARRANTY BEFORE YOU CALL FOR SERVICE IF THE AIR CONDITIONER FAILS TO OPERATE: A) Check to make sure that the air conditioner is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely. -
Page 23: Troubleshooting
ENGLISH ENGLISH TROUBLESHOOTING & WARRANTY Troubleshoot your problem by using the chart below. If the air conditioner still does not work properly, contact W Appliance Co. customer service center or the nearest authorized service center. Customers must never troubleshoot internal components. TROUBLE POSSIBLE CAUSE POSSIBLE REMEDY... -
Page 24: Limited Warranty
ENGLISH ENGLISH TROUBLESHOOTING & WARRANTY LIMITED WARRANTY Any repair, replacement, or warranty service, REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF and all questions about this product should be THE CUSTOMER; W Appliance Co.. SHALL NOT BE directed to W Appliance Co. - Page 25 ENGLISH This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation.
- Page 28 © 2022 W Appliance Company. All Rights Reserved. 1356 Broadway, New York, NY 10018 April 2022...
Need help?
Do you have a question about the CBPAC650 and is the answer not in the manual?
Questions and answers

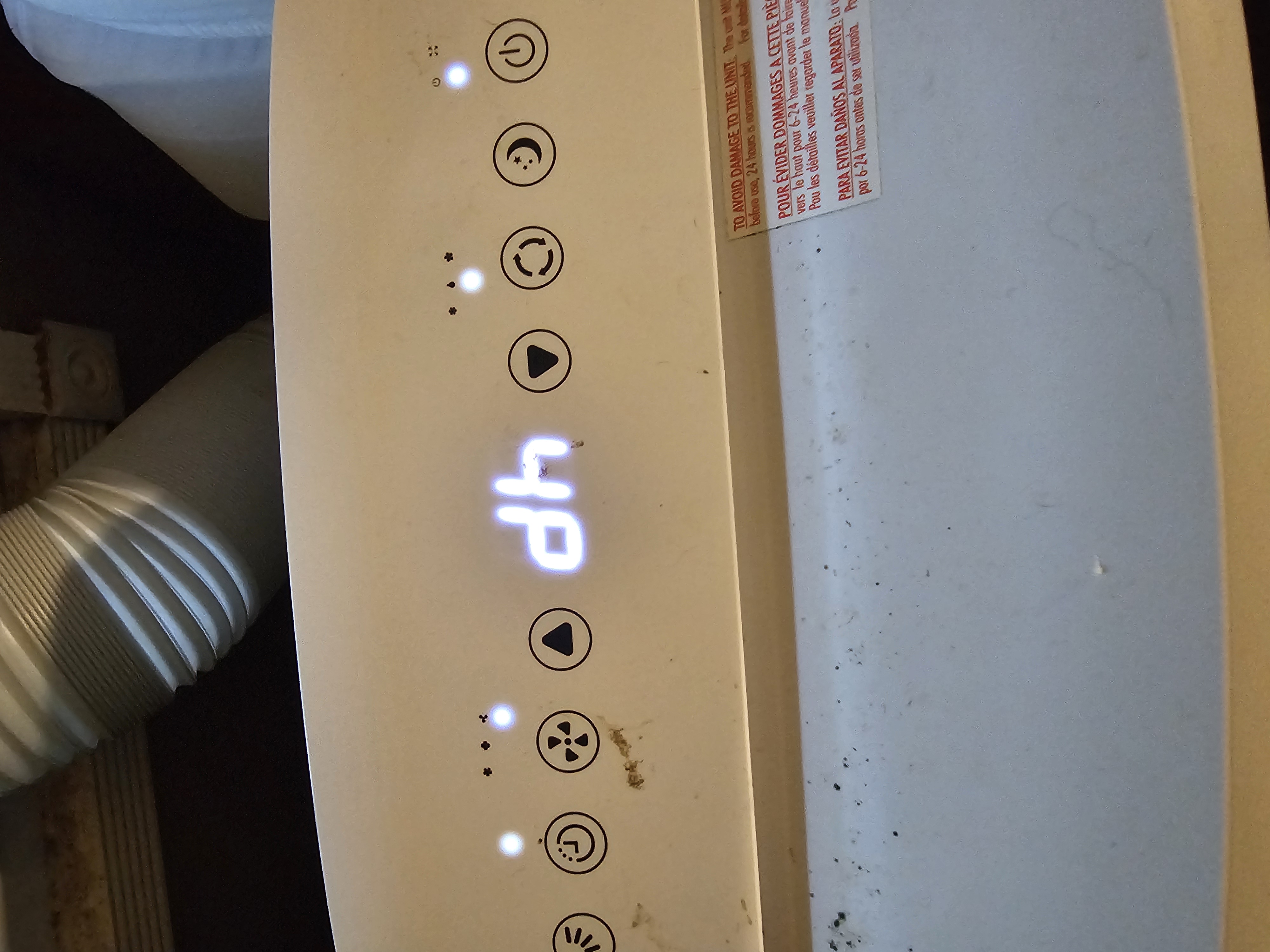

My temperature button says dh what is wrong
"dh" on the temperature button of the Coby CBPAC650 refers to the "DEHUMIDIFY" mode. In this mode, the unit removes moisture from the air, operates the fan at LOW speed, and does not allow temperature or fan speed adjustments.
