Face Hunter
operator's and maintenance manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Face Hunter and is the answer not in the manual?

Questions and answers

Related Manuals for Zirkon zahn Face Hunter

Summary of Contents for Zirkon zahn Face Hunter

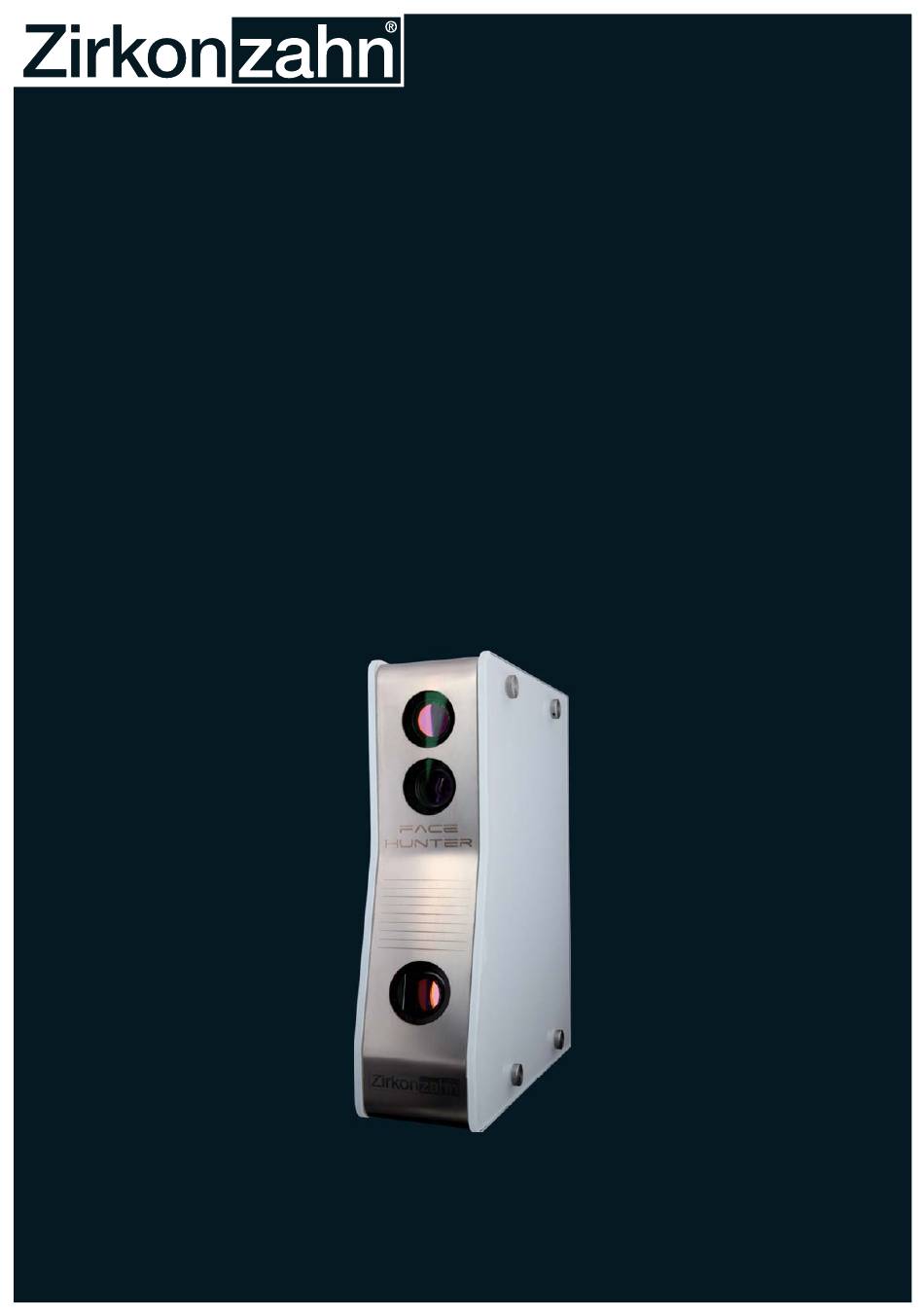

  • Page 1 Face Hunter operator’s and maintenance manual...
  • Page 2 02 02 Operator’s and maintenance manual (original operating manual) Face Hunter Version 22/10/2019 Copyright 2019 Zirkonzahn srl...
  • Page 3 03 03...

  • Page 4: Table Of Contents

    Face Hunter ........
  • Page 5 05 05 ..22 Device ID plate ............22 Installation / First start-up .
  • Page 6 06 06...
  • Page 7 07 07...

  • Page 8: Symbols Used In This Operator's And Maintenance Manual

    08 08 SYMBOLS USED IN THIS OPERATOR’S AND MAINTENANCE MANUAL Caution: Source of danger! Caution: Hazardous voltage! Caution: Danger of explosion! Prohibition: Access by unauthorised personnel is strictly forbidden! Prohibition: Repair and maintenance work on moving parts is strictly forbidden! Prohibition: The use of water, compressed air or solvents is strictly forbidden! Mandatory sign: Unplug from mains power! This symbol refers to the operating company’s binding legal rules or requirements.

  • Page 9: Checklist Of Components And Standard Delivery

    09 09 CHECKLIST OF COMPONENTS AND STANDARD DELIVERY Packing list - Equipment: Face Hunter Set Transfer Fork Face Hunter consisting of 5 bite forks and 10 reference markers Transfer Fork Reference Cover Mains plug Lan cable Dongle Face Hunter Operator’s and maintenance manual...
  • Page 10 10 10...

  • Page 11: Safety And Residual Risks

    SAFETY AND RESIDUAL RISKS MANUFACTURER Zirkonzahn srl, Headquarters Italy – 39030 Gais – BZ, is the manufacturer of the Face Hunter and is referred throughout the Operator’s and Maintenance Manual as Zirkonzahn. GENERAL INFORMATION This Operator’s and Maintenance Manual is an integral part of the Face Hunter and must be kept in a place known to the operator and easily and immediately accessible at all times.

  • Page 12: Service

    Intended use The Face Hunter is an optical scanner for capturing faces in 3-D and for taking 2-D images on the basis of which the planned restoration is then positioned and modeled.

  • Page 13: Warranty

    From the moment of delivery, Zirkonzahn grants a warranty of 12 months for the equipment. If the Face Hunter is passed on to third parties, the warranty obligation is recognised only if the passing on occurs within the set warranty period of 12 months.

  • Page 14: Loss Of Warranty

    Read and follow the safety instructions in this operator’s manual to avoid danger to persons and Safety concept The safety concept of the Face Hunter as well as this Operator’s and Maintenance Manual were compiled according to the requirements of the Machinery Directive 98/37/EC in force until 29 December 2009 and the Machinery Directive 2006/42/EC valid thereafter as well as the European Low Voltage Directive (LVD) 2006/95/ EC.

  • Page 15: Safety Measures When Cleaning The Device

    - Equipment position for a good accessibility to operating elements. - Ventilation openings must be free. Troubleshooting Manual, the Face Hunter must be turned off. Prevent unauthorised operation. For troubleshooting please contact our Zirkonzahn Support: Tel. +39 0474 066 630, support@zirkonzahn.com Restart protection after power failure In the event of malfunction of the system during a phase of work (e.g.

  • Page 16: Residual Risks

    Face Hunter with solvents. TRANSPORT, UNPACKING AND SETTING UP OF THE DEVICE - The Face Hunter has to be moved and put down on surfaces with suitable stability, in a dry place and in a non-corrosive environment. - Stable, non-slip installation surface, which can bear a minimum weight of 10 kg.

  • Page 17: Shipping Costs

    CHAPTER 17 17 SAFETY AND RESIDUAL RISKS SHIPPING COSTS Unless otherwise agreed in writing, the buyer is responsible for dispatch, freight and possible import fees. Check the delivery for completeness and integrity immediately after receipt. Evident defects must be noted on the delivery documents, in order to claim for compensation against the transport company.
  • Page 18 CHAPTER 18 18 SAFETY AND RESIDUAL RISKS...

  • Page 19: Components

    CHAPTER 2 19 19 COMPONENTS COMPONENTS...

  • Page 20: Face Hunter

    CHAPTER 2 20 20 COMPONENTS FACE HUNTER Optional...

  • Page 21: Technical Data

    CHAPTER 3 21 21 TECHNICAL DATA TECHNICAL DATA - Overall height 31 cm - Depth 25 cm - Width 9 cm - Weight 5.6 kg - Scanning time per scan under 0.3 seconds - Glass front plate, cladding Hardened Securit Glass UNI ISO 12150 - Operating voltage 110 - 240 V - Power input...

  • Page 22: Device Id Plate

    Transport, install, connect and set up the equipment according to the aforementioned indications. Device ID plate The device ID plate of the Face Hunter is attached on the rear of the device.

  • Page 23: Installation / First Start-Up

    - The Face Hunter is delivered in a cardboard box. - Do not put any other object on top of the cardboard box. - Caution when removing the cardboard box (glass cladding). - Pay attention to danger of injury when unpacking and setting up the Face Hunter.

  • Page 24: Setting Up And Installation

    - Do not expose to direct solar radiation. - Maximum relative air humidity of 75% at 30 °C; - The Face Hunter has to be moved and put down on surfaces with suitable stability, in a dry place and in a non-corrosive environment.

  • Page 25: First Start-Up

    FIRST START-UP - Visual inspection of the device. - Switch on the power supply by pressing the On/Off switch on the back of the Face Hunter. - Carry out a white balance for optimal scan results. - The white balance should be made at a distance of at least one meter from a gray or black object.
  • Page 26 CHAPTER 4 26 26 INSTALLATION / FIRST START-UP...
  • Page 27 CHAPTER 4 27 27 INSTALLATION / FIRST START-UP Backside Face Hunter...
  • Page 28 CHAPTER 4 28 28 INSTALLATION / FIRST START-UP On/Off Mains plug Backside Face Hunter...
  • Page 29 CHAPTER 4 29 29 INSTALLATION / FIRST START-UP Connection to PC Plug in the Face Hunter dongle; if another dongle is already plugged in, replace it with the Face Hunter dongle LAN connection IP address: 172.17.23.12 Backside PC Backside Face Hunter...
  • Page 30 CHAPTER 4 30 30 INSTALLATION / FIRST START-UP Pull out the diffu- plate and fold downwards Exposure time Focal length...
  • Page 31 CHAPTER 4 31 31 INSTALLATION / FIRST START-UP...
  • Page 32 CHAPTER 4 32 32 INSTALLATION / FIRST START-UP Connection to laptop Laptop connections Plug in the Face Hunter dongle; if another dongle is already plugged in, replace it with the Face Hunter dongle LAN connection IP address: 172.17.23.12 Backside Face Hunter...

  • Page 33: Operation

    Training related information and schedules are available at your Zirkonzahn partner or under www.zirkonzahn.com. INSTALLATION AND SETTING UP and align them. Never position the patient closer than 1 m in front of the Face Hunter. Adjust the tripod height to the size of the patient. Start the scanning process. OPERATION 01.

  • Page 34: Shutting Down The Device

    07. Click on “Face Scan” in the scan manager to change into the Face Hunter mode. 08. Position the patient at least one meter in front of the Face Hunter and check in the live image in the software whether the whole face is visible.

  • Page 35: Cleaning And Maintenance

    CHAPTER 6 35 35 CLEANING AND MAINTENANCE CLEANING AND MAINTENANCE SAFETY MEASURES WHEN CLEANING THE DEVICE CAUTION: When designing the device we assumed that all operators have a basic technical knowledge. Therefore, all cleaning and maintenance work can be easily carried out without maintenance contract.

  • Page 36: Maintenance And Control

    - Functional check of the mechanical components. - Visual inspection for damages or foreign bodies. If after inspection defects are detected, the Face Hunter may not be used. The device must be shut down and secured against unauthorised access. For trouble shooting please contact our Zirkonzahn Support: Tel.

  • Page 37: Repairs And Troubleshooting

    CHAPTER 7 37 37 REPAIRS AND TROUBLESHOOTING REPAIRS AND TROUBLESHOOTING DETECTED FAULTS If malfunctions or defects are detected during the maintenance of the device, these must be remedied before the renewed start-up, in order to ensure a trouble-free and safe operation. Defects, damages and malfunctions must be reported without delay to Zirkonzahn or to the service under their guidance or in accordance with the Operator’s and Maintenance Manual.

  • Page 38: Troubleshooting

    CHAPTER 7 38 38 REPAIRS AND TROUBLESHOOTING TROUBLESHOOTING Defects, damages and malfunctions must be reported without delay to Zirkonzahn or to the service under their guidance or in accordance with the Operator’s and Maintenance Manual. RETURN contract in order to discuss further steps in detail. If return shipment is required, always use the original packaging.
  • Page 39 CHAPTER 7 39 39 REPAIRS AND TROUBLESHOOTING...
  • Page 40 HUMAN ZIRCONIUM TECHNOLOGY Zirkonzahn Worldwide – Tel +39 0474 066 660 – info@zirkonzahn.com – www.zirkonzahn.com All information is subject to change. Errors and omissions excepted. Version: 22/10/2019...
