Summary of Contents for Drinkpod DP-RO-PRO

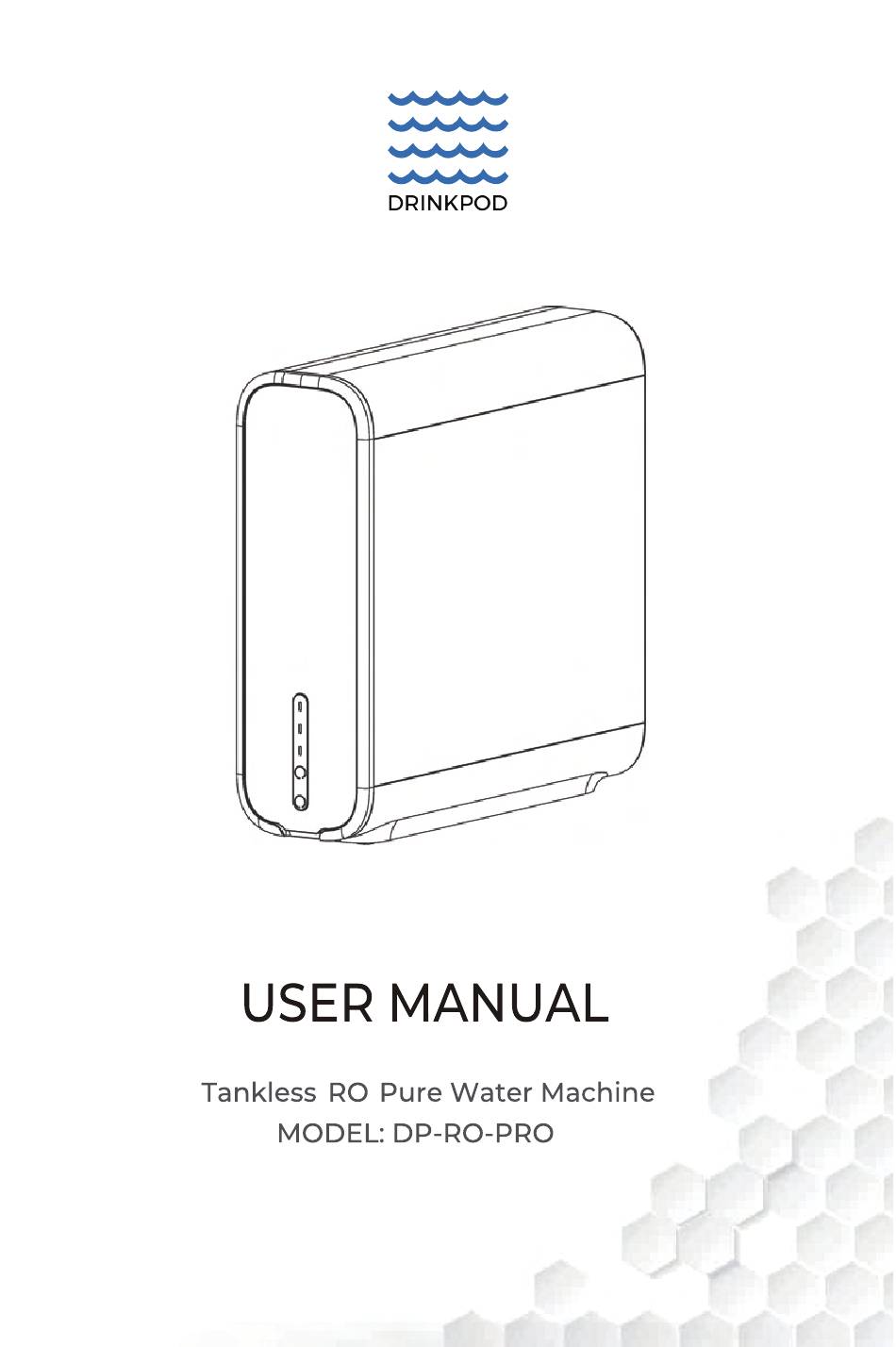

- Page 1 www.drinkpod.com...
-
Page 2: Table Of Contents
INSTRUCTIONS 1.Function ------------------------------------------------------------------------------------------ 2.Instructions -------------------------------------------------------------------------------------- 3.Schedule of filter change -------------------------------------------------------------------- 4.Core change guide ---------------------------------------------------------------------------- 5.Process flow chart of water production -------------------------------------------------- 6.Electrical schematic diagram --------------------------------------------------------------- 7.Installation hint --------------------------------------------------------------------------------- 8.Technical parameters ------------------------------------------------------------------------ 9.Matters needing attention ------------------------------------------------------------------- 10.lt is recommended to replace the periodic table for key components ----------... -
Page 3: Function
Component Chart: Faucet Power Adapter Connectors Saddel Valv Tubes Reverse Osmosis (RO) System Blue Collar Clip TPFE/Teflon Tape Valve Adapter 1 Valve Adapter 2 SCAN HERE FOR REPLACEMENT FILTERS purify plush... - Page 4 Reset button: When the water purifier is working, press and hold the "Reset" button for 3 seconds to enter the filter element reset program, and then tap "Reset"key to select the corresponding filter element, the icon of the selected filter element flashes (with an alarm sound), and the selected filter element needs to be reset.After the filter element, press the reset button for 3 seconds, the corresponding filter element life will be reset (accompanied by an alarm...
- Page 5 reverse osmosis membrane filter pump side front cover panel cover frame panel cover nlet solenoid High voltage base Flush indicator booster valve composite filter switch board Solenoid pump...
-
Page 6: Schedule Of Filter Change
3. Schedule Of Filter Change Filter element replacement cycle (it is recommended that the filter element replacement cycle is as follows:)): After the filter element of the product is used for a period of time, various impurities will be accumulated in the filter element, which will affect the effluent speed. In order to maintain normal effluent, the filter element should be replaced regularly. -
Page 7: Core Change Guide
4.Core change guide Warm reminder: please cut off the water source and turn on the faucet to relieve pressure before changing the filter element. The whole machine runs for 3-5 minutes, and then the power is cut off. A small amount of residual water will flow out when the filter element is replaced. First, remove the old filter element. -
Page 8: Process Flow Chart Of Water Production
light display faucet reverse osmosis membrane filter composite filter... -
Page 9: Installation Hint
Debugging method. 1. After the installation of the whole machine is completed, open the three-way ball valve, check that there is no water leakage between the whole machine and other joints, and turn on the power supply. 2. Turn on the faucet and wash the reverse osmosis membrane filter element; in order to make the reverse osmosis membrane filter element have the best purification effect, please. -
Page 10: Technical Parameters
8.Technical parameters Pro duct Name. Reverse osmosis water pur ifier. 110V / 50 Hz. Voltage / freq ue ncy. 90W. Rated power. 0 .1 MPa-0.4MPa. Ap plicab le water pr essure. 95L/ H. Clean water flow. 40 00L. Rated total net water. Class II. -
Page 11: Lt Is Recommended To Replace The Periodic Table For Key Components
strictly forbidden lo use beyond the range. 3. This product is only suitable for indoor installation, and there should be reliable ground gushing within 1.5 meters around the installation, so as lo avoid the loss caused by waler leakage caused by poor batch water. 4. - Page 12 888 852 7873...
Need help?
Do you have a question about the DP-RO-PRO and is the answer not in the manual?
Questions and answers
how do you change the filter for the drinkpod model dp-ro-pro ? there are no instructions in the user manual. i cannot find a video on youtube.
To change the filter for the Drinkpod DP-RO-PRO model:
1. Press and hold the "Reset" button for 3 seconds to enter the filter element reset program.
2. Tap the "Reset" button to select the filter element you are replacing. The selected filter icon will flash and an alarm will sound.
3. Replace the selected filter element physically (specific steps for physical replacement are not detailed in the provided context).
4. After replacing the filter, press and hold the "Reset" button again for 3 seconds to reset the filter life. An alarm will sound to confirm.
Use only authentic filter elements from the manufacturer to maintain warranty and performance.
