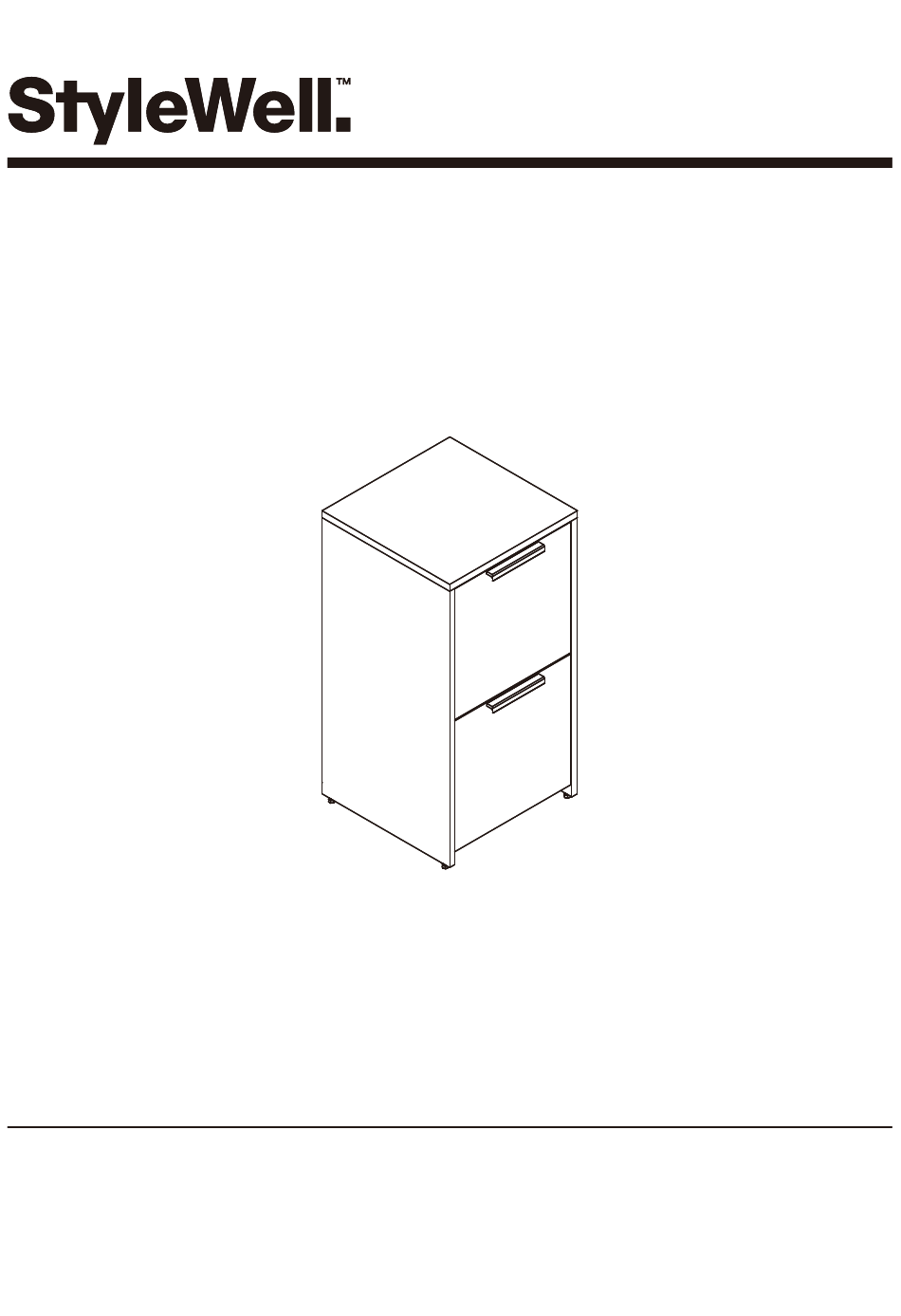

- Page 1 THANK YOU THANK YOU We appreciate the trust and confidence you have placed in StyleWell through the purchase of this File Cabinet. We appreciate the trust and confidence you have placed in StyleWell through the purchase of this File Cabinet.
-
Page 2: Safety Information
Table of Contents ................... Table of Contents Pre-assembly (continued) ........Safety Information ..........CAM Fastening system ............Warranty ..............Assembly 7-14 ..........Troubleshooting 1 Year Warranty ......................What is Covered ............Maintenance ..........Care and Cleaning What is Not Covered ........... -
Page 3: Pre-Assembly
Pre-assembly PLANNING ASSEMBLY Remove all Packaging materials, staples and packing straps from the carton. Refer to Parts List and Hardware List, and ensure parts and hardware are correct before assembly. Contact customer service for missing parts. Plece all wooden parts on a clean, at, and soft surface (e.g.carpet or reg) to prevent scratch and damage to parts TOOLS REQUIRED Slotted Phillips... -
Page 4: Hardware Included
Pre-assembly HARDWARE INCLUDED NOTE: Hardware not shown to actual size. The bigger DD dowel are used for cabinet panel D, and EE the smaller dowel are used for drawer panel H, I & J. Part Description Size Quantity Screw 3.5 x 14 mm Screw 4 x 30 mm Locking pin... - Page 5 Pre-assembly (continued) PANELS INCLUDED Part Description Size Quantity Top panel 395 x 395 mm Bottom panel 375 x 363 mm 394 x 742 mm Right side 394 x 742 mm Left side Back panel 390 x 729 mm Drawer front 356 x 350 mm Drawer back 313 x 274 mm...
- Page 6 CAM Fastening system Assembly Disassembly HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance.
- Page 7 Assembly Side & bottom panel assembly Metal parts & dowel preparation DD x 2 CC x 2 Large DD x 2 CC x 2 DD x 4 Un nished edge Large FF x 4 It takes 2 adults to safely assemble this step CC x 4 DD x 8...
-
Page 8: Top Assembly
Assembly Top assembly Un nished edge Large FF x 4 CC x 4 KK x 1 LL x 1 Attaching back panel and leg levelers Un nished surface 90˚ AA x 10 JJ x 4 II x 4 FF x 4 LL x 1 KK x 1 JJ x 4... - Page 9 Assembly Upper drawer assembly ) Drawer front and upper drawer right preparation ) Attaching Drawer bottom & Back Un nished surface CC x 4 BB x 4 EE x 1 EE x 1 ) Attaching drawer sides ) Attaching handle PP x 2 GG x 1 HH x 4...
- Page 10 Assembly Lower drawer assembly ) Drawer front and lower drawer right preparation ) Attaching Drawer bottom & Back CC x 4 Un nished surface BB x 4 EE x 1 EE x 1 ) Attaching drawer sides ) Attaching handle PP x 2 HH x 4 GG x 1...
-
Page 11: Safety Notice
Assembly Fixing to wall Drill a hole and insert Wall pulg. Fixing the unit onto the wall use screw. NOTE: Make sure that the screws and wall plugs being used are suitable for supporting your unit. Safety notice The consumer product safety commission recommends anchoring furniture in homes where children live or visit. In order to protect you and your family the manufacturer of this product has included an easy to install safety device. - Page 12 Assembly Inserting drawers Insert drawer into cabinet and close. the drawer slide release lever will lock as drawer is closed. Make sure drawer aligns properly and rides smoothly on the side mount drawer slides. A: Pull out slide & bearings outside to the photo marked. It takes 2 adults to safely assemble this step B: Pull out bearings outside around 4cm from front edge of...
- Page 13 Assembly Attaching the file runner OO x 4 OO x 4 HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance.
- Page 14 Assembly Adjusting the leg levelers If the ground is not even the unit will be unstable, you can adjust the foot leveler under the leg. Turn left to tighten, turn right to loosen. HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance.
-
Page 15: Troubleshooting
Troubleshooting Problems Solutions Drawer cannot be attached to product Check if drawer two side boards slides are assembled backwards. Check drawer attched frame silde bearing pull outside before assembly. Drawer can not pull in or pull out smoothly Please refer to drawer assembly section. Drawer cannot be removed When removing the drawer, tip-up the safety release tab to remove the drawer from the body. - Page 16 Questions, problems, missing parts? Before returning to the store, call Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-877-527-0313 Retain this manual for future use.
