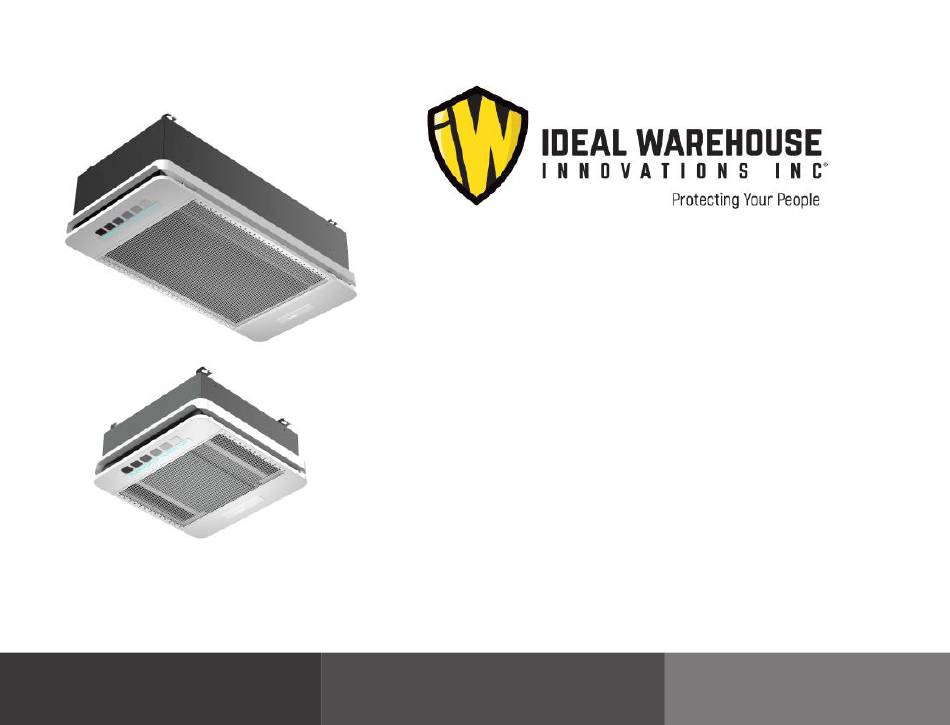

- Page 1 COBALT (SCA14000) INSTALLATION MANUAL Read the manual thoroughly before operation and retain for future reference. REV SCA14000-IM-01...
-
Page 2: Table Of Contents
SCA14000 Cobalt Installation Guide DISCLAIMER -------------------------------------------------------------------- 2 SAFETY PRECAUTIONS -------------------------------------------------- 3-6 FEATURES AND SPECIFICATIONS -------------------------------------- 7 WHAT’S INCLUDED ----------------------------------------------------------- 8 INSTALLATION BOM LIST --------------------------------------------------- 9 INSTALLATION REMARKS -------------------------------------------- 10-12 ELECTRICAL SUPPLY REMARKS -------------------------------------- 13 INSTALLATION INSTRUCTIONS ------------------------------------ 14-19 CONCRETE CEILING --------------------------------------- 14-17... -
Page 3: Disclaimer
SCA14000 Cobalt Installation Guide DISCLAIMER A printed copy of all the electronic materials is included in the unit packaging. The ceiling installation of the unit should be performed by a certified professional. Read the label on the unit, operation and installation manuals before use and make sure you follow all the precautions outlined in the manuals. -
Page 4: Safety Precautions
SCA14000 Cobalt Installation Guide SAFETY PRECAUTIONS FIRST AID INSTRUCTIONS In case of injury, clean the area using soap and warm water, apply antibiotic ointment and a bandage, and seek immediate medical attention. OPERATING ENVIRONMENT CAUTIONS • DO NOT place in rooms with high heat, damp, or wet places. - Page 5 If construction needs to be conducted in an area where Cobalt units are installed, it is recommended that the unit is turned off. After the construction is concluded in the area, units are to be vacuumed and filters replaced.
- Page 6 – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, AND INJURY TO PERSONS, Cobalt unit must be installed with brackets and screws that are marked in the installation manual to indicate the suitability with this model. Other types of brackets and fasteners cannot be substituted.
- Page 7 SCA14000 Cobalt Installation Guide SAFETY PRECAUTIONS CARE AND MAINTENANCE/ SERVICING CAUTIONS WARNING – RISK OF FIRE. Never operate the air purifier in a space that contains flammable gases. Never use the equipment to extract or filter flammable, blazing or burning particles, chemicals, or liquids. Never use the unit to extract or filter hostile vapors or sharp particles.
-
Page 8: Features And Specifications
SCA14000 Cobalt Installation Guide FEATURES AND SPECIFICATIONS The device features: Automatic Proximity Sensor On/Off Automatic Timer Remote Control Model No. SCA14000–2x4 Power Requirement 120V, 60 Hz Rated Power 250 W, 2.1A Fan Motor 310 VDC, 0.98 A, 113 W Dimensions (L) 1245.0 mm x (W) 636.0 mm x (H) 360.0 mm... -
Page 9: What's Included
SCA14000 Cobalt Installation Guide WHAT’S INCLUDED Below items are included with the SCA14000 air purifier: Cobalt Unit H13 Filters (x2), included in the unit Mount Bracket (x4) ¼” Screws (x8) Remote Control Remote Control AAA Battery (x2) -
Page 10: Installation Bom List
SCA14000 Cobalt Installation Guide INSTALLATION BOM LIST (NOT INCLUDED IN PACKAGING) Below items are required for the SCA14000: INSTALLATION NAME REMARK TYPE Concrete Ceiling/ ¼” Threaded Rod Hanging Bar I-Beam Ceiling 100+ lbs. rated Concrete Ceiling/ ¼” Expansion Bolt Expansion Bolt I-Beam Ceiling 100+ lbs. -
Page 11: Installation Remarks
SCA14000 Cobalt Installation Guide INSTALLATION REMARKS The SCA14000 is designed to be installed as a fixed built-in unit by a qualified installer. In addition to the following instructions the SCA14000 shall be installed: • ANSI/NFPA 70 In the United States, in accordance with the National Electric Code/State, and Municipal codes and/or local codes. - Page 12 SCA14000 Cobalt Installation Guide INSTALLATION REMARKS • The Cobalt unit can be hoisted from the concrete ceiling or the I-beam. • Ensure the unit is being installed level in both directions. • Follow ceiling tile system manufacturer instructions for integration compatibility.
- Page 13 • It is recommended that Cobalt unit is positioned centrally within a room. It is important that the intake side of the unit is away from the supply of the HVAC system. To improve air quality in the room, the unit should circulate and filter the existing air in the room, not the fresh air supplied by the HVAC system.
-
Page 14: Electrical Supply Remarks
SCA14000 Cobalt Installation Guide ELECTRICAL SUPPLY REMARKS • The customer has the responsibility to ensure that the unit installation is in compliance with all national and local electrical and building codes and ordinances. The electrical supply which the unit is designed for is 120VAC, 60 Hz. -
Page 15: Installation Instructions
SCA14000 Cobalt Installation Guide INSTALLATION INSTRUCTIONS CONCRETE CEILING 1. Determine the installation location; the reinforced concrete ceiling must be selected for installation. 2. Draw rectangles at the installation position with dimensions as follows： - SCA14000–2x4: 1037mm*490mm - SCA14000–2x2: 490mm*490mm The four vertices of the rectangle are the anchor points for installing the expansion screw. - Page 16 SCA14000 Cobalt Installation Guide 3. Use an electric hammer to drill holes in four anchor points, ensuring a minimum depth of two inches into the slab and install expansion screws.
- Page 17 SCA14000 Cobalt Installation Guide 4. Drive the expansion screw, screw in the threaded rod, and then screw in the four Nuts, where nut 3 is next to nut 4. The position of each screw should be at the same height from the ceiling.
- Page 18 SCA14000 Cobalt Installation Guide 6. Using a level in both directions, adjust nut 3 and nut 4 to ensure the machine is leveled horizontally. Finally tighten nuts 3 and 4 to fix the machine place, connect the power to complete the installation.
-
Page 19: I-Beam Ceiling
SCA14000 Cobalt Installation Guide CEILING INSTALLATION I-BEAM CEILING 1. Determine the installation location; the I-Beam structure must be directly under the suspended ceiling opening or desired area. 2. Draw rectangles at the installation position with dimensions as follows： - SCA14000–2x4: 1037mm*490mm - SCA14000–2x2: 490mm*490mm... - Page 20 SCA14000 Cobalt Installation Guide 3. Load all the four cabinet hangers into nut 3. 4. Secure the threaded rod to the I- Beam as shown. 5. Using a level in both directions, adjust nut 3 and nut 4 to ensure the machine is leveled horizontally.
-
Page 21: Care And Maintenance
SCA14000 Cobalt Installation Guide CARE AND MAINTENANCE If the device is operating in an atmosphere with heavy dust, particulate, or pet dander, you may need to periodically vacuum the pre-filters for optimal performance. CAUTION: • DO NOT clean the filters and any other parts with liquid, especially alcohol, gasoline, paint thinner, etc. -
Page 22: Troubleshooting
SCA14000 Cobalt Installation Guide TROUBLESHOOTING Most service problems that appear to be major can often be resolved easily. You can be your own troubleshooter by reviewing the following guide. All other major servicing should be done by the manufacturer. SOLUTION... - Page 23 SCA14000 Cobalt Installation Guide One or both HEPA filters are Replace HEPA filter(s) fully loaded Replace HEPA filters and reset “Surgically Clean Air™” LED Filter change cycle timer expired the timer flashing Replace batteries Battery nearly exhausted Remote Control is...
- Page 24 Ontario | Ohio | California Tel: 1-866-828-6737 www.idealwarehouse.com info@idealwarehouse.com...
