LG FLATRON W2343S Service Manual

Hide thumbs Also See for FLATRON W2343S:

Advertisement

Quick Links

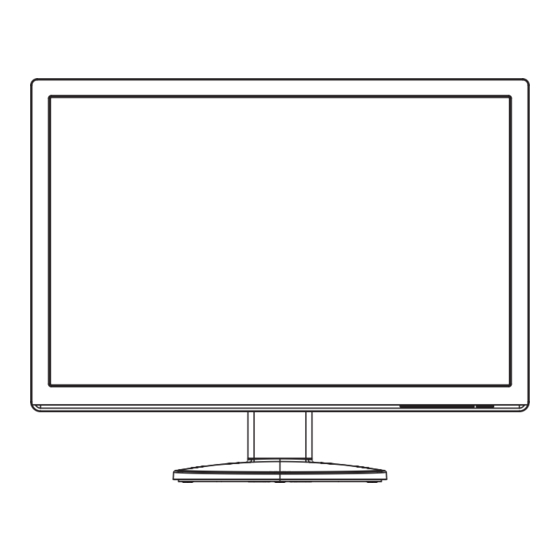

COLOR MONITOR
SERVICE MANUAL
CHASSIS NO. : LM91G
MODEL:
(
) **Same model for Service
CAUTION
BEFORE SERVICING THE UNIT,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
Website:http://biz.LGservice.com
E-mail:http://www.LGEservice.com/techsup.html
W2343S(W2343S-**V)
Internal Use Only

Advertisement

Table of Contents
loading

Summary of Contents for LG FLATRON W2343S

  • Page 1 Internal Use Only Website:http://biz.LGservice.com E-mail:http://www.LGEservice.com/techsup.html COLOR MONITOR SERVICE MANUAL CHASSIS NO. : LM91G MODEL: W2343S(W2343S-**V) ) **Same model for Service CAUTION BEFORE SERVICING THE UNIT, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
  • Page 2: Table Of Contents

    Vertical : 56 ~ 75Hz : 4.4 kg (9.82 lbs) Net. Weight : 6.2 kg (13.78 lbs) Gross Weight Copyright 2007 LG Electronics. Inc. All right reserved. - 2 - LGE Internal Use Only Only for training and service purposes...
  • Page 3: Precautions

    CAUTION Please use only a plastic screwdriver to protect yourself from shock hazard during service operation. Copyright 2007 LG Electronics. Inc. All right reserved. - 4 - LGE Internal Use Only Only for training and service purposes...
  • Page 4 8. Always connect the test receiver ground lead to the receiver chassis ground before connecting the test receiver positive lead. Always remove the test receiver ground lead last. Copyright 2007 LG Electronics. Inc. All right reserved. - 5 - LGE Internal Use Only Only for training and service purposes...
  • Page 5 IC. circuit board to prevent excessive component temperatures. Copyright 2007 LG Electronics. Inc. All right reserved. - 6 - LGE Internal Use Only Only for training and service purposes...
  • Page 6 Solder the overlapped area and clip off any excess jumper wire. Copyright 2007 LG Electronics. Inc. All right reserved. - 7 - LGE Internal Use Only Only for training and service purposes...
  • Page 7: Timing Chart

    1680 1680 x 1050 V(Lines) 59.954 1089 1050 H(Pixels) 148.50 67.50 2200 1920 1920 x 1080 V(Lines) 1125 1080 Copyright 2007 LG Electronics. Inc. All right reserved. - 8 - LGE Internal Use Only Only for training and service purposes...
  • Page 8: Disassembly

    2. Then, let the all latches are separated. 3. Put the front face down. Disassemble back cover. - 9 - Copyright 2007 LG Electronics. Inc. All right reserved. LGE Internal Use Only Only for training and service purposes...
  • Page 9: Block Diagram

    BLOCK DIAGRAM Copyright 2007 LG Electronics. Inc. All right reserved. - 10 - LGE Internal Use Only Only for training and service purposes...
  • Page 10: Description Of Block Diagram

    The Micom distinguishes polarity and frequency of the H/V sync are supplied from signal cable. The controlled data of each modes is stored in EEPROM. Copyright 2007 LG Electronics. Inc. All right reserved. - 11 - LGE Internal Use Only...
  • Page 11 This part function is to collect the any change from the DC output and feed back to the primary through photo transistor. Copyright 2007 LG Electronics. Inc. All right reserved. - 12 - LGE Internal Use Only Only for training and service purposes...
  • Page 12: Adjustment

    Click “ Write” button c) Remove all default number d) Add 300-3FF e) Click Start button. f) Click Exit button. Copyright 2007 LG Electronics. Inc. All right reserved. - 13 - LGE Internal Use Only Only for training and service purposes...
  • Page 13 (110V/220V) 74LS06 Power LED 4.7K 74LS06 ST Switch V-Sync On/Off Switch (Switch must be ON.) Figure 1. Cable Connection Copyright 2007 LG Electronics. Inc. All right reserved. - 14 - LGE Internal Use Only Only for training and service purposes...
  • Page 14: Troubleshooting Guide

    IS IC1 PIN3(1.8V) IC1(3.3V) LINE IC1 PIN1(3.3V) CHECK U201 PIN2 CHECK CRYSTAL(X501) PULSE CHECK U201 Waveforms P605-#5,6 IC1-#3 IC1-#1 U201-#2 Copyright 2007 LG Electronics. Inc. All right reserved. - 15 - LGE Internal Use Only Only for training and service purposes...
  • Page 15 POWER BOARD (LIPS) TO THE LAMP WIRE OF THE LCD MODULE REPLACE LCD MODULE Waveforms P605 -#5,6 P605 -#10 LAMP CURRENT Copyright 2007 LG Electronics. Inc. All right reserved. - 16 - LGE Internal Use Only Only for training and service purposes...
  • Page 16 PIN17(V-SYNC). FROM D-SUB TO U201 IS PULSE APPEARED AT SIGNAL PINS? TROUBLE IN CABLE OR LCD MODULE Waveforms U201-#1 Copyright 2007 LG Electronics. Inc. All right reserved. - 17 - LGE Internal Use Only Only for training and service purposes...
  • Page 17 INTO DPM MODE APPEARED? CHECK U201 PIN16,17 CHECK H/V SYNC LINE SYNC PULSE TROUBLE IN U201 Waveforms 1 H-SYNC 2 V-SYNC Copyright 2007 LG Electronics. Inc. All right reserved. - 18 - LGE Internal Use Only Only for training and service purposes...
  • Page 18: Wiring Diagram

    WIRING DIAGRAM EAD57188301 6631T20023T 6631900011J Copyright 2007 LG Electronics. Inc. All right reserved. - 19 - LGE Internal Use Only Only for training and service purposes...
  • Page 19: Exploded View

    EXPLODED VIEW - 20 -...
  • Page 24 FEB. 2009 P/NO : MFL61926815 Printed in China...
