** Please read this entire manual before proceeding with the installation **
WHAT IS IN THE BOX:
(1) Base bracket assembly
(2) Adjustable bracket assemblies
(for touring shield, if ordered)
(2) Fly screen bracket assemblies
(for fly screen, if ordered)
(4) M6 x 12 button screws
(8) M5 x 20 truss screws
(8) M5 plastic washers
(8) M5 soft rubber washers
Tools Needed:
4 mm Allen wrench (hex key)
5 mm Allen wrench (hex key)
10mm Socket wrench
We would love to have your feedback on this Installation Manual. Please email us at support@madstad.com

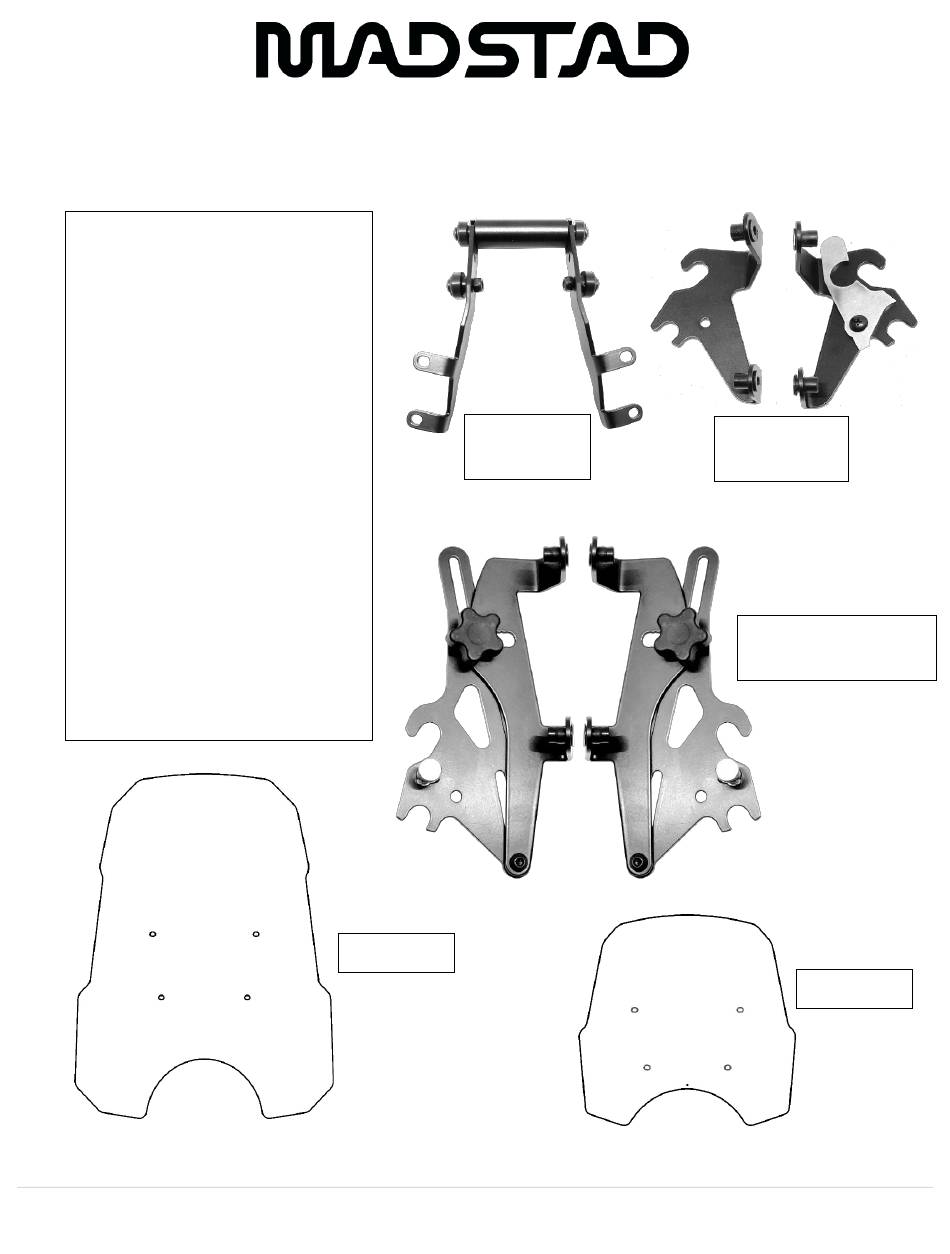

Indian FTR1200 Quick-Release Shields System
Windshield
Base Bracket
Assembly
Fly Screen
Brackets
Adjustable Windshield
Brackets
Fly Screen
1 |
P a g e
Advertisement
Table of Contents
Related Manuals for MAD STAD Indian FTR1200
Summary of Contents for MAD STAD Indian FTR1200
- Page 1 Indian FTR1200 Quick-Release Shields System ** Please read this entire manual before proceeding with the installation ** WHAT IS IN THE BOX: (1) Base bracket assembly (2) Adjustable bracket assemblies (for touring shield, if ordered) (2) Fly screen bracket assemblies...
- Page 2 1. Headlight Removal A. The headlight has to be temporary removed to install the main bracket. There are two 10mm nuts at the bottom of the headlight, on the fork brace, that have to be removed. B. There are also two screws that have to be removed right above the headlight, on the headlight shroud. C.
- Page 3 D. There are two wiring clusters – one for the headlight and the other for components. Both are attached to the back of the headlight by a plastic retainer clip. They can be simply pulled out, away from the headlight. Disconnect the electrical connector going into the back of the headlight as seen below, then remove the headlight.
- Page 4 B. The Headlight shroud sits back on the two threaded posts on the fork clamp and are attached with the 10mm nuts. Then the top of the shroud is attached using the 5mm screws that were removed earlier. 4. Windshield Brackets The MadStad Quick-Release Brackets slide onto the black spools that are on the base bracket.
- Page 5 P a g e...
- Page 6 5. Windshield Installation A. Pre-install the Truss screws & washers into the windshield holes as shown in the image at right. B. Once all four of the screws are in place, gently guide the screws into the Well Nuts in the brackets until all four are set.
- Page 7 Pivot Screws The MadStad mount has a pivot screw on each set of brackets, located near the middle of brackets. A nylon lock nut keeps the screw in place, yet allows the brackets to slide back and forth. It is adjusted at the factory to have a minimum of play yet still allow the brackets to move.
