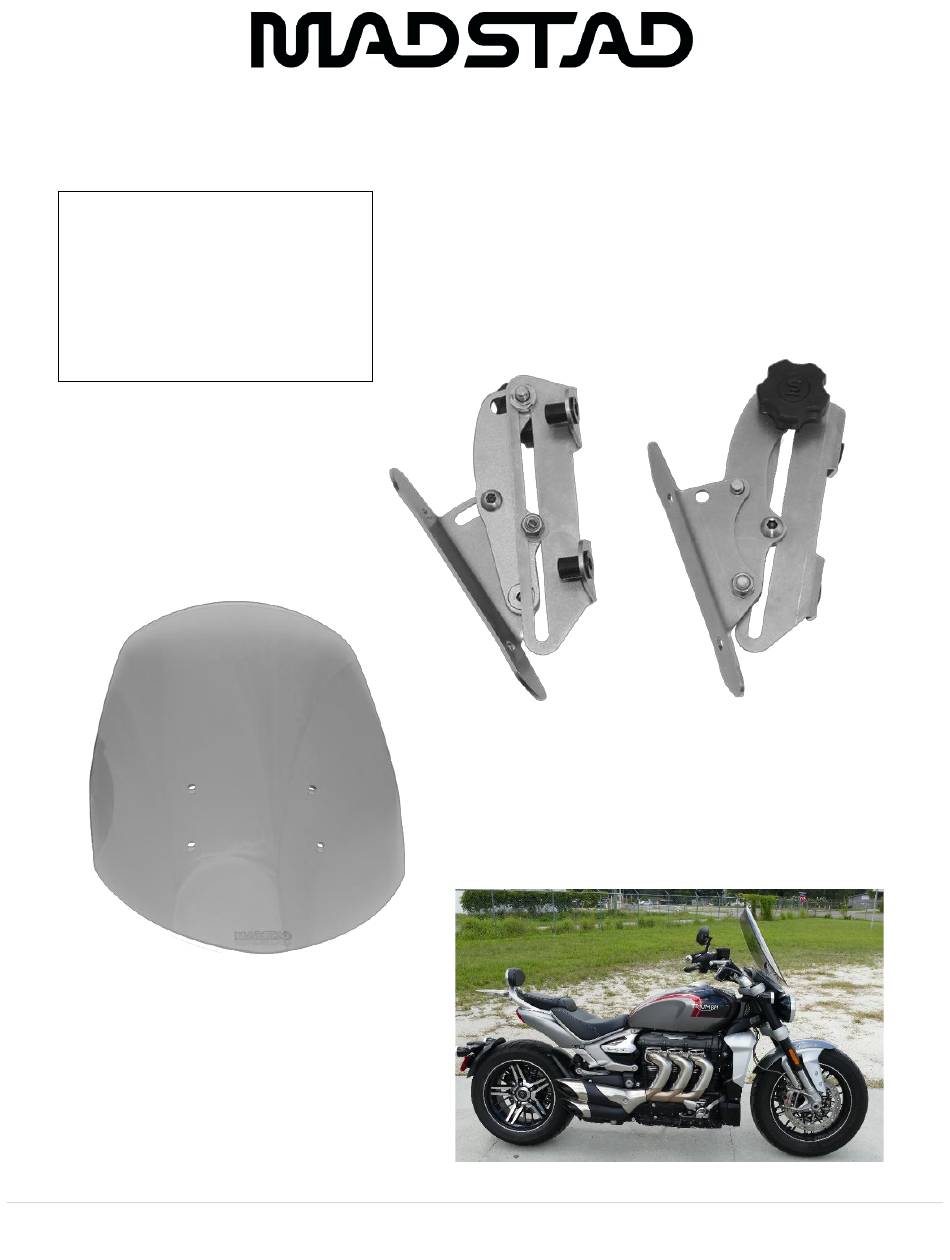

- Page 1 Triumph Rocket 3 GT (2020-Up) ** Please read this entire manual before proceeding with the installation ** (1) Pair of MadStad Brackets (10) M5 X 20 Truss Screws (4) #10 Plastic Flat Washers (4) M5 Soft Rubber Washers P a g e...
- Page 2 1. Factory Shield Removal Remove the four screws that hold the factory shield on the factory shield mounts. Then remove the factory shield. Next, remove the factory shield mounts by unscrewing the four screws that hold them on the mount plate. Keep the factory screws, they will be used in the next step.
- Page 3 3. Windshield Installation Pre-install the Truss screws & washers into the windshield holes as shown in the image below. B. Once all four of the screws are in place, gently guide the screws into the Well Nuts in the brackets until all four are set.
- Page 4 Adjustments You will have at least 2” of vertical travel and 20 degrees of angle to work with. We suggest setting the angle first, usually about the same angle as the forks on the bike. Loosening the knobs allows for adjustments. Take the bike out and test.
- Page 5 P a g e...
- Page 6 P a g e...
- Page 7 Pivot Screws The MadStad mount has a pivot screw on each set of brackets, located near the middle of brackets. A nylon lock nut keeps the screw in place, yet allows the brackets to slide back and forth. It is adjusted at the factory to have a minimum of play yet still allow the brackets to move.
- Page 8 MadStad Engineering, Inc. 1451 E. Jefferson St. Brooksville, FL 34601 352-848-3646 Web Site: http://www.madstad.com Email: support@madstad.com Thank you for your support, and ride safely! P a g e...
