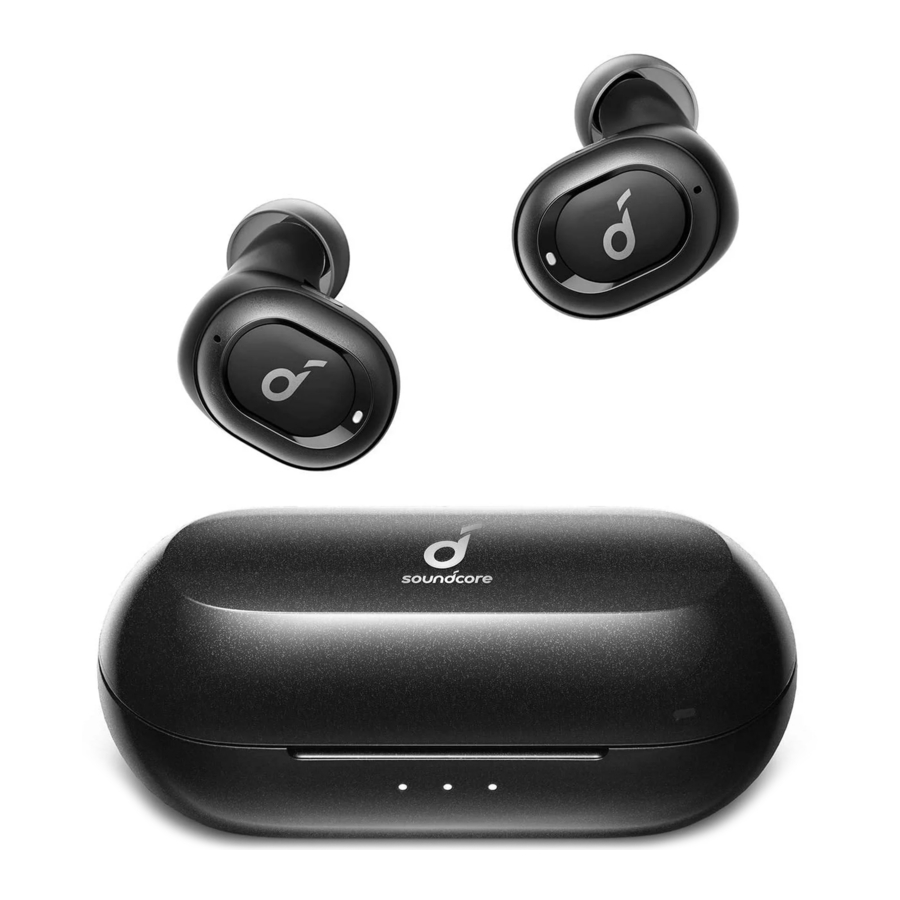

Soundcore Liberty Neo, A3911, A3911L, A3911R - Wireless Headphones Manual

What's in the box

At first glance

Wearing

Remove the film on the earbuds when taking them out of the charging case for the first time.

1. Choose the EarTips and jackets that fit your ears the best.
2. Insert the earbuds into the inner canal of your ears.
3. Turn to lock.

If all the jackets are too large, Soundcore Liberty Neo can be used without jackets.

Charging

Charge the charging case before using the earbuds for the first time. Place the earbuds in the charging case before you start charging.

Clean the charging pin on a regular basis to prevent connection issues. Open or close the charging case to activate the LED battery indicator on the charging case.

Earbud status indicator

	Flashing red (once every minute)	Low battery
	Steady white	Charging
Off		Fully charged
To preserve battery lifespan, fully charge at least once every 45 days.

Turn On / Off

1. The earbuds switch on automatically when taken out of the charging case. To manually switch on the earbuds, press and hold the multifunction button for 1 second until the indicator blinks white on both earbuds.


   ON

   Flashing white once (Earbud status indicator)

2. The earbuds switch off automatically when placed back in the charging case. To manually switch off the earbuds, press and hold the multifunction button on both the earbuds for 5 seconds until the LED indicator turns red.


   OFF	Flashing red once (Earbud status indicator)

Pairing

Bluetooth connection (Device)

Enter pairing mode when earbuds are switched on

	Rapidly flashing white	Pairing mode
	Slowly flashing white	Connected to a device

True Wireless Stereo connection (Earbuds)

Enter True Wireless Stereo pairing mode when earbuds are switched on.

	Rapidly flashing white (Right earbud) Flashing white (Left earbud)	True Wireless Stereo is connecting (The left earbud is connecting to the right earbud) but earbuds are not connected to your device
	Rapidly flashing white (Right earbud) Slow flashing white (Left earbud)	True Wireless Stereo connection is successful (The left earbud is connected to the right earbud) but earbuds are not connected to your device
	Slow flashing white (Both earbuds)	True Wireless Stereo connection is successful (The left earbud is connected to the right earbud) and earbuds are connected to your device

Controls

	Press	Play / pause
	Press and hold for 1 second (The multifunction button on the right earbud)	Next track
	Press and hold for 1 second (The multifunction button on the left earbud)	Previous track
	Control volume via the connected device	Volume up / down
	Press	Answer / End call
	Press and hold for 1 second	Reject call
	Press (The multifunction button on the right earbud)	Put current call on hold and answer incoming call
	Press and hold for 1 second (The multifunction button on the right earbud)	Switch between the held call and the active call
		Transfer a call between headphones and mobile phone
	Flashing white	On a call
	Flashing white	Incoming call
	Double click the multifunction button on either one of the earbuds	Activate Siri / other voice control software

Reset

Reset the earbuds if you can only hear sound on one side:

1. Open the Bluetooth list on your mobile device and delete "Soundcore Liberty Neo".
2. Take the earbuds out of the charging case, press and hold the multi-function button on both earbuds for 5 seconds until the LED indicator flashes pink, release the button when the LED indicator turns off.
3. Press and hold the multi-function button again on both earbuds for 8 seconds until the LED indicator flashes pink, then release the button when the LED indicator turns off.
4. Place the earbuds back to the charging case for resetting (Make sure charging case still has power), take the earbuds out of the charging case once the LED indicator on both earbuds turns solid white. Now the left earbud will automatically connect to the right earbud. The connection is successful if the left earbud flashes slowly and the right earbud flashes rapidly. If the connection was unsuccessful, place the earbuds back in the charging case and take them out again and repeat steps 2-4 until the connection is successful.
5. Open the Bluetooth menu on your mobile device, search for "Soundcore Liberty Neo".

Specifications

Specifications are subject to change without notice.
Earbud Input Rating	5 V 0.3 A
Charging Box Input Rating	5 V 1 A
Charging time	1.5 hours
Playtime (varies by volume level and content)	5 hours
Weight (product net weight)	51 g / 1.8 oz
Impedance	16 Ω
Driver (full range)	6 mm × 2
Frequency response	20 Hz - 20 KHz
Bluetooth version	V5.0
Range	10 m / 33 ft
