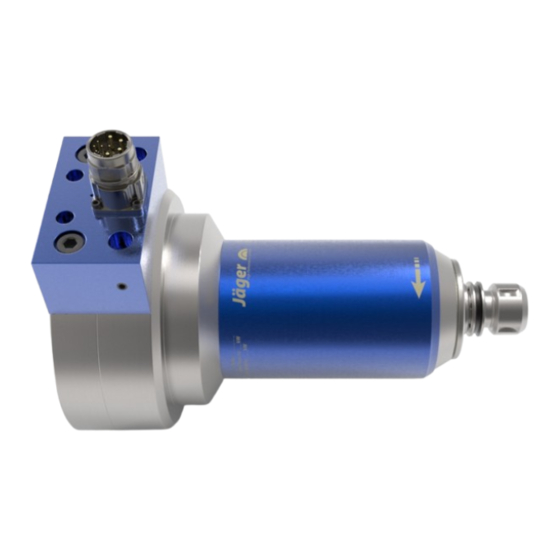

High Frequency Spindle
Pneumatic taper change

Advertisement

Table of Contents
loading

Summary of Contents for Jäger S80-K450.42 S5

  • Page 1 Manual S80-K450.42 S5 High Frequency Spindle Pneumatic taper change...
  • Page 2 Identification of HF spindle Spindle type Item no. Serial no. Spindle type Item no..Serial no. Pmax S6-60% S1-100% Rated rotation speed Power data As we always ensure that our HF spindles are at the cutting edge of techno- logical development, we reserve the right to make technical modifications and variations from the exact design described in the manual.
  • Page 3: Table Of Contents

    Contents: Translation of the original manual Diameter of media supply line ........ 23 Preliminary information  5 Cooling water.............. 24 Purpose of the manual ............ 5 8.5.1 Quality of cooling water........ 24 Explanation of symbols used ..........  5 8.5.2 Setting the cooling.......... 24 Transport and packaging  6 Compressed air..............
  • Page 4 Contents: 4 ( 40 ) Item no. 10504162, Revision 08...
  • Page 5: Preliminary Information

    Preliminary information Preliminary information The high frequency spindle (HF spindle) is a high quality precision tool for high speed machining. Purpose of the manual The manual is an important component of the HF spindle. Ü Store the manual carefully. Ü Make the manual available to all persons who work with the HF spindle.
  • Page 6: Transport And Packaging

    Transport and packaging Transport and packaging Avoid strong vibrations or impacts during transportation, as these could dam- age the ball bearings of the HF spindle. Ü Any damage reduces the accuracy of the HF spindle. Ü Any damage restricts the functionality of the HF spindle. Ü...
  • Page 7: Packaging Of Hf Spindle

    Designated use Packaging of HF spindle All transport packaging materials can be recycled in appropriate disposal facil- ities. Designated use The HF spindle is an “incomplete machine” in accordance with the Machinery Directive and cannot perform any function independently. The HF spindle can only be operated in conjunction with a machine tool and a frequency con- verter.
  • Page 8: Safety Instructions

    Safety instructions Safety instructions The high frequency spindle is a state of the art product and is safe to operate. However, the HF spindle may pose a risk in the following cases: If it is installed by untrained personnel. If it is used incorrectly. If it is not used in accordance with its intended use.
  • Page 9: Safe Working

    Safety instructions Note. Do not damage the HF spindle. Any damage reduces the accuracy of the HF spindle. Any damage restricts the functionality of the HF spindle. Any damage shortens the service life of the HF spindle. Safe working Observe all safety instructions set out in the manual, the applicable national accident prevention regulations, and the valid company work, operation, and safety guidelines.
  • Page 10: Shutdown Of Hf Spindle

    Safety instructions Ü Take the relevant measures to protect against splashes and spray accord- ing to the type of machining, the type of material being machined, and the type of tool selected. Ä Observe the manual of the machine in which the HF spindle is installed. Ü...
  • Page 11: Installation And Maintenance

    Safety instructions Installation and maintenance Ü Carry out installation, cleaning, and maintenance work only after shutting down the HF spindle and after the shaft has come to a standstill. Ü Install all safety and protective devices of the machine immediately after completing work.
  • Page 12: Technical Description Connections Of Hf Spindle

    Technical description Technical description Connections of HF spindle Electrical connection Cooling water G 1/4" Sealing air G 1/8" Taper cleaning G 1/8" Pneumatic system for tool change G 1/8" Electrical connection The HF spindle may only be operated with a frequency converter (FC). Ü...
  • Page 13: Cooling

    Technical description Note: Connect the SpeedTEC quick locking connector. For the combination SpeedTEC connector plug/SpeedTEC cable plug: Remove the O ring on the SpeedTEC connector plug. Cooling Liquid cooling keeps the HF spindle at a constant temperature during opera- tion. Note: Extension of the service life through heat dissipation.
  • Page 14: Technical Specifications

    Technical Specifications Technical Specifications Bearings Hybrid ball bearing (pcs) Lifetime lubricated maintenance free Power values Pmax./5s S6-60% S1-100% Liquid cooled Rated power [kW] Torque 1,08 0,75 0,73 [Nm] Voltage Current Motor data 3-phase asynchronous drive Motor technology (no brushes or sensors) Frequency 1.667 Hz Motor poles (pairs)
  • Page 15: Dimensions

    Technical Specifications Inner taper run out < 1 µ Axial run-out < 1 µ Dimensions Item no. 10504162, Revision 08 15 ( 40 )
  • Page 16: Technical Data Sheet (Kl 3035, Ac Motor)

    Technical Specifications Technical data sheet (KL 3035, AC motor) The power values (S1, S6, S2) Motor type 3/7-4 are valid for sinusoidal cur- Rated power 2,7 kW rents and voltages. The power values of the HF Rated rotation speed 50.000 rpm spindle are dependent on the Cooling Liquid cooled...
  • Page 17: Performance Diagram

    Technical Specifications Measured values: S2-Pmax./5 s Rated rotation speed 10.000 15.000 20.000 25.000 30.000 40.000 50.000 Speed 7.345 13.199 18.298 23.530 28.820 38.910 47.917 Frequency 1.000 1.333 1.667 Rated power 0,828 1,469 2,035 2,598 3,164 4,031 Torque 1,08 1,06 1,06 1,05 1,05 0,99...
  • Page 18: Wiring Diagram

    Technical Specifications Wiring diagram Note: Do not change the ex-works configuration. Any change may cause overvoltage on the electrical components (e.g. PTC, differential magneto resistor). grün-gelb 0,75 mm² green-yellow siehe Tabelle / see chart siehe Tabelle / see chart Stator Stator siehe Tabelle / see chart siehe Tabelle / see chart...
  • Page 19: Motor Protection Ptc 160°C

    Technical Specifications Motor protection PTC 160°C PTC thermistor with protective insulation Characteristic curves for rated response temperatures 90°C to 160°C in accor- dance with DIN VDE V 0898-1-401. Technical Specifications M135 Type = 0 … 40°C) V  Max. operating voltage 30 V –...
  • Page 20: Speed Sensor (Digital Differential Magneto Resistor)

    Technical Specifications Speed sensor (digital differential magneto resistor) Trouble-free evaluation requires good wiring. Ü Use twisted and shielded cables. Ü Connect the HF spindle based on the connection example shown below. Note: Resistor (Rx). If the resistor (Rx*) is already integrated in the evaluation unit (FC): Only connect signal and ground.
  • Page 21: Operating Location

    Operating location Operating location DANGER: Due to flying parts. If the HF spindle is incorrectly attached, it may come loose during operation and be flung away by the forces that occur. Clamp the HF spindle firmly. WARNING: Risk of injury due to flying parts. The HF spindle operates at high speeds which may cause chips to fly out with great force.
  • Page 22: Installation

    Installation Installation Before installation: Ü Check the HF spindle for damage and ensure that it is complete. If the HF spindle has been stored for a long period: Ü Carry out all steps in the Commissioning after storage section. Torque support DANGER: Due to ripped-off cables and lines.
  • Page 23: Installing The Hf Spindle

    Installation Installing the HF spindle Complete the following steps in sequence to install the HF spindle: Ü Remove the sealing plugs that protect the connections against damage and contamination during transportation. Ü Instead of these sealing plugs, install the appropriate hose fittings. Ü...
  • Page 24: Cooling Water

    Installation Cooling water 8.5.1 Quality of cooling water Distilled water causes immediate corrosion on bare parts, which is often unno- ticeable at first, but later leads to serious corrosion damage. Ü Do not use pure or distilled water. Deposits in cooling channels due to unsuitable cooling water prevent the dis- sipation of heat.
  • Page 25: Compressed Air

    Installation Compressed air 8.6.1 Air purity classes (ISO 8573-1) Class 3 Solid impurities Filter grade at least 5 µm for solids Class 4 Water content Max. pressure dew point +3 °C Class 3 Total oil content Max. oil content 1 mg/m 8.6.2 Setting the sealing air For guidelines on air quality,...
  • Page 26: Setting Values

    Commissioning 8.6.3 Setting values For guidelines on air quality, Ü Keep to the following values: see "Air purity classes (ISO Pneumatic system for tool change ≥ 6,0 bar 8573-1)  25]" section. Commissioning DANGER: Due to flying parts. If the speed is selected incorrectly, the HF spindle or the tool may be de- stroyed and their fragments may be flung out.
  • Page 27: Daily Start-Up

    Commissioning Daily start-up Proceed as follows to preheat the grease lubrication of the bearing and to protect it: Ü Operate the HF spindle with a clamped tool (without machining). Ä Approx. 2 minutes. Ä At maximum 50 % of the maximum permissible speed. (See Commissioning  26] section)
  • Page 28: Tool Change

    Tool change Tool change CAUTION: Danger of being drawn in by rotating shaft. If the shaft is still rotating, fingers and hands may be drawn in and crushed. Only change the tool if the shaft is at a standstill. Note: Ensure functionality. Never operate the HF spindle without a clamped tool shank.
  • Page 29: Changing The Tool

    Tool change 10.2.1 Changing the tool Note: Ensure concentric run-out quality. Only use tool mounts, clamping nuts, and clamping devices that are bal- anced according to DIN ISO 1940 balance grade G DIN ISO 1940. End face Clamping nut (optional accessory) Collet (optional accessory) Tool Holder...
  • Page 30: Tool Changing Station (Optional Accessory)

    Tool change 10.3 Tool changing station (optional accessory) During a tool change, the HF spindle moves into the changing station with the clamped tool. Ü Note the following values when producing the changing station in order to compensate for the ejection travel (X): Spring loaded X = 2 - 5 mm Spring force...
  • Page 31: Tools For High Speed Cutting

    Tools for high speed cutting Tools for high speed cutting DANGER: Due to flying parts. If the wrong direction of rotation is used, the tool is damaged when load is applied. The centrifugal forces cause the broken part to be flung out. Only use tools with the correct direction of rotation for the HF spindle.
  • Page 32: Maintenance

    Maintenance Maintenance Only specialist personnel may perform maintenance on the spindle. The HF spindle must be shut down before any maintenance work. Ü Make sure that the shaft of the HF spindle has come to an absolute stand- still. Ü Before carrying out any work, read the corresponding section of the man- ual carefully again.
  • Page 33: Every Time The Clamping Device Is Changed

    Maintenance 12.2.3 Every time the clamping device is changed Ü Clean the inner taper of the HF spindle shaft. The inner taper must be free of chips and contamination. Ü Clean the tool taper. Ü Clean the collet and the collet mount. Ü...
  • Page 34: Dismantling

    Dismantling Dismantling Proceed as follows to remove the HF spindle: Ü Completely disconnect the power supply. Ü Completely disconnect the media supply (air and liquid). Ü Make sure that the shaft of the HF spindle has come to an absolute stand- still.
  • Page 35: Service And Repairs

    Service and repairs Service and repairs DANGER: Electric shock. Electric shock can lead to severe burns and life-threatening injuries. Take measures to prevent hazards caused by electrical energy (for details re- fer e.g. to the regulations issued by the VDE and the local energy supply companies).
  • Page 36: Malfunctions

    Service and repairs 14.2 Malfunctions The list below can be used to quickly investigate and eliminate faults. HF spindle not rotating Cause Troubleshooting Check the frequency converter. Check the machine. Check all electrical connections. power supply Check all wires in the motor cable. Activate the Start/Reset button.
  • Page 37 Service and repairs HF spindle becomes loud Cause Troubleshooting Only use balanced tools. (Also see the "Tools for high speed cutting [} 31]" section.) Tool unsuitable Check the tool for damage. Replace damaged tool. HF spindle is not Only use spindle holders from the original accessories or clamped truly or is dis- holders produced according to the tolerances specified by torted...
  • Page 38 Service and repairs HF spindle vibrates/ Cause Troubleshooting oscillates Only use balanced tools. (Also see the "Tools for high speed cutting [} 31]" section.) Tool unsuitable Check whether the tool is suitable for the application. Check the tool for damage. Replace damaged tool. Remove all contamination between the tool taper and shaft of the HF spindle.
  • Page 39: Declaration Of Incorporation

    Tel. +49 (0) 60029123 -0 hereby declare that the product, Product High Frequency Spindle Type S80-K450.42 S5 Serial no. See last page of manual as far as possible from the supplied, complies with the essential requirements of the Machinery Directive 2006/42/EC.
  • Page 40 61239 Ober-Mörlen Norcross, GA 30071 GERMANY Nakanishi Jaeger YouTube channel Scan this QR code with any QR code +1 (770) 674-4480 +49 (0)6002-9123-0 scanner. sales@anakanishi-jaeger.com office@jaegerspindles.com www.nakanishi-jaeger.com www.nakanishi-jaeger.com/en Serial number Type S80-K450.42 S5 Item no. 10504162 Revision Date 01.09.2023 Language...
