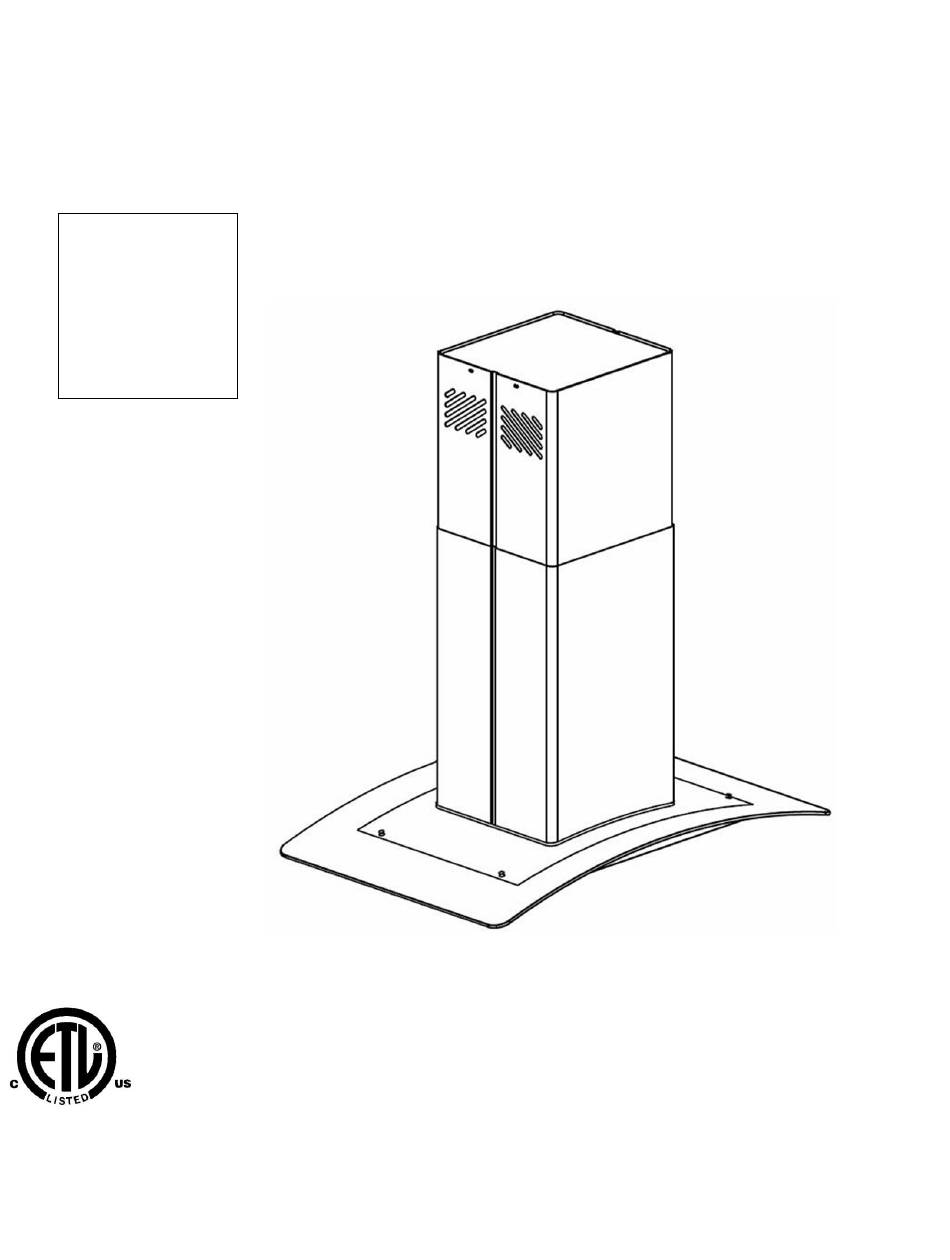

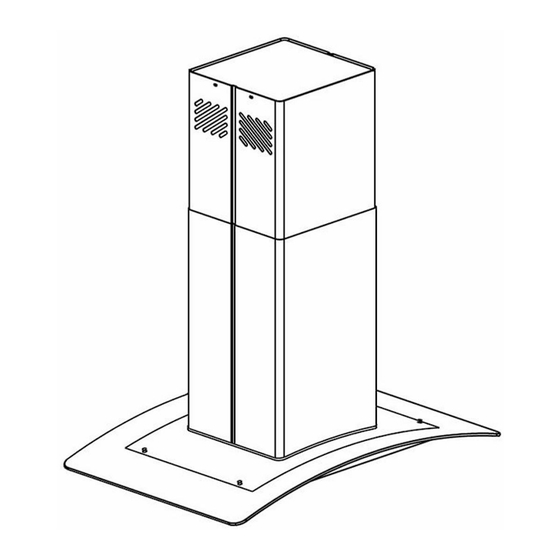

30"/36" ISLAND-MOUNT RANGE HOOD
Universal Installation Instructions and Use & Care Guide
Model:
HD-RH0257
HD-RH0258
9007
IMPORTANT: READ AND SAVE THESE INSTRUCTIONS.
FOR RESIDENTIAL USE ONLY.
Revised September 2014
Disclaimer: Item purchased may be slightly different from the manual.
For questions about features, operation/performance parts, accessories or service, call:
1-626-453-0550
1
Advertisement
Table of Contents
Related Manuals for AKDY HD-RH0257
Summary of Contents for AKDY HD-RH0257
- Page 1 30"/36" ISLAND-MOUNT RANGE HOOD Universal Installation Instructions and Use & Care Guide For questions about features, operation/performance parts, accessories or service, call: 1-626-453-0550 Model: HD-RH0257 HD-RH0258 9007 IMPORTANT: READ AND SAVE THESE INSTRUCTIONS. FOR RESIDENTIAL USE ONLY. Revised September 2014...
-
Page 2: Table Of Contents
TABLE OF CONTENTS RANGE HOOD SAFETY ..............2 INSTALLATION REQUIREMENTS ...........4 Tools and Parts Requirements ...........4 Location Requirements .............4 Installation Dimensions ............5 Venting Requirements ..............6 Electrical Requirements ............7 INSTALLATION INSTRUCTIONS ..........8 Prepare Location ..............8 Install Range Hood ..............13 Connect Vent System .............13 Complete Installation ..............13 RANGE HOOD USE .................15 Range Hood Controls ..............16... - Page 3 IMPORTANT SAFETY INSTRUCTIONS WARNING: WARNING: TO REDUCE THE RISK OF A RANGE TOP TO REDUCE THE RISK OF FIRE, ELECTRIC GREASE FIRE, READ THE FOLLOWING: SHOCK, OR INJURY TO PERSONS, READ THE FOLLOWING: Never leave surface units unattended at high settings. ■...
-
Page 4: Installation Requirements
INSTALLATION REQUIREMENT TOOLS AND PARTS REQUIREMENTS Electrical drill or ratchet driver 1/2” drill bit for drilling pilot holes 1 ¼” drill bit for drilling electrical wiring access hole. Screwdrivers: Philips & Straight blade Pliers Tape measure or ruler and pencil Electrical supplies for wiring Aluminum foils tape and/or duct tape Hammer... -
Page 5: Installation Dimensions
INSTALLATION DIMENSIONS A. Countertop height B. Hood height from ceiling to bottom of the range hood filter surface: D-A-C=B C. 29” (73.66 cm) min. from cooking surface, suggested 31” (78.74 cm) max. D. Ceiling height... -
Page 6: Venting Requirements
VENTILATION REQIUREMENTS Venting Method ■ Range hoods must be ventilated to the This canopy hood is factory set for through outdoors, except for non-vented (recirculating) installations. the roof or wall. ■ Do not ventilate the range hood into an A 6" (15.2 cm) round vent system is needed attic or other enclosed areas. -
Page 7: Electrical Requirements
Calculating Vent System ELECTRICAL Length REQIUREMENTS Observe all governing codes and ordinances. To calculate the length of the system you need, Ensure that the electrical installation is adequate add the equivalent feet (meters) for all vent and in conformance with the National Electrical pieces used in the system. -
Page 8: Installation Instructions
INSTALLATION INSTRUCTIONS PREPARE LOCATION Lay out the vent duct system before installing the range hood to determine the best routing for the vent ■ duct. It is recommended that the vent system be installed before the range hood is installed. ■... - Page 9 Complete Preparation Determine the required location for the home power supply cable and drill a ½" (1.3 cm) diameter hole for wire access. Run ½" (1.3 cm) conduit and wires or home power supply cable according to the National Electrical Code or CSA Standards and local codes and ordinances.
- Page 10 Install the mounting bracket to the ceiling with four wall anchors. 7. Remove all protective film from the chimney cover.
- Page 11 8. Install four lower support frame with M4*9 to the corners on top of the range hood. If you have a short ceiling, proceed step 8 then skip to step 11. 9. Install the upper support frame and adjust it to a suitable height for your ceiling.
- Page 12 10. Install the inner and outter chimney to the range hood.
-
Page 13: Install Range Hood
INSTALL RANGE HOOD Using 2 or more people lift the range hood assembly and attach it to the mounting bracket with M4*9. Excessive Weight Hazard Use two or more people to move and install range hood. Failure to do so can result in back or other injury. 2. -
Page 14: Complete Installation
COMPLETE INSTALLATION(FOR NON- VENTED(RECIRCULATING) INSTALLATION ONLY Step 1: Do not install exhaust pipe, remove the grease filters, locate the blower inside the hood Step 2: Attach the carbon filters to both sides of the blower Step 3: Twist the carbon filter until it is in the locking position Step 4: Reinstall the grease filters, reconnect the power. -
Page 15: Range Hood Use
RANGE HOOD USE The range hood is designed to remove smoke, vapors, and odors. For best results, start the hood before cooking. After, the cooking process is complete, allow the range hood to run for several minutes to completely clear all the smoke and odors from the kitchen. A. -
Page 16: Range Hood Controls
RANGE HOOD CONTROLS Operating the lights The On/Off light button controls both lights. Press once for on and again for off. Operating the blower The blower speed buttons turn the blower on and control the blower speed and sound level for quiet operation. -
Page 17: Range Hood Care
RANGE HOOD CARE Cleaning IMPORTANT: Clean the hood and grease filters frequently according to the following instructions. Replace panel filters before operating hood. Exterior Surfaces To avoid damage to the exterior surface, do not use steel wool or soap-filled scouring pads. Always wipe dry to avoid water marks. -
Page 18: Replacement
Non-Vented (recirculating) Installation Filters: The carbon filter is not washable. It should last up to 6 months with normal use. For replacement, please visit our website www.akdyusa.com Replacing the LED/Halogen light Turn off the range hood and allow the LED/Halogen to cool. To avoid damage or decreasing the life of the new bulb, do not touch bulb with bare fingers. -
Page 19: Trouble Shooting
TROUBLE SHOOTING Potential Effect of Potential Cause(s) Recommended Action(s) Failure Lamp does not turn Electronic Control a) Pressing any key the LCD lights up and does not work. Due to icons are in place? Over Voltage Yes, Proceed with the following diagnostic sequence No, Replace the control and user interface. - Page 20 5) Connect hood to power supply and verify. The blower is Filters are dirty 1) Verify that the grease and/or charcoal too noisy filters are clean. 2) If they are not clean change charcoal filter, or wash grease filter and verify. False contact in the During the hood 1) Open the control box removing the...
-
Page 21: Warrenty & Services
5. Cosmetic damage, including scratches, dents, chips or other damage to the finish of your major appliance, unless such damage results from defects in materials or workmanship and is reported to AKDY within 30 days from the date of purchase.
