Operation & Installation Instructions
LB4-Z1
LB4-Z1
SYSTEM
LB5-Z1
Rated Flow
Sediment
1st Filter
10"
2nd Filter
N/A
3rd Filter
N/A
illuminating technologies for life
LBH5-Z22
LUMINOR - Rack-Mount Systems
LB4-Z2
LB4-Z12
LB5-Z2
LB5-Z12
8.0 GPM
Sediment
Sediment
20"
10"
Carbon
N/A
20"
N/A
N/A
BLACKCOMB
OWNER'S MANUAL
LBH4-Z2
LBH4-Z12
LBH5-Z2
LBH5-Z12
Sediment
Sediment
20"
10"
Carbon
N/A
20"
N/A
N/A
LBH5-Z122
LBH4-Z22
LBH4-Z122
LBH5-Z22
LBH5-Z122
15.0 GPM
Sediment
Mesh
20"
strainer 10"
Carbon
Sediment
20"
20"
Carbon
N/A
20"
LBH4-Z222
LBH5-Z222
Sediment
20"
Scale
reduction 20"
Carbon
20"
Advertisement
Table of Contents
Related Manuals for Luminor BLACKCOMB LBH4-Z122
Summary of Contents for Luminor BLACKCOMB LBH4-Z122

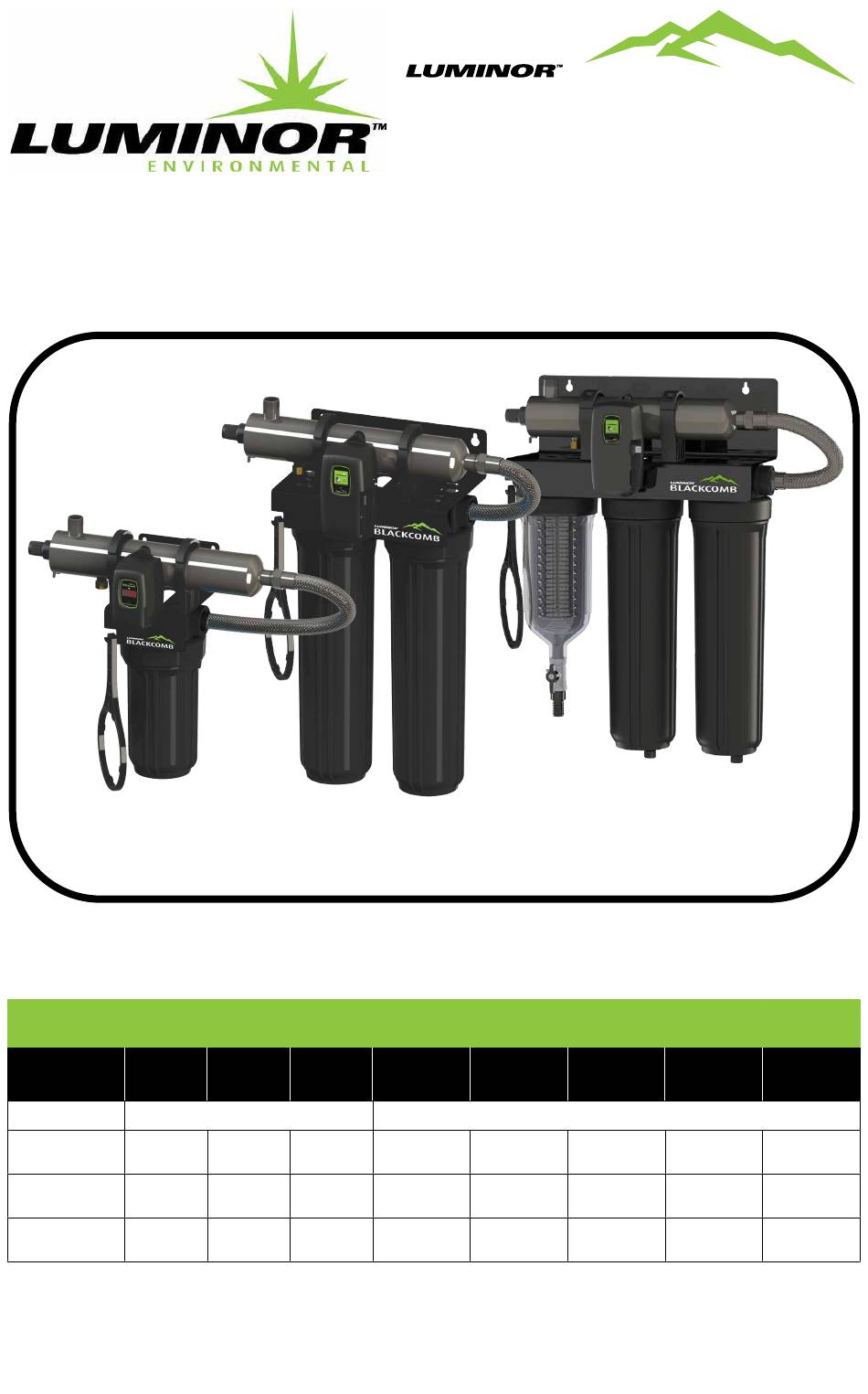

- Page 1 BLACKCOMB OWNER’S MANUAL Operation & Installation Instructions LB4-Z1 LBH5-Z22 LBH5-Z122 LUMINOR - Rack-Mount Systems LB4-Z1 LB4-Z2 LB4-Z12 LBH4-Z2 LBH4-Z12 LBH4-Z22 LBH4-Z122 LBH4-Z222 SYSTEM LB5-Z1 LB5-Z2 LB5-Z12 LBH5-Z2 LBH5-Z12 LBH5-Z22 LBH5-Z122 LBH5-Z222 Rated Flow 8.0 GPM 15.0 GPM Sediment Sediment Sediment...
- Page 2 Congratulations on purchasing this LUMINOR UV system. P a g e...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Safety Considerations ......................4 Before You Begin ........................ 5 Water Quality Parameters ....................5 Assembly ..........................6 Configuration Overview ...................... 7 System Sizing ........................8 Location ..........................8 Orientation ......................... 9 Installation ........................10 System Preparation ......................13 Cleaning the Quartz Sleeve .................... -
Page 4: Safety Considerations
Safety Considerations It is important that care is taken when operating and/or maintaining your system. Please read the instructions • The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction. -
Page 5: Before You Begin
80% for pre-treatment recommendations) You can have your water tested at a private analytical laboratory or by your local dealer. It is always recommended to install pre-filtration of at least 5 microns prior to a LUMINOR UV disin- fection system. -
Page 6: Assembly
Assembly The BLACKCOMB rack-mount UV system is designed as a do-it-yourself (DIY) system with a single inlet and outlet port. Unpack the system and ensure all the components are included in the box. Your system is shipped with the following components: P a g e... -
Page 7: Configuration Overview
Configuration Overview LB4-Z1 LBH5-Z22 LBH5-Z122 LBH5-Z222 P a g e... -
Page 8: System Sizing
System Sizing All LUMINOR UV systems are rated for a specific flow rate in water that meets the quality param- eters on page 5. PLEASE NOTE that increasing the flow above this rating or disinfecting water that does not meet the quality parameters will decrease the dose and therefore compromise the efficacy of the system. -
Page 9: Orientation
PLEASE NOTE: All LUMINOR UV disinfection systems are intended for indoor use only as they should not be exposed to the elements. A ground fault circuit interrupter (GFCI or GFI) outlet is required. Orientation This system has the ambidextrous capability of being able to have the main water inlet enter from either the left hand side or right hand side of the unit. -
Page 10: Installation
Installation Step 1: Once both the orientation and location have been selected, securely fasten the rack to a suitable back- ing. As the rack system is extremely heavy when filled with water, it is imperative that the rack be mounted with suitable fasteners for the particular installation. - Page 11 Figure 5. Cartridge Removal Step 9: Install the optional UV sensor (purchased separately). Align the flat portion so it faces the gland nut end and matches up with the half metal lip on the sensor port (see Figure 6). Insert the sensor so it is fully seated and hand tighten the sensor nut.
- Page 12 Figure 8a. Standard Output UV Figure 8b. High Output UV Lamp Connection Lamp Connection Step 12: Install the lamp key into the controller (BLACKCOMB , BLACKCOMB systems only). The key always comes packaged with the lamp and sits on the connector. With the key removed from the lamp, orient it so the label is upright and facing you.
-
Page 13: System Preparation
System Preparation With a new installation, or any time the UV system is shut down for service, without power, or is inoperative for any other reason, the lines in the home or facility could be contaminated. Use the following steps to prepare the lines throughout the entire home or facility. Step 1: Check for and remove any “dead ends”... -
Page 14: Cleaning The Uv Sensor
Cleaning the UV Sensor Depending on the water quality, the UV sensor may require periodic cleaning. At a minimum, the UV sensor should be cleaned on an annual basis. The following steps outline a basic cleaning procedure. Step 1: If a bypass assembly is installed, shut the inlet valve off to prevent water flow through the system. -
Page 15: Operation
If contamination is significant, the above steps may not be sufficient to fully clean the filter car- tridge. In this case: Step 1: Shut off water flow upstream and downstream of the system. Step 2: Open the drain valve and vent(s) to drain the water from the system. Step 3: Open the filter by unscrewing the sump from the head using the supplied wrench. -
Page 16: Blackcomb 4.1 Controllers
When the UV lamp is not on or the lamp life has expired, the LED will be illuminated red and an audible buzzer will be sounding. To remedy this condition, the UV lamp must be replaced with a new genuine LUMINOR UV lamp. LBH4 Series... -
Page 17: Blackcomb 5.1 Operational Screens
On systems without the UV monitor, the default screen shows the LUMINOR Home Screen. At any point during operation the user is able to scroll through the LUMINOR Home Screen, Lamp life remaining, QR Code, Contact Info and Maintenance Parts screens by pressing the button located on the front of the controller. -
Page 18: Lamp Countdown Sequence
cycles with red low audible chirp every audible chirp every constant audible UV screen 15 seconds 15 seconds alarm Lamp Countdown Sequence The system counts down the number of days until a lamp change is required. BLACKCOMB BLACKCOMB BLACKCOMB At thirty days remaining, the LED or display screen will change to a yellow caution indicator. At seven days remaining, the system will additionally repeat an audible chirp. -
Page 19: System Service Suggested
A QR code (Quick Response code) is a matrix barcode first designed for the automotive industry. LUMINOR uses the QR code to store a link to a spe- cific page on our website. Users with a camera phone equipped with the correct reader application can scan the image of the QR code and over a wireless network connect to a LUMINOR web page in the phone’s browser. -
Page 20: System Troubleshooting
System Troubleshooting Hard Alarms: The following give a constant audible alarm. If present, the solenoid valve is closed, and the 4-20, remote alarm and Wifi modules transmit the alarm. System Display Problem Resolution Reset lamp protection circuit -unplug unit for 10 seconds. The system has detected Replace the lamp with the a problem with the... -
Page 21: Temperature Management Devices
(minimum 20 minutes at a full boil) prior to consumption. Temperature Management Devices Your LUMINOR BLACKCOMB system is designed to run continuously to ensure optimal disinfec- tion . However, during periods when no water is drawn through the system, the energy from the disinfection process can cause the temperature of the water inside the chamber to rise. -
Page 22: Expansion Modules
Expansion Modules BLACKCOMB and BLACKCOMB controllers incorporate an “Infinite Expandability Port” (IEP) which allows for expansion to the UV sensor and all other modules. Each module (including the sensor) comes with both a male and female connection. Connect any device to the controller and all subsequent devices are then connected into the female end of last device added in a “daisy chain”... -
Page 23: Blackcomb Rack-Mount Uv System Specifications
BLACKCOMB Rack-Mount UV System Specifications LUMINOR EQUIPMENT SPECIFICATIONS RACK-MOUNT UV SYSTEMS LB4-Z1 LB4-Z2 LB4-Z12 LBH4-Z2 LBH4-Z12 LBH4-Z22 LBH4-Z122 LBH4-Z222 MODEL LB5-Z1 LB5-Z2 LB5-Z12 LBH5-Z2 LBH5-Z12 LBH5-Z22 LBH5-Z122 LBH5-Z222 8.0 GPM 15.0 GPM Flow Rate (30mJ/cm 30.3 lpm 56.8 lpm @ 95% UVT) 1.82 m... -
Page 24: Limited Warranty Statement
LUMINOR are subject to the warranty provided by the manufacturer of said products and not by LUMINOR’s warranty. LUMINOR will not be liable for damage or wear to products caused by abnormal operating conditions, accident, abuse, misuse, unauthorized alteration or repair, or if the product was not installed in accordance with LUMINOR’s printed... -
Page 25: Warranty Registration
Please refer to LUMINOR’s Privacy Policy statement at luminoruv.com/privacy-policy for further information. For Parts and Service Call LUMINOR Environmental Inc. - Page 26 2 6 | P a g e...
- Page 27 2 7 | P a g e...
- Page 28 illuminating technologies for life 80 Southgate Drive, Unit 4 Guelph, Ontario, CANADA N1G 4P5 P: 519-837-3800 TF: 855-837-3801 F: 519-837-3808 info@luminoruv.com www.luminoruv.com PN: 910114 REV A / 08-23...
