Summary of Contents for Feider Machines Fm20V115

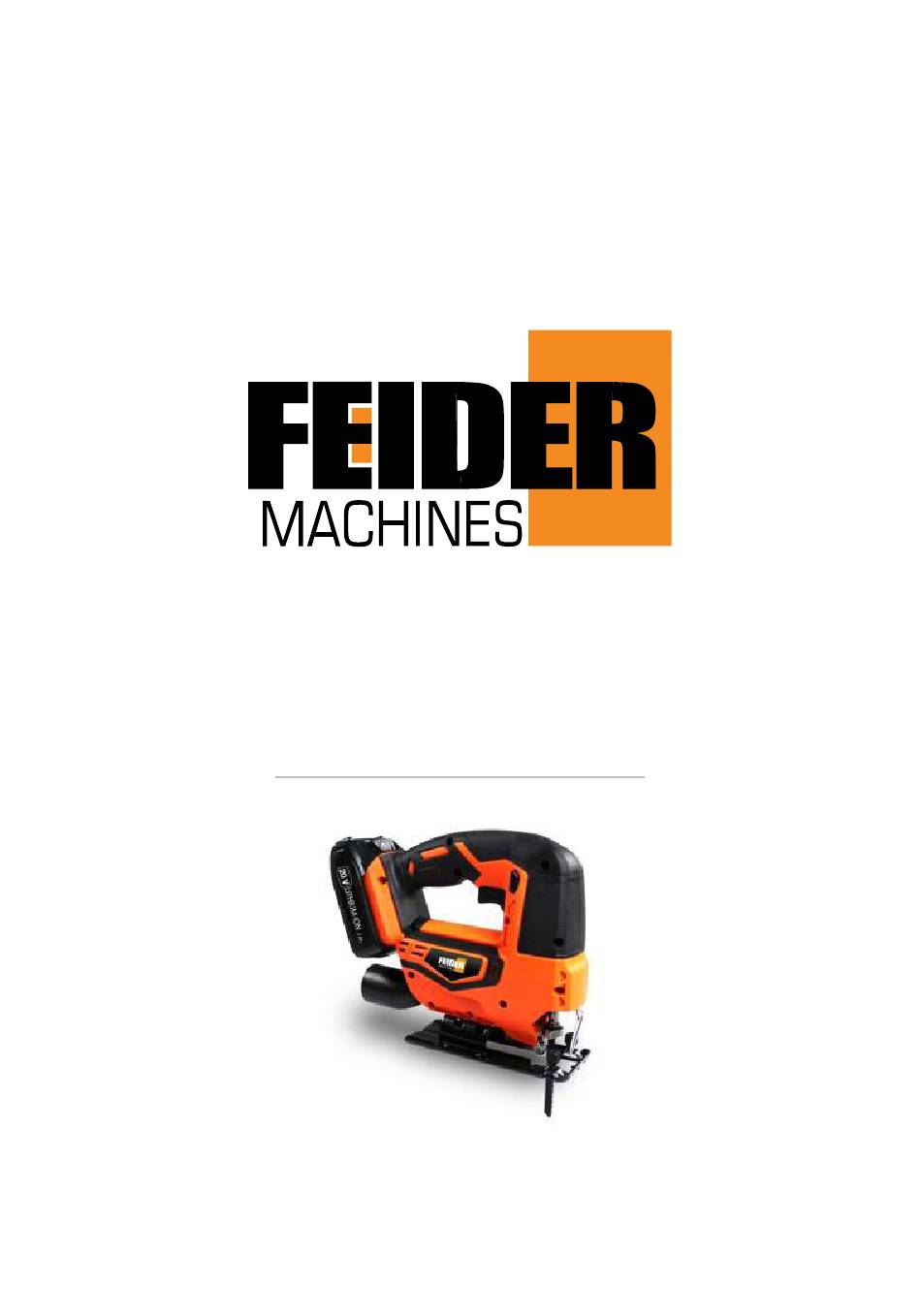

- Page 1 ORIGINAL INSTRUCTIONS Instruction Manual CORDLESS JIG SAW FSS20V １...
- Page 2 CAUTION: READ THIS INSTRUCTION MANUAL BEFORE USE THIS MACHINE BUILDER SAS 32, rue Aristide Bergès -ZI 31270 Cugnaux –France MADE IN PRC 2019 １...
-
Page 3: Safety Instructions
1. SAFETY INSTRUCTIONS WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 4 b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position connecting to power source and/or battery pack, picking up or carrying the tool.
- Page 5 key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jeweler. Keep your hair, clothing and gloves away from moving parts.
- Page 6 d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. ３...
- Page 7 Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
-
Page 8: Your Product
2. YOUR PRODUCT a. Description ５... - Page 9 1. Lock-off button 2. ON/OFF trigger 3. Handle 4. Battery release catch ( not in package) 5. Li-on battery ( not in package) 6. Dust extraction outlet 7. Wood cutting saw blade 8. Forward/rear air outlet ON/OFF 9. Angle scale 10.
- Page 10 b. Technical specifications voltage 20 Vdc No load speed 0-2500/min Blade type T type blade Max cut in wood (mm) Max cut in steel (mm) Cutting angle / 30 LpA=76dB(A), Sound pressure level K=5dB(A) LwA=87dB(A), Sound power level K=5dB(A) Cutting board 6.28m/s , K=1.5 m/s Cutting steel metal...
- Page 11 3.UTILISATION...
- Page 12 ７...
- Page 13 a. Charging 1). Take the battery pack out of the equipment. Do this by pressing the side pushlock buttons. 2). Check that your mains voltage is the same as that marked on the rating plate of the battery charger. Insert the power plug of the charger into the socket outlet. The RED LED will then begin to light.
- Page 14 All 4 LEDs are lit: The battery is fully charged. 3 LED(s) are lit: The battery has approx 75% remaining charge. 2 LED(s) are lit: The battery has approx 50% remaining charge. 1 LED is lit: The battery will be empty soon, please recharge the battery. b.
- Page 15 ８...
-
Page 16: Installing The Battery Pack
c. INSTALLING JIGSAW Selecting the correct type of blade is important in order to obtain the best performance from the saw. Select the blade based on the application and on the material you wish to cut. Selecting the right blade will give you a smoother, faster cut and prolong the life of the blade. -
Page 17: Variable Speed Control
g. VARIABLE SPEED CONTROL Simply apply light pressure to the trigger to start the jigsaw on a slow speed. Increasing the pressure on the trigger will increase the speed of the jigsaw. Note: You might hear a high pitched noise from the trigger during use. Do not be concerned;... -
Page 18: General Cutting
ORBITAL MOTION The blade of the jigsaw cuts in an orbital motion. This feature is adjustable and provides faster, more efficient cutting. With orbital motion the blade cuts through your work in the upstroke but does not drag across your work in the down stroke. The higher settings should be used when fast cutting in soft material is desired. - Page 19 by wiping frequently with an oily cloth. Use extreme caution in disposing of oily cloth after completion of job to prevent potential fire hazard. m. FORWARD/REAR AIR OUTLET The forward air outlet can be used to either blow debris from the blade during operation or send the air to the dust extraction outlet.
-
Page 20: Circle Cutting
slide the switch to the left, Fig 14. n. CIRCLE CUTTING When starting a cut from the center of the work piece, drill a 12mm diameter hole to ensure that there is enough clearance for the blade. When cutting materials with a decorative or polished finish cover either the base of the jigsaw or the surface of the material being cut with masking or other suitable tape to prevent scratching. - Page 21 not exceed 50◦c. Put it out of the reach of children. 4. DISPOSAL Electrical products should not be discarded with household products. According to the European Directive 2012/19/EU on waste electrical and electronic equipment and its implementation into national law, electrical products used must be collected separately and disposed of at collection points provided for this purpose.
- Page 22 １１...
- Page 23 5. DECLARATION DE CONFORMITY BUILDER SAS ZI, 32 rue Aristide Bergès – 31270 Cugnaux – France Declare that the following machine: Cordless jig saw FSS20V Serial number: 20191260136-20191260435 Is in conformity with the Directive Machine 2006/42/EC and with the regulation transposing it Also in conformity with the following Directives: EMC Directive 2014/30/UE...
- Page 24 Responsible of the technical file: Mr Patriarca Cugnaux, 11/11/2019 Philippe MARIE / PDG １２...
