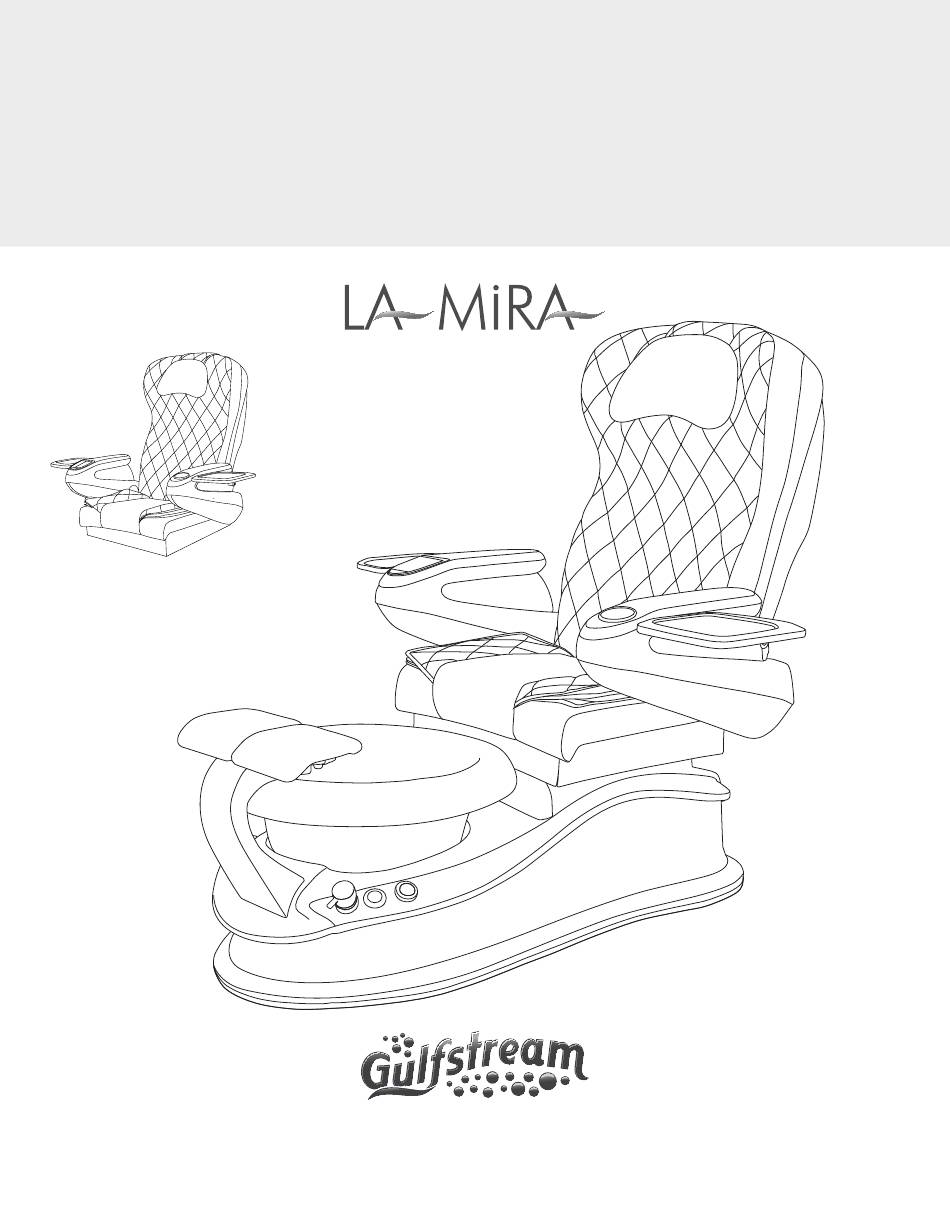

OWNER MANUAL
PLEASE SAVE THIS MANUAL
FOR FUTURE REFERENCE

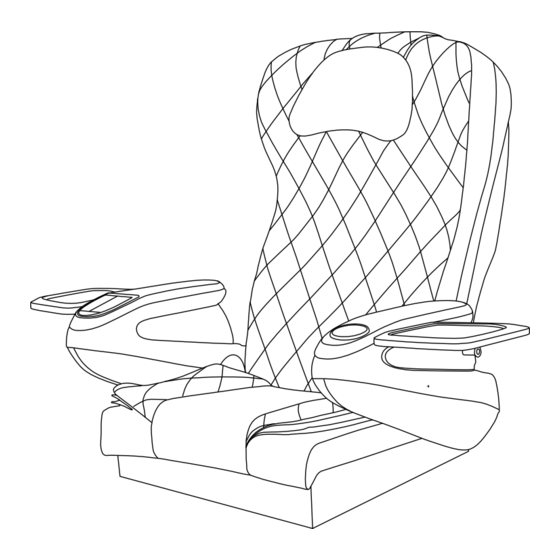

Chair 9660
®
®
IDJET
, La Mira
, Gulfstream Inc.
are trademarks of Gulfstream Inc.
™
Patent #D709619, #8726430, #8680699, #D701318, #8662848, #8531048, #8366418, #D670938, #D670354, #D662340, #D660444,
#D650084, #D646082, #D636090, #D632798, #D628704, #D615326, #D613099, #D612509, #D610697, #D600950, #D596883, #D596882,
#D590188, #D589285, #D588844, #D583960, #D583576, #D583171, #D565739, #D556480, #7111334, #6991182
© 2021 All rights reserved. Design and Specifications are subject to change without notice.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Gulfstream La Mira 9660
Summary of Contents for Gulfstream La Mira 9660
- Page 1 ® IDJET , La Mira , Gulfstream Inc. are trademarks of Gulfstream Inc. ™ Patent #D709619, #8726430, #8680699, #D701318, #8662848, #8531048, #8366418, #D670938, #D670354, #D662340, #D660444, #D650084, #D646082, #D636090, #D632798, #D628704, #D615326, #D613099, #D612509, #D610697, #D600950, #D596883, #D596882, #D590188, #D589285, #D588844, #D583960, #D583576, #D583171, #D565739, #D556480, #7111334, #6991182...
-
Page 2: Table Of Contents
Table of Contents Owner Manual Safety and Precautions ..................1-2 Identifying Parts....................3-4 Foot-Spa Clearance ................... 5 INSTALLATIONS Attaching Seat ....................6 IDJET Assembly ....................7-8 Plumbing Connections ..................9-10 Operations and Use ................... 11-12 Cleaning & Maintenance ..................13-14 Warranty &... -
Page 3: Safety And Precautions
SAFETY & PRECAUTION Thank you for purchasing the La Mira Spa from Gulfstream Inc. Please carefully read the instructions before install- ing the spa. Carefully follow the instructions and your spa will give you years of beauty and service. This product is to be connected to a branch circuit outlet protected by a Class A GROUND FAULT CIRCUIT INTERRUPTER (GFCI), and the GFCI shall be tested regularly for continued protection and correct operation. - Page 4 SAFETY & PRECAUTION GROUNDING METHODS Because this unit must be connected to a circuit with a ground-fault circuit interrupter (GFCI), DO NOT use a grounding adapter. The use of a grounding adapter is prohibited in Canada by Part I of the Canadian Electrical Code. GROUNDING INSTRUCTIONS This appliance must be plugged into an outlet equipped with a ground-fault circuit interrupter.
-
Page 5: Identifying Parts
IDENTIFY YOUR FOOT-SPA Back Front 10 9 1. Chair Remote Control 2. Headrest Pillow 3. Back Cushion & Massage 4. Seat Cushion 5. Wooden Armrest 6. Flip-up Manicure Tray 7. Glass Bowl Chair Forward/Backward Auxiliary Button 9. Jet Control (ON/OFF) 10. - Page 6 IDENTIFY YOUR FOOT-SPA SEAT OPERATION Reclining 25° Armrest can be raised up/down Manicure tray can be folded up/down Chair Sliding SPA DIMENSION Width of Seat 46” Height of Chair (with Trays) 42” Width of Seat 31” (with Arms) Seat Height 9.5” (with Frame) Width of Seat 22”...
-
Page 7: Foot-Spa Clearance
FOOT-SPA CLEARANCE WALL CLEARANCE Wall 20" Minimum 36’’ Distance from center drain to the back of the spa TYPICAL FOOT-SPAS Center Center 60’’ Foot-spa #2 Foot-spa #1 16’’ 16’’ 16’’ 16’’ 28’’ Clearance 60’’ 30’’ 30’’... -
Page 8: Attaching Seat
INSTALLATIONS Attaching The Seat to The Base Align the seat with the pre-drilled holes on the base then tightly secure with the nuts and bolts provided. Attach trays or remote stand to armrest with screws provided. -
Page 9: Installations
INSTALLATIONS IDJET Unit Removal To remove the jet unit from tub/bowl. To remove the jet unit components. Turn the Cap counter-clockwise in the arrow direction IDJET Unit Components Jet Mount located on tub/bowl wall Ceramic Nest Wall Screws Jet Body Impeller Jet Mount To install the IDJET unit. - Page 10 INSTALLATIONS Poly Liner Installation Poly Liner Installation Fit elastic edge over bowl rim and form liner to bowl contours as shown in the Fig.1 Jet Mount Fixed to Motor Behind Align the impeller unit and shoe onto the Jet Mount. Soft Plastic Liner as shown in Fig.2 on the Glass Bowl...
-
Page 11: Plumbing Connections
INSTALLATIONS Plumbing Connections 1. Discharge pump may be connected to an existing sink drain or floor drain. It can also pump up to 7 ft. high, but this will increase the length of the drain time. The drain connection is at the rear of the unit by a 1/2” fitting. 2. - Page 12 INSTALLATIONS Typical Discharge Pump Installation Wall GFI Outlet Required Standard Check Valve with pump. Existing Drain Pipe 20" Minimum Existing 3/8” Hot & Cold Water Supply *Backwater valve optional. 3/8” Hot & Cold Hoses Floor Typical Gravity Sink (Direct Drain) Wall Installation GFI Outlet Required...
-
Page 13: Operations And Use
OPERATIONS & USE Control Panel Control Panel (Left and Right Side) Discharge Pump Switch (Optional) Chair Forward/Backward Auxiliary Button Jet Control (ON/OFF) Drain Control Water Mixer Control 1. To fill water: The foot-spa is provided with a single hot and cold mixing valve located on the front of your spa. This is a pressure balance valve that requires you to lift the handle to start the water flow and to adjust to the temperature that is desired. - Page 14 OPERATIONS & USE Shiatsu Remote Control Please refer to instruction manual for operations 9621 9660 A conveniently located auxiliary button to help the technician move LED Trim Remote the customer's seat (LED Light with wireless remote back/forward easily. are optional.)
-
Page 15: Cleaning & Maintenance
The use of oil based products can build up in the whirlpool system, causing clogging in the jets. Adherence to the above cleaning will minimize build up. Gulfstream Inc. does not recommend the use of mineral oil based products. TESTING/FLUSHING FOOT SPA After the foot spa has been installed, fill tub with water just above the jets. - Page 16 CLEANING & MAINTENANCE& USE Cleaning The Jet (Step by Step) Warning IDJET® - Do not run without the jet being completely submerged in water. This will void your warranty IDJET Components Impeller 1. Pull Jet off from the Jet Mount in the pedicure bowl.
-
Page 17: Warranty & Service
8. Each service call from the customer will be assigned a Claim Number. The Claim Number will stay open until the problem is resolved. No dealer or other person has any authority to bind Gulfstream Inc. to changes or additions to this warranty or its products. Accordingly, Gulfstream Inc. Is not responsible for such warranties or representations. - Page 18 ® ® IDJET , Gulfstream Inc. are trademarks of Gulfstream Inc. La Mira™ Patent #D709619, #8726430, #8680699, #D701318, #8662848, #8531048, #8366418, #D670938, #D670354, #D662340, #D660444, #D650084, #D646082, #D636090, #D632798, #D628704, #D615326, #D613099, #D612509, #D610697, #D600950, #D596883, #D596882, #D590188, #D589285, #D588844, #D583960, #D583576, #D583171, #D565739, #D556480, #7111334, #6991182...
