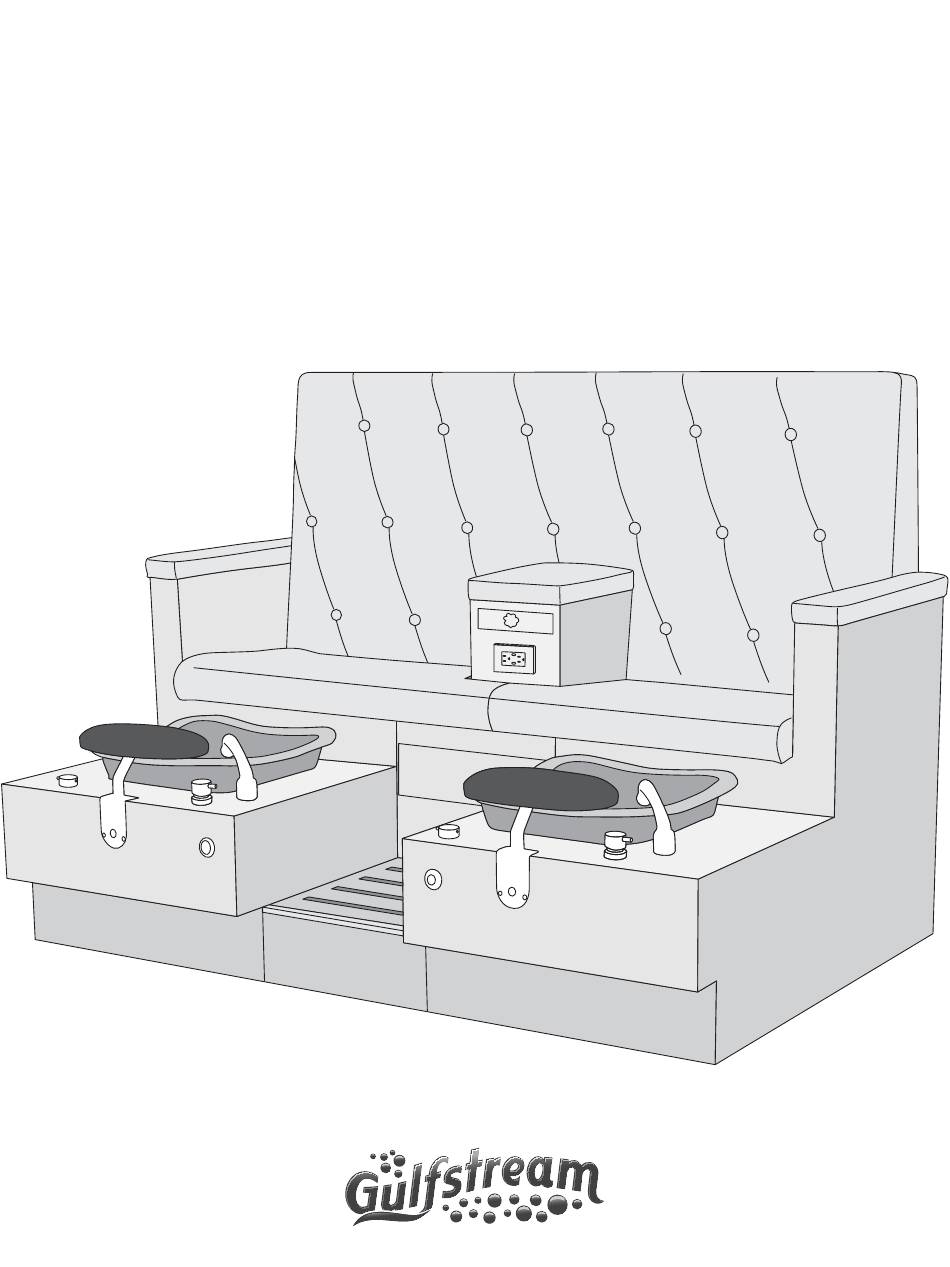

- Page 1 SINGLE, DOUBLE, TRIPLE VIENNA BENCH ASSEMBLY INSTRUCTIONS © 2017 All rights reserved. Design and Specifications are subject to change without notice.
- Page 2 VIENNA BENCH ASSEMBLY INSTRUCTIONS Included Hardware for Double Bench 2” Bolt T-Nuts ³⁄8 Bolt Allen Key (Quantity: 15) (Quantity: 3) (Quantity: 35) (Quantity: 1) 3 extra 3 extra Important Safety Instructions Obey the following warnings: • Keep by standards and children away from the product you are assembling at all times.
- Page 3 VIENNA BENCH ASSEMBLY INSTRUCTIONS Position unit 2 into correct area and attach unit 1 and 3.
- Page 4 VIENNA BENCH ASSEMBLY INSTRUCTIONS Easy access for plumbing with the removable toe kick.
- Page 5 VIENNA BENCH ASSEMBLY INSTRUCTIONS 2” 2” Bolt Bolt The hardware to install units is found in the storage drawer (7). Six 2” bolts are needed to install (1) and (2). 2” bolts go from sink side to step. T nuts on inside.
- Page 6 VIENNA BENCH ASSEMBLY INSTRUCTIONS 2” Bolt Install the final side (1-2) and (3) on Vienna Bench to the center console.
- Page 7 VIENNA BENCH ASSEMBLY INSTRUCTIONS Check front fully assembled and secure.
- Page 8 VIENNA BENCH ASSEMBLY INSTRUCTIONS Place (4) the backrest to (1), (2) and (3) units. The hardware to install units is found in the storage drawer (7).
- Page 9 VIENNA BENCH ASSEMBLY INSTRUCTIONS ³⁄8 ” Bolt Attach (4) backrest to (1), (2) and (3), with 32 bolts for a double unit and 15 for a single unit (2 ³⁄8” bolts). The hardware to install units is found in the storage drawer (7).
- Page 10 VIENNA BENCH ASSEMBLY INSTRUCTIONS The massage wire on Vienna Seats must be fed through hole on (1A) and (3A). The massage wires found under the seats (5) and (6). The seats are velcroed, so make sure it is attached properly and securely.
- Page 11 VIENNA BENCH ASSEMBLY INSTRUCTIONS The electrical components to be hooked up in accordance with the owners manual.
- Page 12 Manufacturer of Luxurious Pedicure Spas, High Quality Salon and Spa Furniture. Gulfstream Inc. Cambridge, Ontario, Canada N1R 5X5 Tel.: 519-622-0950 Fax: 519-622-6926 © 2014 All rights reserved. Design and Specifications are subject to change without notice.
