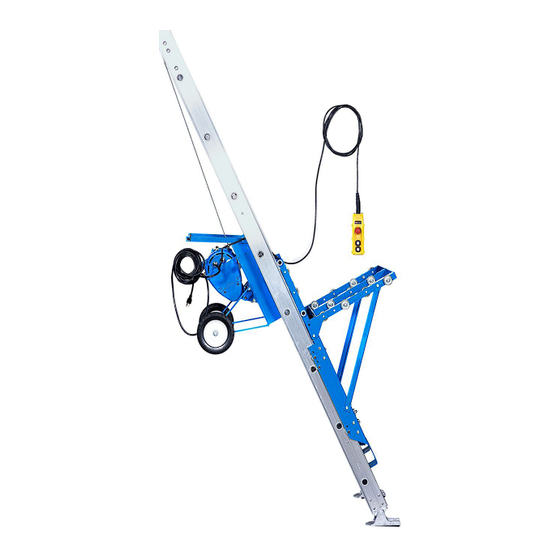

- Page 1 Operator’s Manual EH-500 Electric Material Hoist Patent (10,961,092) info@safetyhoistcompany.com • (610) 941-4333 • www.safetyhoistcompany.com...
-
Page 2: Table Of Contents
GENERAL SAFETY INSTRUCTIONS .................................2 SAFE OPERATION ..........................................3 SPECIFICATIONS ..........................................4 HEIGHT CHART ..........................................5 HOW TO ASSEMBLE YOUR HOIST ................................6-8 HOW TO OPERATE YOUR HOIST ................................9-10 PARTS LIST ..........................................11-18 MOTOR RECOMMENDATIONS ..................................19 SAFETY HOIST COMPANY - LIMITED WARRANTY ..........................20 info@safetyhoistcompany.com • (610) 941-4333 • www.safetyhoistcompany.com... -
Page 3: General Recommendations & Advice
Operator’s Manual EH-500 Electric Material Hoist GENERAL RECOMMENDATIONS AND ADVICE EVERY TIME A SAFETY HOIST IS SET UP FOR OPERATION YOU MUST: 1. REMEMBER THAT THE HOIST TRACK IS NOT A LADDER! IF USED AS A LADDER INJURY MAY OCCUR. -
Page 4: General Safety Instructions
Operator’s Manual EH-500 Electric Material Hoist GENERAL SAFETY INSTRUCTIONS The safety instructions and warnings in this section and throughout this manual must be read carefully before assembling or operating the hoist. These safety instructions and warnings are not substitutes for routine accident prevention measures which must also be immplemented to eliminate potential risks and hazards. -
Page 5: Safe Operation
Operator’s Manual EH-500 Electric Material Hoist SAFE OPERATION HAZARD! - DO NOT PLACE OR USE THIS MATERIAL HOIST IN AN AREA WHERE IT COULD COME IN CONTACT WITH ELECTRICAL WIRING CIRCUITS OR ANY OTHER HAZARDOUS OBSTRUCTION. PROPER INSTRUCTIONS DO NOT ALLOW ANYONE TO OPERATE THE HOIST WHO HAS NOT BEEN PROPERLY AND THOROUGHLY TRAINED IN ITS OPERATION AND USE. -
Page 6: Specifications
Operator’s Manual EH-500 Electric Material Hoist SPECIFICATIONS 1. ONE (1) - Power Unit (hoist bolted on motor base) 2. ONE (1) -Power cord with screw connection 3. ONE (1) - Pendant with screw connection 4. ONE (1) - Carriage with 1/2” bolt, washers and lock nut ( bolt assembled on carriage) 5. -
Page 7: Height Chart
Operator’s Manual EH-500 Electric Material Hoist HOIST HEIGHT CHART HEIGHT TO MAXIMUM HOIST LENGTH "C" BEARING POINT "A" HORIZONTAL DISTANCE "B" 10 ft. 2 ft. 6 in. 12 ft. 14 ft. 3 ft. 6 in. 16 ft. 18 ft. 4 ft. 6 in. -
Page 8: How To Assemble Your Hoist
Operator’s Manual EH-500 Electric Material Hoist HOW TO ASSEMBLE YOUR HOIST 1. Unpack ALL parts of the hoist and lay them flat on the ground See page 4 for specifications of included parts and materials. 2. Lay the base track section on the ground with the rung short-side facing down. - Page 9 Operator’s Manual EH-500 Electric Material Hoist HOW TO ASSEMBLE YOUR HOIST Continued 6. Slide the peak assembly (VH-B) onto the end of the track - Secure it with two (2) 3/8” x 3/4” carriage bolts and lock nuts. The square holes are off-set, the side with the yellow sticker should be facing up.
- Page 10 Operator’s Manual EH-500 Electric Material Hoist HOW TO ASSEMBLE YOUR HOIST Continued 11. Attach the thimble on the cable to the back of the carriage using the 1/2 - 13 x 1.5 bolt washer thimble washer nut. SEE FIGURE 8.
-
Page 11: How To Operate Your Hoist
Operator’s Manual EH-500 Electric Material Hoist HOW TO OPERATE YOUR HOIST THE OPERATOR OF THE HOIST MUST WEAR ALL OF THE NECCESSARY PROTECTIVE GEAR WHICH SHOULD INCLUDE FOOT, HAND, EYE AND HEAD PROTECTION. KEEP HANDS AWAY FROM ALL MOVING PARTS AT ALL TIMES. - Page 12 Operator’s Manual EH-500 Electric Material Hoist HOW TO OPERATE YOUR HOIST Continued 5. Return carriage assembly to base position. You can begin loading the carriage with material at this time. - DO NOT EXCEED THE HOIST WEIGHT LIMIT! 6. Press the UP button on the pendant to start the winch and launch carriage into its upwards travel.
-
Page 13: Parts List
Operator’s Manual EH-500 Electric Material Hoist BASE ASSEMBLY - NG-D-E100 BASE A SSEMBLY N G-‐D-‐E100 ITEM PART NUMBER DESCRIPTION QTY. NG-D-E101 BASE WELDMENT HD-D403 WHEEL .625 CAP NUT .625 CAP NUT NG-D-E106 BRACKET, HOIST ELECTRIC HOIST... - Page 14 Operator’s Manual EH-500 Electric Material Hoist CARRIAGE ASSEMBLY COMPLETE - HD-C ITEM NO. PART NUMBER DESCRIPTION QTY. HD-C054 CARRIAGE TROLLEY HD-C053 CARRIAGE DECK HD-C052 CARRIAGE FLAP HD-C050 BUSHING HD-C040 CARRIAGE SUPPORT ARM .375-16 X 1.25 LG HHCS .375-16 X 1.25 LG HHCS .375-16 LN...
- Page 15 Operator’s Manual EH-500 Electric Material Hoist CARRIAGE DECK - HD-C053 ITEM NO. PART NUMBER DESCRIPTION QTY. HD-C031 CARRIAGE DECK WELDMENT ASSY HD-C037 CARRIAGE SKATE WHEEL 0.25-20 X 1.5 LG HHCS 1/4-20 X 1.5 LG HHCS .25-20 LN 1/4-20 LOCKNUT info@safetyhoistcompany.com •...
- Page 16 Operator’s Manual EH-500 Electric Material Hoist CARRIAGE FLAP - HD-C052 ITEM PART NUMBER DESCRIPTION NO. . 1 HD-C032 FLAP WELDMENT 1 2 HD-C037 CARRIAGE SKATE WHEEL 4 3 0.25-20 X 1.5 LG HHCS 1/4-20 X 1.5 LG HHCS 4 4 ...
- Page 17 Operator’s Manual EH-500 Electric Material Hoist CARRIAGE TROLLEY - HD-C054 SEE NEXT PAGE FOR CARRIAGE TROLLEY PART NUMBERS info@safetyhoistcompany.com • (610) 941-4333 • www.safetyhoistcompany.com • 15...
- Page 18 Operator’s Manual EH-500 Electric Material Hoist CARRIAGE TROLLEY - HD-C054 TROLLEY ASSEMBLY HD-C054 Continued ITEM PART NUMBER DESCRIPTION NO. . 1 HD-C030 TROLLEY FRAME 1 2 HD-C033 CARRIAGE PULLEY BRACKET 1 3 .375-16 X 2.75 LG HHCS 3/8-16 X 2.75 LG HHCS ...
- Page 19 Operator’s Manual EH-500 Electric Material Hoist PEAK ASSEMBLY - HD-B PEAK ASSEMBLY HD-B ITEM PART NUMBER DESCRIPTION NO. . 1 HD-B010 PEAK WELDMENT 1 2 HD-B011 PULLEY SUPPORT 1 3 HD-B012 PULLEY 1 4 0.5-13 X 3.75 LG HHCS 1/2-13 X 3.75 LG HHCS ...
- Page 20 Operator’s Manual EH-500 Electric Material Hoist VH-300 CAPACITY HEAVY DUTY MATERIAL HOIST PART # DESCRIPTION VH-300 Material hoist, Briggs & Stratton engine, 26.5’ complete VH-300H Material hoist, Honda engine, 26.5’ complete MH8GH Gravel hopper MH9SB Support brace MH123C Unloading ramp...
-
Page 21: Motor Recommendations
Operator’s Manual EH-500 Electric Material Hoist info@safetyhoistcompany.com • (610) 941-4333 • www.safetyhoistcompany.com • 19... -
Page 22: Safety Hoist Company - Limited Warranty
Safety Hoist Company shall be relieved of its performance of the duties under this warranty if any damage has been caused to the product as a result of misuse, abuse, failure to maintain the equipment or Act of God.
