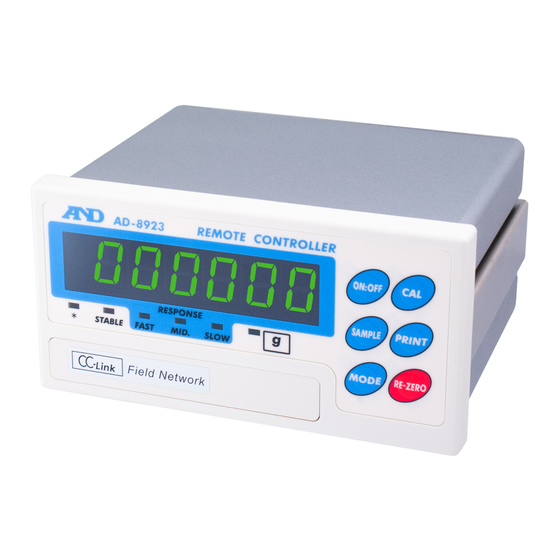

A&D AD-8923-CC Instruction Manual

Hide thumbs Also See for AD-8923-CC:
Table of Contents

Advertisement

Quick Links

Download this manual
1WMPD4002124D

Advertisement

Table of Contents
loading

Related Manuals for A&D AD-8923-CC

Summary of Contents for A&D AD-8923-CC

  • Page 1 1WMPD4002124D...
  • Page 2 © 2010 A&D Company Ltd. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, or translated into any language in any form by any means without the written permission of A&D Company Ltd. The contents of this manual and the specifications of the instrument covered by this manual are subject to change for improvement without notice.

  • Page 3: Table Of Contents

    2.1. Display ............................8 2.2. Keys ..............................8 2.3. Connectors ............................. 8 CONNECTION ......................... 9 3.1. Setting the weighing instrument and the AD-8923-CC ..............9 3.2. Connecting the cables ........................9 3.3. Turning the power on ........................12 3.4. Operation ............................13 3.5.

  • Page 4: Introduction

    1. INTRODUCTION This manual describes how the AD-8923-CC remote controller works and how to get the most out of it in terms of performance. Read this manual thoroughly before using the AD-8923-CC and keep it at hand for future reference.

  • Page 5: Applicable Instruments

    1.2. Applicable Instruments The AD-8923-CC functions in two ways as follows, depending on the weighing instrument used: A remote controller that displays the weighing data and remotely controls the weighing instrument. A remote display that displays the weighing data. Available key operations depend on the weighing instrument used. (Refer to “Table 2”) For weighing instruments not listed in this table, please refer to the A&D website.
  • Page 6 Note 1) Switching the standby or weighing mode is available for the AD-4212C/D/F. Note 2) Not available for the counting mode or percent mode. Note 3) Not available for the AD-4212A/B. Note 4) For weighing instruments other than AD-4212C/D/F, the AD-8923-CC displays " ". Use the display on the balance.

  • Page 7: Description Of Each Part

    Rear View Connector operation lever 1 pc. AC adapter 1 pc. Note When the AD-8923-CC is to be built into a weighing system, be sure to ground the FG terminal. AD adapter ID label Please confirm that the AC adapter type is...

  • Page 8: Display

    Displays the weighing data received. When the unit is “g” (gram), the unit indicator turns on. If the balance outputs RS-232C weighing data that exceeds six digits, the AD-8923-CC does not display the high-end digits. (2 highest digits for an 8 digit display) Weight value of the CC-link is output even if it exceeds six digits.

  • Page 9: Connection

    3. CONNECTION 3.1. Setting the weighing instrument and the AD-8923-CC Set the following items so that the weighing instrument and the AD-8923-CC have the same value for each item. Item Weighing instrument AD-8923-CC Baud rate 600, 1200, 2400*, 4800, 9600, 19200 bps...
  • Page 10 Connection example for the CC-Link network (weighing instruments No.1 through No.4) Connect a terminating resistor only to the stations at each end of the network. CC-Link master station AD-8923-CC AD-8923-CC AD-8923-CC AD-8923-CC (Ground) Weighing AD-4212C AD-4212C AD-4212C AD-4212C instrument No. 1 No.
  • Page 11 When connecting the AD-8923-CC to the CC-Link network using the connector provided (721- 105/037-000 equivalent), use the ferrule listed below (sold separately). (Example: When using the FANC-110SBH cable) Insert the cable into the ferrule and crimp it using the Variocrimp4 206-204 crimping jig, and insert it into the connector.

  • Page 12: Turning The Power On

    Compatible models: AD-4212C/D/F, FZ, FX, GX-A, GF-A, GX-M, GF-M, GX-L, GF-L, HR-AZ, HR-A When the external 24-VDC power supply is used Connect an external 24-VDC power supply to the DC input terminal located on the rear of the AD-8923-CC. Precautions on using the external power supply CAUTION Use a power supply within the rated voltage range (24 VDC±10%).

  • Page 13: Operation

    Cable connection CAUTION Before inserting the power line, make sure that the power to the AD-8923-CC is turned off. (1) Inserting the power line DC input terminal Press down the release button on the DC input terminal using a screwdriver and AD-8923-CC rear insert the power line.

  • Page 14: Performing Sensitivity Adjustment With The Ad-4212C/F

    3.5. Performing Sensitivity Adjustment with the AD-4212C/F The following is the sensitivity adjustment procedure when the AD-4212C/F is connected. (An external weight is used.) Caution Do not allow vibration, drafts or temperature change to affect the AD-4212C during sensitivity adjustment. Caution on using an external weight The accuracy of the weight can influence the accuracy of weighing.
  • Page 15 Sensitivity adjustment procedure Performs sensitivity adjustment with the AD-4212C using an external weight. Operation 1. Warm up the AD-4212C for 30 minutes or more with nothing on the pan. RESPONSE STABLE FAST MID. SLOW 2. Press the CAL key. is displayed. Press If you want to cancel sensitivity adjustment, press the CAL key.

  • Page 16: Function Setting

    4. FUNCTION SETTING Function setting specifies the AD-8923-CC performance. The parameters are stored in non-volatile memory, and are maintained even if the power line or AC adapter is removed. The function setting menu consists of two layers. The first layer is the “Class” and the second layer is the “Item”.

  • Page 17: Display And Keys

    4.1. Display and keys The STABLE indicator turns on to indicate that the parameter displayed is in effect. Selects a class or item. Changes the parameter. When a class is displayed, moves to an item in the class. When an item is displayed, stores the new parameter and displays the next class. When an item is displayed, cancels the new parameter and displays the next class.

  • Page 18: Initializing The Ad-8923-Cc

    4.3. Initializing the AD-8923-CC Initialization restores the function settings of the AD-8923-CC to factory settings. Operation 1. Turn the power on. or weighing mode display appears. While holding down ON:OFF 2. While holding down the ON:OFF key, press PRINT Press the PRINT key.

  • Page 19: Rs-232C Connector

    (CTS) Input Used internally (Va) − Used internally Inch screw (The AD-8923-CC is a DTE device. (#4-40UNC) Connect to a DCE device such as the weighing instruments using a straight To the weighing instrument through cable.) Note When the user prepares a cable, do not connect to the pins that are used internally.

  • Page 20: Cc-Link Connector

    6. CC-LINK CONNECTOR The AD-8923-CC CC-Link is a remote device station of CC-Link ver.1.10. When a CC-Link is used, the AD-8923-CC can be controlled by the PLC remote I/O or remote registers. So, the program can be simple. And connection to a PLC is simple, thus, a weighing system can be built easily. The setting values of CC-Link are changed in the function setting 6.1.
  • Page 21 Memory map Remote register (Number of occupied stations: 1) Blank “Name” column: internally reserved (not used). AD-8923-CC  Master station Master station  AD-8923-CC Remote Buffer Remote Buffer Name Name register memory register memory RWr0000 RWw0000 Weight value* RWr0001 RWw0001...
  • Page 22 Remote I O (Number of occupied stations: 1) Blank “Name” column: internally reserved (not used). AD-8923-CC  Master station Master station  AD-8923-CC Remote Buffer Remote Buffer Name Name input memory output memory RX0000 RY0000 Re-zero State flag of RX0001...
  • Page 23 Writing is prohibited in the internally reserved areas. Writing in the remote output (RY) and the remote register (RWw) of the internally reserved areas may cause the AD-8923-CC to malfunction. Values of the remote input (RX) and the remote register (RWr) of the internally reserved areas are not fixed.
  • Page 24 State flag of sensitivity adjustment progress * RX0003 Data state Data waiting Data acquiring State flag of response characteristic * RX000D RX000C RX000B State of response characteristic FAST SLOW Re-zero/Tare Sets the weighing instrument to zero. When the remote I/O register turns on (1), re-zeroing is performed. * Can only be used when connected to the AD-4212C/D/F.

  • Page 25: Timing Chart

    Below examples are when the station number is set to 1. When connecting to a power supply When the AD-8923-CC is connected to a power supply and the CC-Link is ready, the request flag of initialization (RX0018) becomes active. The master station confirms that RX0018 is active, performs initialization and turns the reply flag of initialization (RY0018) ON.
  • Page 26 CPU operation The CPU normal operation (RX0006) is a signal to check that the AD-8923-CC is connected to a power supply and it functions normally. During normal operation, the signal is reversed at an interval of 0.5 to 1 second.

  • Page 27: Fixing The Decimal Point Position

    Even if the minimum display is switched using the SAMPLE key, the digits of the weight values output via CC-Link align with each other. If the balance outputs RS-232C weighing data that exceeds six digits, the AD-8923-CC does not display the high-end digits (it outputs to the CC-Link).

  • Page 28: Sensitivity Adjustment With The Ad-4212C/F Using The Register Of The Cc-Link

    The following describes the sensitivity adjustment procedure using the register of the CC-Link when connecting the AD-8923-CC to the AD-4212C/F. (Using an external weight) * Only AD-8923-CC software versions P2.05 or later are compatible with this function. * When performing sensitivity adjustment using the key operation, refer to “3.5.

  • Page 29: Troubleshooting

    Check if the communication settings are correct. Check if the cables are the correct type and are not damaged. Electrical noise may cause this symptom. The display flickers. Ground the FG terminal located on the rear of the AD-8923-CC.

  • Page 30: Specifications

    8. SPECIFICATIONS Power supply External 24-VDC power supply (24 VDC±10%/700mA) or C adapter (Output: 12 VDC/1A) Please confirm that the AC adapter type is correct for your local voltage and receptacle type. Transmission system CC-Link (CC-Link ver.1.10 remote device station), RS-232C Communications connector : D-Sub 9-pin (male) (RS-232C connector to the weighing instrument)

  • Page 31: External Dimensions

    9. EXTERNAL DIMENSIONS AD-8923 REMOTE CONTROLLER ON:OFF Panel cutout dimensions SAMPLE PRINT RESPONSE STABLE FAST MID. SLOW MODE RE-ZERO Panel cutout dimensions when panel mounted Unit: mm...
  • Page 32 MEMO...
  • Page 33 MEMO...
  • Page 34 MEMO...
  • Page 35 THIS PAGE INTENTIONALLY LEFT BLANK...
  • Page 36 1. Back cover: A&D Global A&D Company, Limited 3-23-14 Higashi-Ikebukuro, Toshima-ku, Tokyo 170-0013, JAPAN Telephone: [81] (3) 5391-6132 Fax: [81] (3) 5391-1566 A&D ENGINEERING, INC. 47747 Warm Springs Blvd, Fremont, California 94539, U.S.A. Tel: [1] (800) 726-3364 Weighing Support:[1] (888) 726-5931 Inspection Support:[1] (855) 332-8815 A&D INSTRUMENTS LIMITED Unit 24/26 Blacklands Way, Abingdon Business Park, Abingdon, Oxfordshire OX14 1DY United Kingdom...
