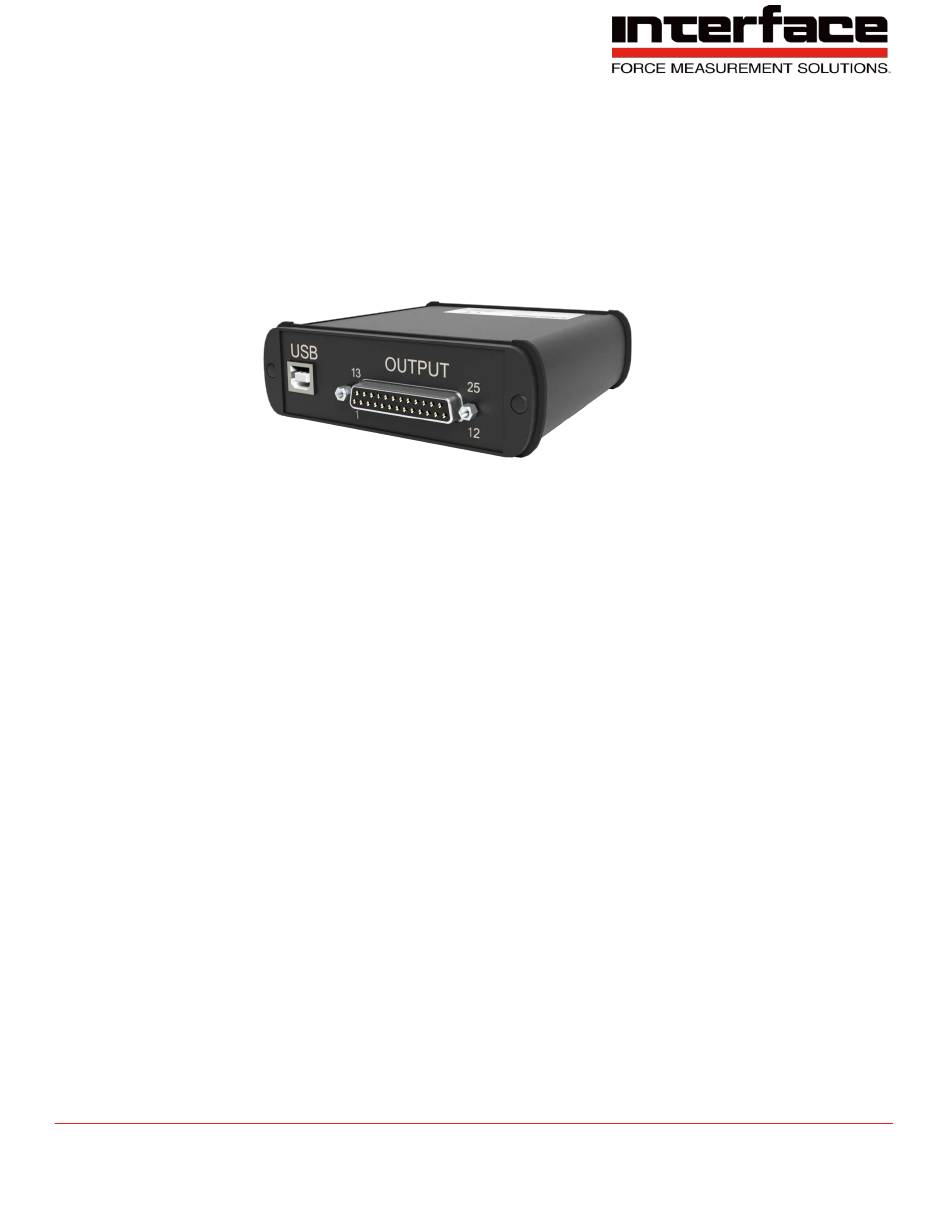

- Page 1 BSC4D Quickstart Guide BSC4D Quickstart Guide 7418 East Helm Drive • Scottsdale, Arizona 85260 • 480.948.5555 • www.interfaceforce.com Page 1 of 10...

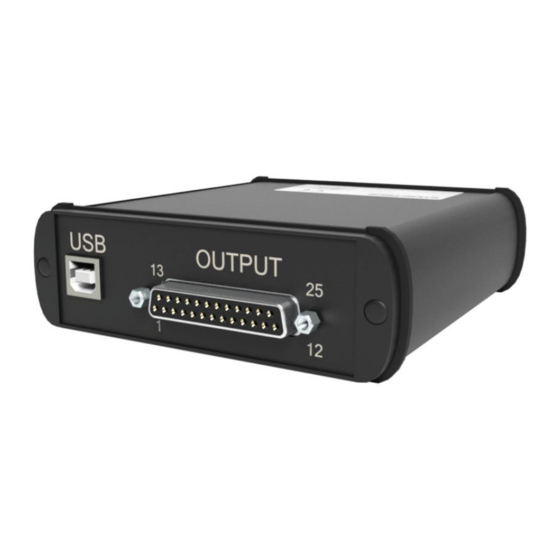

- Page 2 BSC4D Quickstart Guide Introduction • The BSC4D Amplifier takes up to 4 Independent Inputs and turns those signals into a digital output. • 4 independent channels • For use with model 3AXX series 3-axis load cells or multiple load cells •...
- Page 3 BSC4D Quickstart Guide 7418 East Helm Drive • Scottsdale, Arizona 85260 • 480.948.5555 • www.interfaceforce.com Page 3 of 10...
-
Page 4: Com Ports
MUST restart your computer. 3. Attach the amplifier to the PC using the supplied USB A-B cable. BSC4D drivers were installed with the BlueDAQ software and Windows will automatically load them. BSC4 drivers must be installed as described below and are located on the USB Drive or www.interfaceforce.com... - Page 5 BSC4D Quickstart Guide Adding a Single Channel 1. Run BlueDAQ from the start menu. After the program launches click “ADD CHANNEL” 2. In the Add Channel dialog box 2.1. Click Devicetype drop-down and select BSC4 2.2. Click the Device dropdown box and select the device, select the COM Port (See Device Manager if unknown) and open the correct amount of input channels (First = 1 and Last = total # of channels for device).
- Page 6 3. Each channel must now be scaled using the “SCALING” dialog box. Each channel must be scaled independently. If the BSC4D was purchased with Interface load cells and a System Setup and Scaling then the scaling values will be taken from the “Load Cell / BSC4D Multi-Channel Digital PC Interface And Data Acquisition Instrument Calibration Certificate”...
- Page 7 BSC4D Quickstart Guide Example scaling a channel using model WMC-100 load cell with 100 lbf capacity and 1.9587 mV/V output. After entering the values into the dialog box you must click “Calculate” and then “OK/Set”. Measurement and Recording 1. Click Set All Zero before measuring 2.
- Page 8 BSC4D Quickstart Guide 4. Click Start Measuring Recording Options are available. 7418 East Helm Drive • Scottsdale, Arizona 85260 • 480.948.5555 • www.interfaceforce.com Page 8 of 10...
- Page 9 BSC4D Quickstart Guide 5. Recorder Tab, measurements of all Axis. 6. Value Display shows values in each Axis. 7418 East Helm Drive • Scottsdale, Arizona 85260 • 480.948.5555 • www.interfaceforce.com Page 9 of 10...
-
Page 10: Warranty
All instrument products from Interface Inc., ('Interface') are warranted against defective material and workmanship for a period of (1) one year from the date of dispatch. If the 'Interface' product you purchase appears to have a defect in material or workmanship or fails during normal use within the period, please contact your Distributor, who will assist you in resolving the problem.
